China Factory Mini Water Well Drilling Rig Shallow Well Drills

=== Base Info ===

=== Description ===
2.Vertical SpindleSpindle rotating speed64/128/287/557r/minSpindle stroke450mm3.HoistMax. single line lifting capacity2400kgReel lifting speed1.64m/sSteel wire rope diameter13mmSteel wire rope capacity35mHug floodgate diameter245mmHug floodgate belt width70mmMovable distance400mm4. Mud pumpTypeBW-160TypeHorizontal Single Cylinder with double functionMax. DischargeDiesel engine 170L/min  /Electrical Motor 140L/minMax. Pressure3MPaWork Pressure1.5MPa5. PowerDiesel engine22HPElectric Motor15KW 6. Drilling towerTypeIntegrated on drilling rigControl systemHydraulic7. Trailer chassisType4 wheelsChina factory mini water well drilling rig shallow well drills Pictrures:

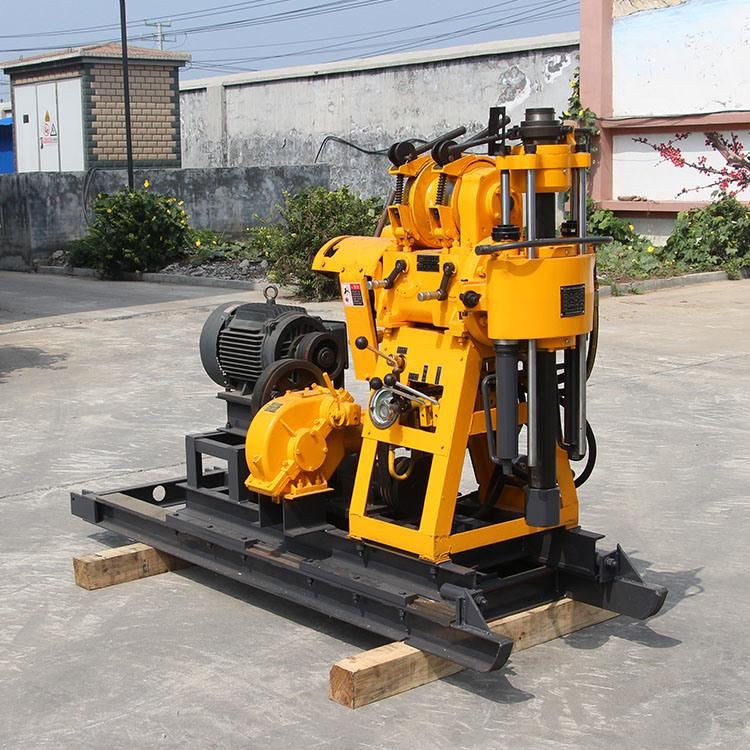

China factory mini water well drilling rig shallow well drills

We also produce other models and types. Pls feel free to contact Kelly from any enquiry about the drilling machines.
