High Efficiency Multi- Purpose Core Drilling Machine (HGY-1000)

=== Base Info ===

=== Description ===

Basic Info.

Model NO. HGY-1000 Core Drilling Rig Drill Hole Depth 1000m Bit Type Diamond Bit Drilling Way Rotary Quality High Quality Stability Good Chuck Hydraulic Chuck Dimensions 2400X1020X1765mm Usage Ore, Water Well, Coal Type Core Drilling Rig Transport Package in Plywood Case Specification 1000 Trademark FLYDISC Origin Changsha City, Hunan Province, China HS Code 8430691900 Production Capacity 30 Sets/Month

Product Description

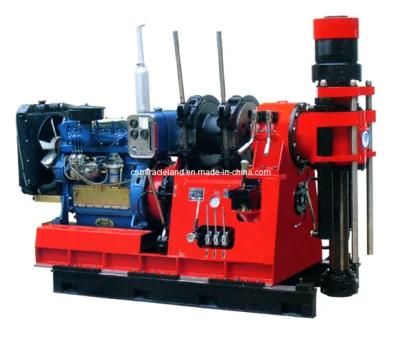

HGY-1000 Core Drilling Rig:

Drilling depth(m): 1000;
Spindle Stroke(mm): 600;
Spindle lifting power max. (KN): 80;
Spindle driving force max. (KN): 60;
Oil pump type: CB-F32C-FL;

Product Features:

Compact in structure and light weight.
High reliability, good performance and durability.
Common auto parts, such as clutch and declutch structure, transmission case and shiftine structure.
Easy operation and high efficiency with Synchronizer for shifting while the rig is Running.
Suitable to wide range of rotation inner dia. 95mm.
Be attached to the tower.

Product Application:

It is widely used in the construction of the projects e. g. Prospecting, railway, road, port, bridge, water conservancy and hydropower, tunnel, well, industrial and civil construction, geological exploration, large diameter boring pile and small diameter diamond core deep hole drilling, etc.

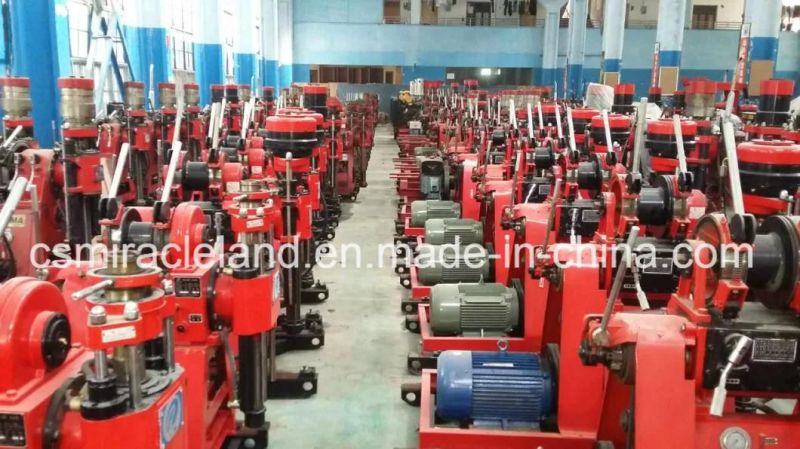

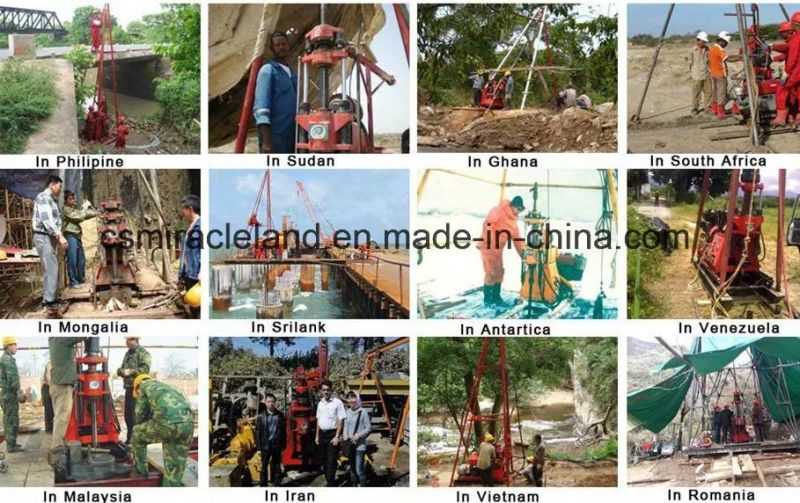

Our drilling rigs are all over the world!

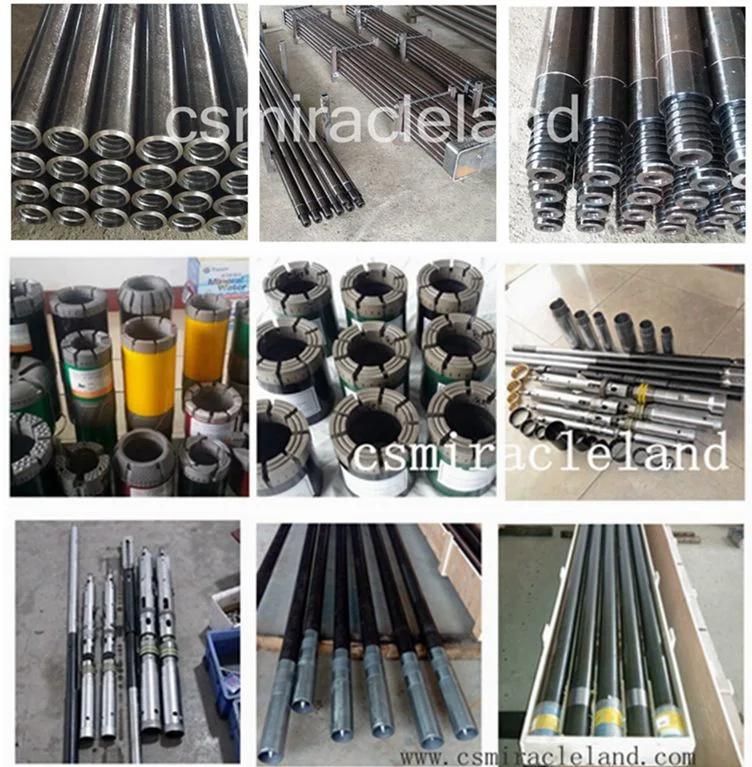

All kinds of international standard core barrels to meet the different drilling demands for the customers!


We supply the plenty of drilling rig spare parts for all customers, no worries for after -sale services!

The technical parameters of HGY-1000 drilling rig:


Type	HGY-1000 Drilling Rig
Drilling depth(m)	1000
Oil pump type	CB-F32C-FL
Oil pump nominal displacement(ml/r)	32
Stroke of moving cylinder (mm)	400±10
Spindle speed(r/min)	Positive rotation rate: 51931602463501492684637101011 Reverse rotation rate: 57164
Spindle hole diameter(mm)	Φ95
Spindle output torque(N.M)	5055
Spindle stroke(mm)	600
Spindle driving force max.(KN)	60
Spindle lifting power max.(KN)	80
Speed of single rope of the third layer(m/s)	0.440.801.382.123.02
Lift capacity of single rope max.(KN)	35
Diameter & Length of drum(mm)	Φ15x100
Max distance from the hole(mm)	250
Weight(power unit excepted)(kg)	1720
Dimensions(L x W x H)(mm)	2400x1020x1765
Diesel engine type	K4100ZD
Diesel engine power (KW)	41
Oil pump nominal rotative velocity(dmin)	1800
Oil pump nominal pressure(MPa)	16
Electric motor type	YB200L-4
Electric motor power(KW)	30
