300kg Output High Efficiency 20-110mm PVC Pipe Extruder Production Line

=== Base Info ===

=== Description ===

Basic Info.

Model NO. SJSZ-65 Customized Customized Condition New After-sales Service Yes Transport Package Wooden Packing Specification 50-110mm Trademark Trusty Origin Qingdao HS Code 84772090 Production Capacity 500 Per Year

Product Description

300KG output High Efficiency 20-110mm PVC Pipe extruder production line

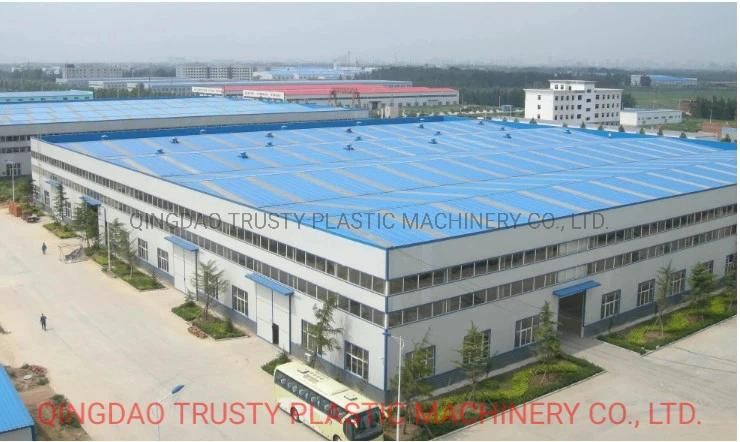

1.Company ProfileQingdao Trusty Plastic Machinery Company is a scientific and technological knowledge intensive enterprise, which is specialized in scientific research, development, manufacturing, sales and service of plastic processing complete sets of equipment and manufacturing.

We have a profound understanding on plastic process and plastic machinery and the accumulation of experience, to ensure the production of plastic machinery have high quality and high performance.
 2.Production Introduction PVC water supply pipe extrusion line is mainly used for producing the pipes,which diameter from 50mm to 110mm.This production line consists of mixer,feeder,twin screw extruder,extruding mould,shaper , vacuum tank, haul-off with caterpillar,automatic cutter, roll over table,crusher and mill.
The high-quality haul off with caterpillar pulls the pipe at a constant speed.The automatic cutter saves the labour.This production line produces pipes with  reliable and guaranteed quality .










3.Machine List

Name	Quantity(set)
Mixer300/600	1
Feeder	1
Twin screw extruder	1
Extruding mould	1
Shaper	1
Vacuum tank	1
Haul off with caterpillar	1
Automatic cutter	1
Roll over table	1
Crusher	1
Mill	1

4.Technical Parameter

Model	SJSZ-65
Total installation power(kw)	150
Transformer (kw)	100
Actual electricity consumption(kw)	50
Capacity (kgh)	240
Line speed (mmin)	2-5
Pipe Diameter(mm)	50-110
Motor Power(kw)	37

5.Production Process

Mix the material→Feed→Extrude→Customize→Haul off→Cut→Stack the material →Crush→Mill


6.After sales service
(1)After the machines are finished, the seller will test all machines before shipment. If the buyer can not come to test the machine, we will test the machines and send the sample to buyer.
(2)After shipment, the seller will send one or two technicians to the buyer' s factory to help the buyer install the machine and train workers for buyer.
(3)We will supply all electricity drawing, machine installation drawing.
(4)When make shipment, we will put some spare electricity parts for free, like the barrel hearers, thermcouples, breakers, relays, and other items which is easier broken.
