Portable Ground Air Hydraulic Crawler Mining Borehole Drilling Rig Machine

=== Base Info ===

=== Description ===

Basic Info.

Model NO. CTQ-Z115Y-2 Drill Hole Depth 40 Meters Bit Type DTH Drill Bit Drilling Way Impactor Climb Ability 30 Degree Air Pressure 7-16 Bar Air Consumption 7-15 M3/Min Engine Power 56 Kw for Rock 6-20 F Weight 5160 Kg Transport Package Standard Shipping Packing Specification 5480MM*1950MM*3150MM Trademark LONGYE Origin China HS Code 8430419000 Production Capacity 300 Sets/ Year

Product Description

Product Introduction
CTQ-Z115Y-2 DTH Drilling Rig

       CTQ-Z115Y-2 crawler hydraulic drilling rig, using a new hydraulic technology, with low air consumption ,large rotary torque, conveniently shifting hole. The drilling rig's structure is compact. while promoting a retractable sliding shelf compensation, drilling when the sliding frame support on the ground, drilling and good stability. Z115Y-2 rig is reliable and high efficiency in drilling rock. The drilling efficiency is  1-2 times higher than low air pressure rig, the rig is a idea choice for construction company to reduce cost and enhance efficiency.
The drilling rig is mainly suitable for open mining, water conservancy, power plants, road building and other Rock blasting whole drilling.

Technical Parameters

Bore diameter(mm)	90-140
Bore depth(m)	40
Walk speed(km/h)	0-2.5
For rock(F)	6-20
Air pressure(Mpa)	0.7-1.6
Air consumption(m³/min)	7-15
Once promotion(mm)	3000
Skid pitch(°)	Up Down Total  100
Swinging angle of skid(°)	Left Right Total  55
Boom swing angle(°)	Left Right Total  70
Boom pitch(°)	Up Down Total  40
Rotation Speed(r/min)	0-120
Host Power (Kw)	56
Climb ability(°)	30
Dimension(L*W*H)(mm)	5480*1950*3150
weight(Kg)	5160

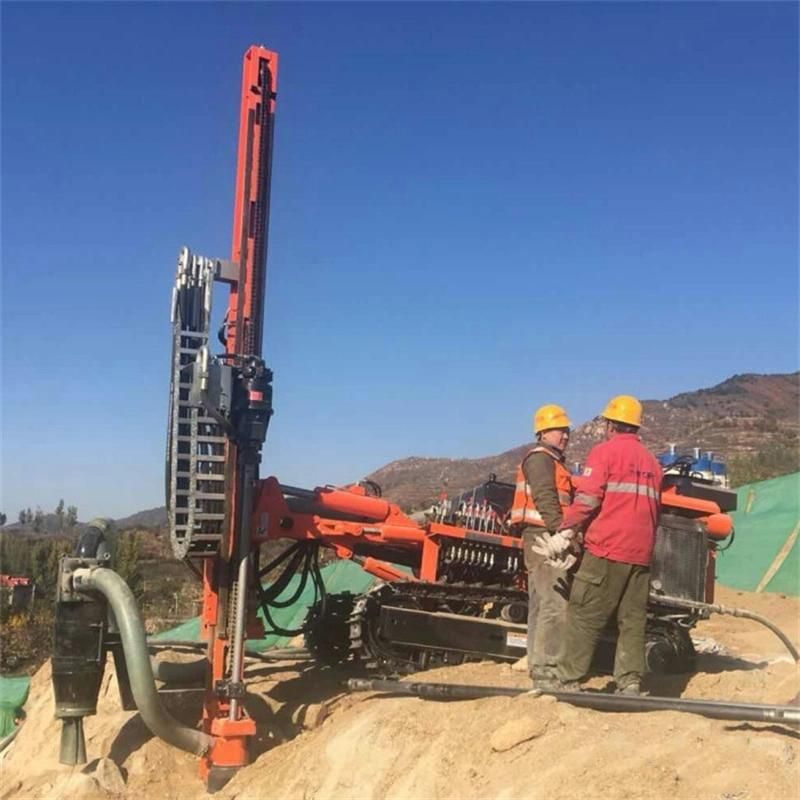

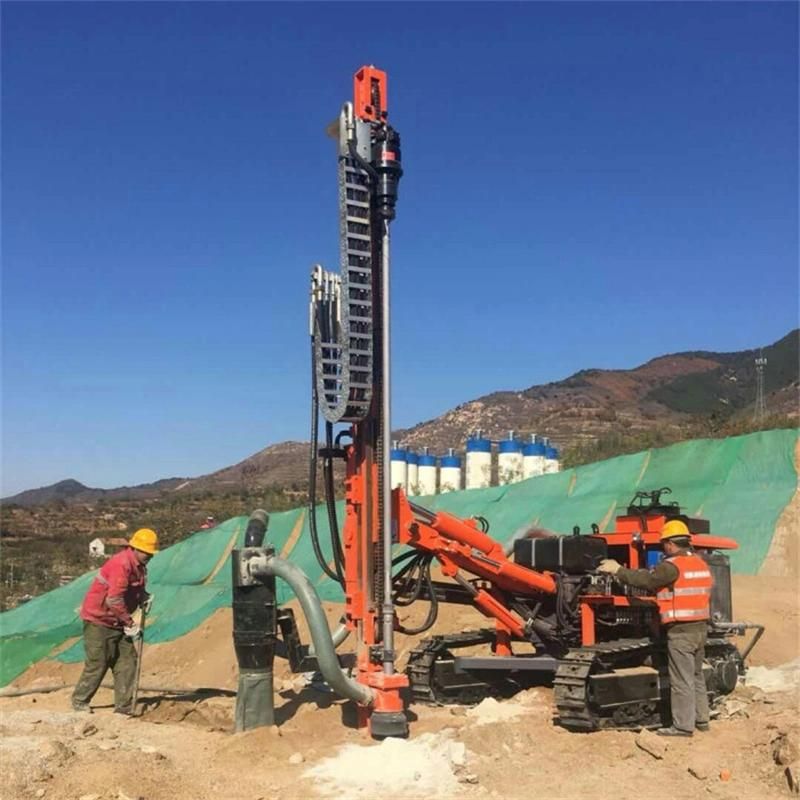

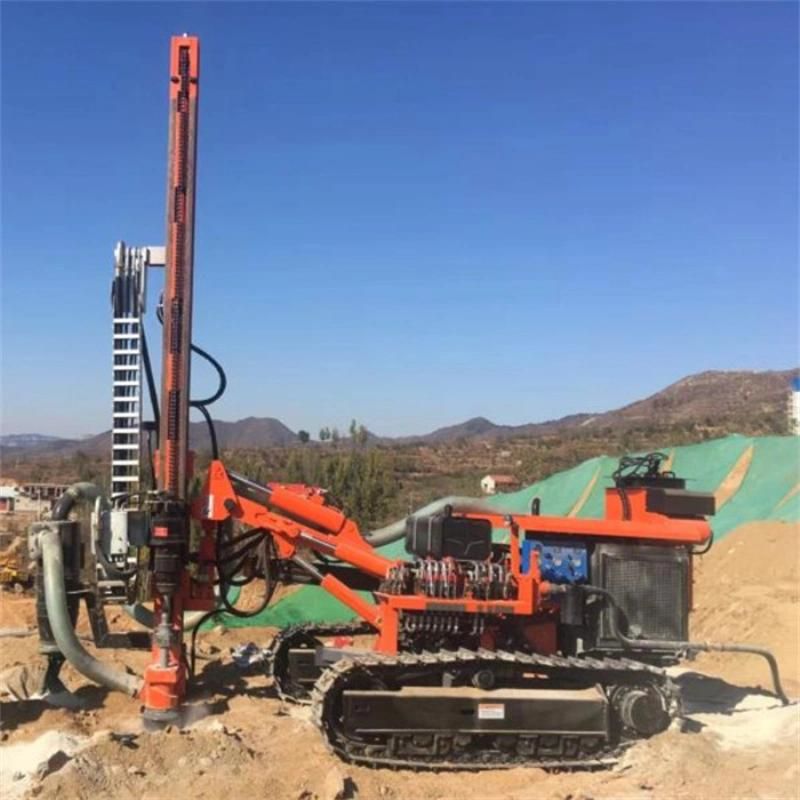

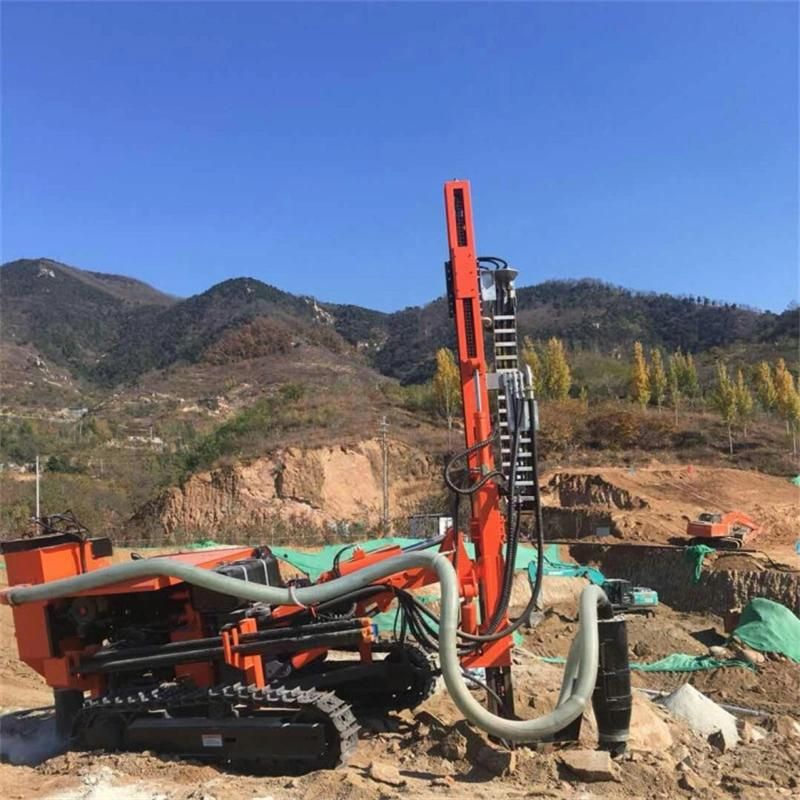

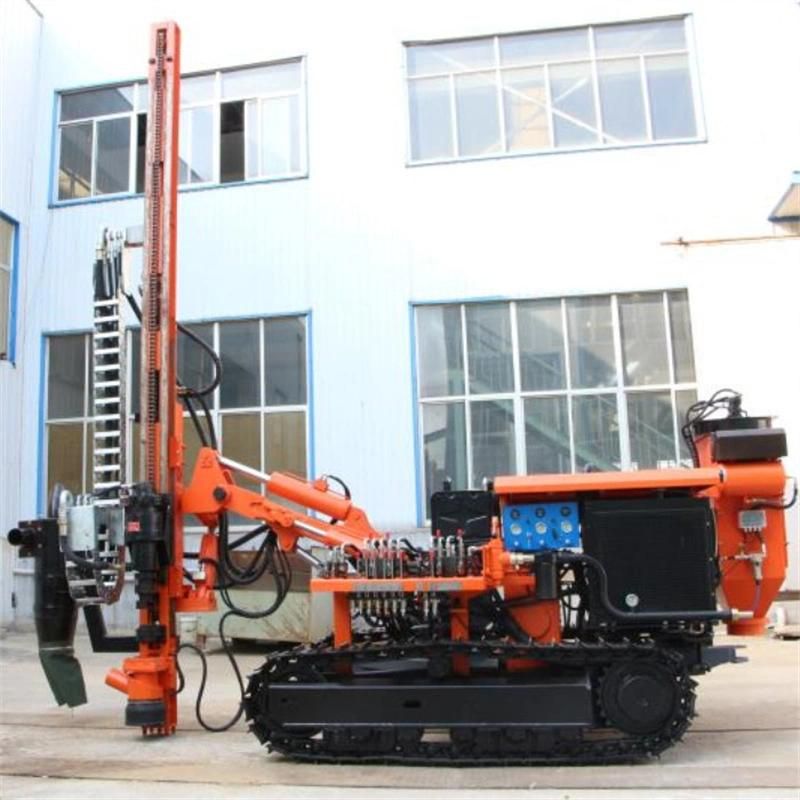

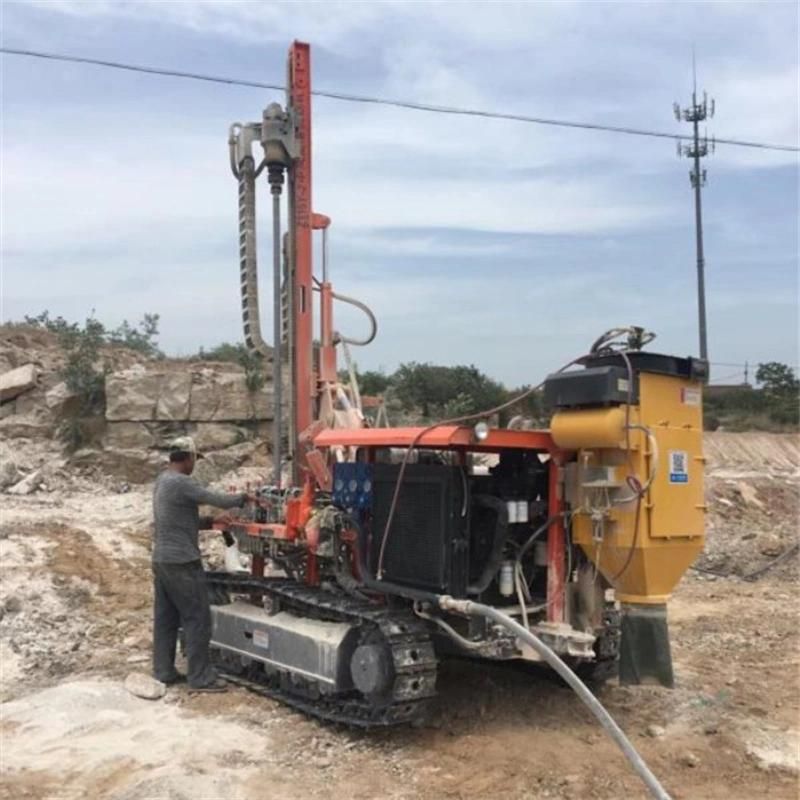

 Product Display



Product Application


Company Profile

Taian Longye Import And Export Trade Co.,Ltd. is a manufacturer,specialized in the production of blasting drilling rig,solar pile driver,water well drilling rig and accessories such as portable screw air compressor,drill pipe,drill hammer,drill bit,etc.Our company is a backbone enterprise in the industry. Our company is located at the foot of Mountain Tai which has the reputation of "Chief of the Five Sacred Mountains", neighboring to Beijing-Shanghai High-speed Way, with convenient transportation and excellent location. Your satisfaction is our promise. Our company covers an area of 35,000 square meters, and has more than 160 employees, including 20 engineering technicians, who all are specialized drilling rig mechanical design talents.  Our company has more than 30 sets of advanced CNC machining equipment and more than 10 sets of special processing equipment. Our company has our own heat treatment production workshops and surface treatment equipment.  On the basis of advanced production equipment and more than 10 years of experience, our company has developed and produced three series of products, including high, medium and low-grade air pressure equipment. 15 kinds of products sell well throughout China, Russia, Kenya, Brazil, India and some other countries in Europe.



FAQ

Q1: What's your delivery time?
A: 15 days to produce, within 3 days if in stock.

Q2: What's methods of payments are accepted?
A: We agree T/T ,L/C , West Union ,Money Gram ,Paypal.

Q3: What about the shipments and package?
A: 40' container for 2 sets, 20' container for 1 set,
Machine in nude packing, spare parts in standard export wooden box.

Q4: Have you got any certificate?
A:We have got ISO,CE certificate.

Q5: How to control the quality?
A: We will control the quality by ISO and CE requests.

Q6: Do you have after-sale service and warranty service ?
A: Yes, we have.We can supply instruction for operation and maintenance.If necessary, we can send our engineer to repair the machine in your company.
Warranty is one year for the machine.

Q7: Can I trust your company ?
 A: Our company has been certificated by Chinese government,and verified by SGS Inspection Company.Just order from US !
