Good Quality CNC Fiber Laser Cutting Machine for Sheet Metal

• Application：Home Appliance, Environmental Equipment, Petroleum Machinery Manufacturing, Agriculture Machinery, Food Machinery, Aerospace Industry, Automotive Industry, Advertising Industry
• Cooling System：Water Cooling
• Technical Class：Fiber Laser
• Applicable Material：Metal
• Structure Type：Gantry Type
• Laser Classification：Free Electron Laser

=== Base Info ===

• Model NO.：GS-3015
• Laser Technology：Laser Control Fault Cutting
• Laser Source：Germany Rofin 1000W ,Ipg 1000W
• Maunfacturer：Dongguan Factory
• Color：White ,Red and Black
• Usage：Cutting Metal in Pieces or Spare Parts
• Maintainance：No Need Maintainance
• Standard Working Area：1500X3000mm
• Optional Working Area：650X300mm ,1300X2500mm ,2000X4000mm
• Optional Choice：Full Covered and Exchange Worktable
• Applicated Materials：Stainless Steel ,Carbon Steel ,Mild Steel ,Copper
• Cutting Line Width：0.1mm-0.5mm
• Transport Package：Packaged by Plywood
• Specification：CE, ISO, SGS, FDA, Bureau
• Trademark：GLORYSTAR
• Origin：Dongguan, China
• HS Code：8456100090
• Production Capacity：1000sets,Year

=== Description ===

Basic Info.

Model NO. GS-3015 Laser Technology Laser Control Fault Cutting Laser Source Germany Rofin 1000W ,Ipg 1000W Maunfacturer Dongguan Factory Color White ,Red and Black Usage Cutting Metal in Pieces or Spare Parts Maintainance No Need Maintainance Standard Working Area 1500X3000mm Optional Working Area 650X300mm ,1300X2500mm ,2000X4000mm Optional Choice Full Covered and Exchange Worktable Applicated Materials Stainless Steel ,Carbon Steel ,Mild Steel ,Copper Cutting Line Width 0.1mm-0.5mm Transport Package Packaged by Plywood Specification CE, ISO, SGS, FDA, Bureau Trademark GLORYSTAR Origin Dongguan, China HS Code 8456100090 Production Capacity 1000sets/Year

Product Description

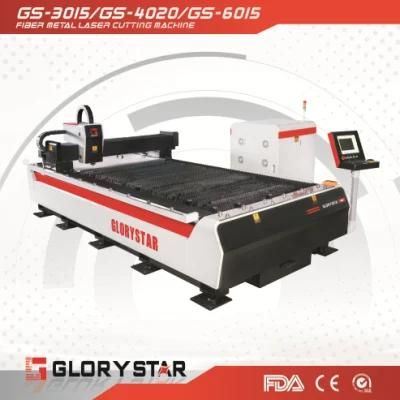

CNC Fiber Laser Cutting Machine for Metal Sheet Cutting


Machine Structure
The frame is precisely welded by argon arc, whole structure is gantry type: 600 ºC high temperature annealing treatment and 12 meters large CNC gantry fine milling ensure the frame regularly to  run for 20 years without deforming.
Equipped with the most advanced wireless handheld terminal, It can perform processing by remote control. The machine adopts imported Germany CNC system, high-performance AC servo motor, high-strength cast-aluminium cross girder.
It's a high-tech product integrated with advanced technology such as pneumatic, mechanic, photoelectric and CNC, etc.

Configurations
1. Imported Japanese servo motor synchro double drive syetem.
2. Imported Germany Precitec laser cutting head.
3. Imported French high precision gearbox.
4. Japanese high precision gear and rack.Precise laser cutting controlled system.

Applicable Materials
Especially suitable for contact-free cutting, hollowing or drilling of  metal sheets in 0.5mm to 14mm, Stainless steel, carbon steel, galvanized sheet, thin aluminum and thin copper etc. Fast, precise and energy-efficient.

Technical Data

Model	GS-3015
Working area	3000mm*1500mm
X axis travel distance	3030mm
Y axis travel distance	1520mm
Z axis travel distance	120mm
X/Y axis geometry positioning accuracy	≤0.05mm
X/Y axis repeat positioning accuracy	≤0.03mm
X/Y axis max.positioning speed	100m / min
X/Y axis max. Acceleration	1G
Cutting line width	0.1mm-0.5mm
Cutting roughness	Ra3.2-25.4um
Cutting capacity	0.5mm-14mm
Min.setting unit	0.001mm
Floor size	8800mm*3160mm
Main body dimension	8800mm*3160mm*2000mm
CNC system	CYPCUT
Display	17"LCD
Worktable	Exchangeable worktable
Worktable max.loading capacity	1000 kg
Unit weight	8 T
Overall installed electricity capacity	50 KVA
Phase	3
Rated Voltae	380V
Frequency	50 Hz
Total power protecting level	Ip54
