CNC Laser Cutter with CO2 Laser with Dual Heads

• After-sales Service：Whole Life
• Warranty：2 Years
• Application：Home Appliance, Textile Machinery, Aerospace Industry, Automotive Industry, Shoemaking Industry, Woodwork Industry, Advertising Industry
• Cooling System：Water Cooling
• Technical Class：Continuous Wave Laser
• Applicable Material：Nonmetal

=== Base Info ===

• Model NO.：FLC1610D
• Structure Type：Gantry Type
• Laser Classification：Gaseous Laser
• Laser Technology：Laser Control Fault Cutting
• Working Area：1600*1000mm
• Laser Power：Double 60W- Double 150W
• Delivery Time：in 10 Days

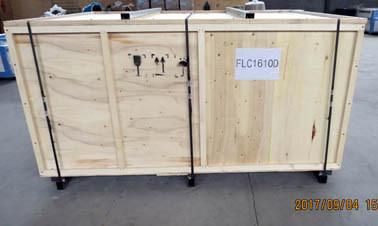

• Transport Package：Plywood Crate
• Specification：1610
• Trademark：FLYING
• Origin：China
• HS Code：8456100090
• Production Capacity：100PCS,Month

=== Description ===

Basic Info.

Model NO. FLC1610D Structure Type Gantry Type Laser Classification Gaseous Laser Laser Technology Laser Control Fault Cutting Working Area 1600*1000mm Laser Power Double 60W- Double 150W Delivery Time in 10 Days Transport Package Plywood Crate Specification 1610 Trademark FLYING Origin China HS Code 8456100090 Production Capacity 100PCS/Month

Product Description

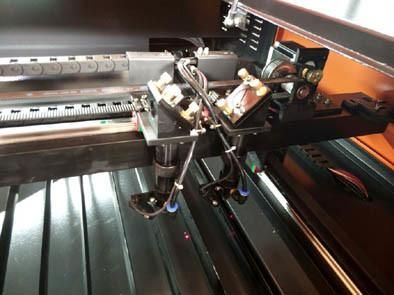

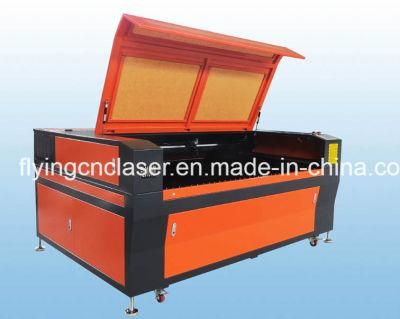

CNC Laser cutter with Co2 laser with dual heads
Features:
    With 1600*1000mm working area,and dual laser heads, it is equal to two machines. The two laser nozzle can work at the same time, which greatly improving the processing efficiency, especially for cutting/engraving wood, acrylic, fabrics, leather, marble and etc. It is equipped a switch which can let you stop one laser head to meet up your requirements of  full scare working.



Specifications:

Model	FLC1610D
Laser-type	10.6um CO2 glass laser tube w/ water-cooling
Laser power	Double 60w-150w
Working area	1600*1000mm
Max Engraving speed:	0-64, 000mm/min
Max cutting speed	0-30, 000mm/min
Laser output control	1-100% software setting
Location precision	Less than 0.01mm
Highest scanning precision	2500DPI
Operating temperature	0 - 45
Operating humidity	5- 95% non-condensing
Minimum shaping character	English 1.0 x 1.0mm
Graphic format supported	HPGL, JPEG, BMP, PLT, DST, DXF, and AI ...
Driving system	Stepper(Optional: Servo)
Cooling mode	Water-cooling and protection system

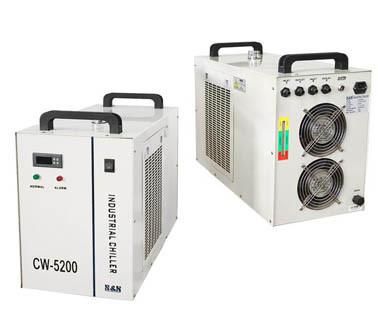

Auxiliary equipments	Exhaust-fans, air-exhaust pipe, air pump, chiller
Controller	DSP
Compatible Software	CorelDraw, AutoCAD, Photoshop, TAJIMA
Slope Engraving	Can be easily designed within the "Grade Engrave" function.
Color separation	Uses color property to set function, speed, and laser power

Special Features:
1) Materials can extend through the front and rear doors to allow for a larger work product.
2) Following LED Work light to help see products during laser processing.
3) Red-DOT pointer to help you see the expected laser beam position.
4) AutoFocus touch sensor to easily set the right height for best engraving and cutting.
5) Parts tray for removing small parts or scrap from under the workbed.
6) Fully enclosed laser case yields a class I (user friendly) laser product.

Applicable Industries:
Suitable for industries such as billboards, artistic gifts, crystal ornaments, paper cut engraving, bamboo embossment, printing, garments and leather industries, embroidery, interior decoration, frame fabrication and etc.

Applicable Materials:
Double color boards, acrylic, glass, wood planks, bamboo, rubber, plastic, garments, paper, leather, marble, granite, tiles and etc...

Samples Display:
