- Process:Mild Processing
- Power Source:Electric
- Certification:CE, ISO9001
- Automatic Grade:Automatic
- Application:Milk, Dairy, Milk, Juice, Beverage
- Customized:Accept
=== Base Info ===
- Model NO.:KQ-1000 to KQ10000L
- Name and Description:New Design High Efficient Small Dair Juice Cream
- Product Material:Stainless Steel 304,316
- Capacity:500L,H--10000L,H
- Pressure:250bar to 700bar
- Warranty:in One Year
- Homogenizer Spare Parts:Provided
- Package:Plywood Box
- Homogenizer Electricity:220V,380V,415V,440V
- Certificated:Ce
- Condition:New
- Packing:Wooden Box
- Working Life:More Than 10 Years
- Spare Parts:Available
- MOQ:1set
- OEM:Yes
- Transport Package:Standard Wooden Box
- Specification:CE
- Trademark:KAIQUAN
- Origin:Shanghai, China
- HS Code:8479820090
- Production Capacity:100 Units,Month
=== Description ===
Basic Info.
Model NO.
KQ-1000 to KQ10000L
Name and Description
New Design High Efficient Small Dair Juice Cream
Product Material
Stainless Steel 304/316
Capacity
500L/H--10000L/H
Pressure
250bar to 700bar
Warranty
in One Year
Homogenizer Spare Parts
Provided
Package
Plywood Box
Homogenizer Electricity
220V,380V,415V,440V
Certificated
Ce
Condition
New
Packing
Wooden Box
Working Life
More Than 10 Years
Spare Parts
Available
MOQ
1set
OEM
Yes
Transport Package
Standard Wooden Box
Specification
CE
Trademark
KAIQUAN
Origin
Shanghai, China
HS Code
8479820090
Production Capacity
100 Units/Month
Product Description

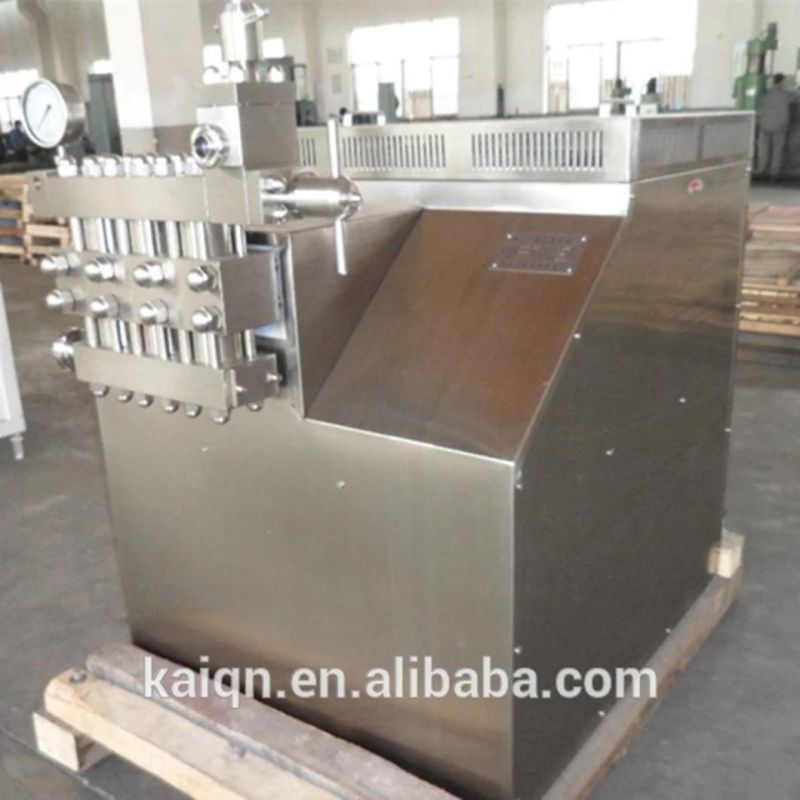

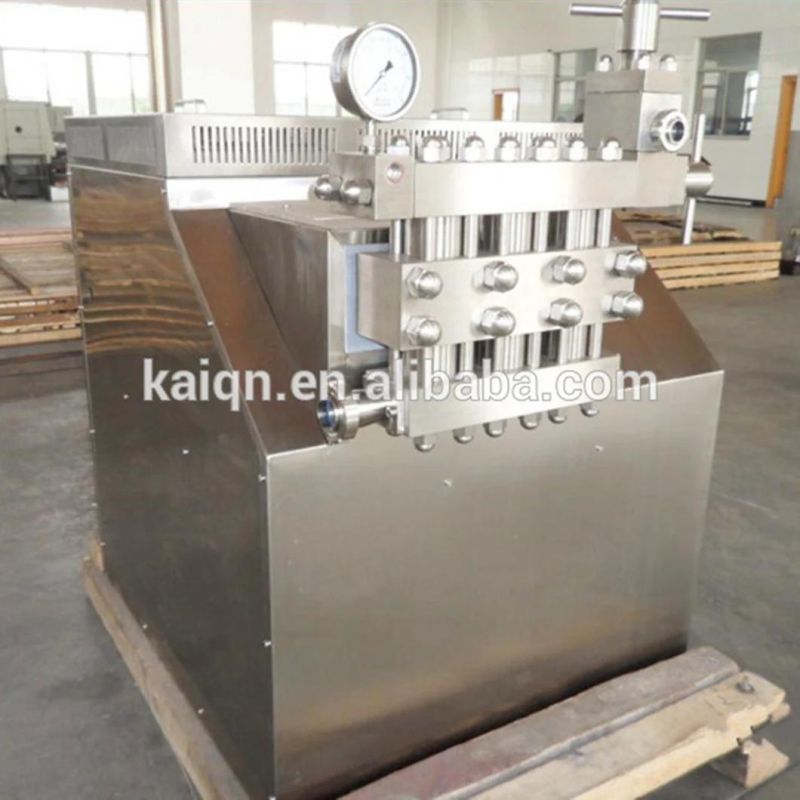

New Design High Efficient Small Dair Juice Cream Homogenizer Price
Small Homogenizer Dairy Homogenizer Juice Homogenizer Cream Homogenizer
Milk High Pressure Homogenizer, You Can Buy Various High QualityMilk High Pressure Homogenizer Products from us, the 250bar milk homogenizer FROM US
CE CERTIFICATED HOMOGENIZER FOR MILK, JUICE, DAIRY, ICECREAM, SOYBEAN MILK, HONEY
Soybean milk homogenizer, 40MPA homogenizer
Tea drinks homogenizer, juice homogenizer
Homogenizer pumps
High pressure homogenization is a standard industrial process for dairy products, to improve their stability and shelf life .
Series is the kind of equipment which can homogenize the liquid material and make it become high-pressure spray. The high pressure homogenizer pump reciprocates the pump position, high press the liquid, fully mixed and refined the material.
The high pressure homogenizer can use to homogenize the dairy product material in high pressure, refine the fat globule, prevent or decrease the stratifying of the liquid material; Make the product much more nicety, to prove the quality of the product.
The high pressure homogenizer pump also the important equipment of the powder manufacture. (Such as pharmaceutical industry, chemical industry, etc. )
Model No. Technical parameter | KQ0.5-25 | KQ1-25 | KQ1.5-25 | KQ2-25 | KQ2.5-25 | GJB3000-25 KQ3-25 | KQ5-25 |
Rated pressure(MPa) | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
Rated flow ( Liters/H ) | 500 | 1000 | 1500 | 2000 | 2500 | 3000 | 5000 |
Medium temperature(C) | ≤85 | ≤85 | ≤85 | ≤85 | ≤85 | ≤85 | ≤85 |
Feeding pipe diameter(mm) | 25 | 25 | 25 | 25 | 25 | 32 | 40 |
Discharge pipe diameter(mm) | 15 | 15 | 20 | 20 | 20 | 20 | 25 |
Power of motor(Kw) | 5.5 | 7.5 | 11 | 15 | 18.5 | 22 | 45 |
Volt and Electricity Flow | 220V,60HZ,3PH | 380V,50HZ | 380V,50HZ | 380V,50HZ | 220V,60HZ,3PH | 380V,50HZ | 380V,50HZ |
Outline dimension (m) Length * width * height | 1.16×0.9×1.24 | 1.16×0.9×1.24 | 1.16×0.9×1.24 | 1.4×1.1×1.42 | 1.4×1.1×1.42 | 1.4×1.1×1.42 | 2.2×1.45×1.1 |
Weight(Tons) | 0.4 | 0.5 | 1.25 | 1.25 | 1.25 | 1.25 | 1.7 |
