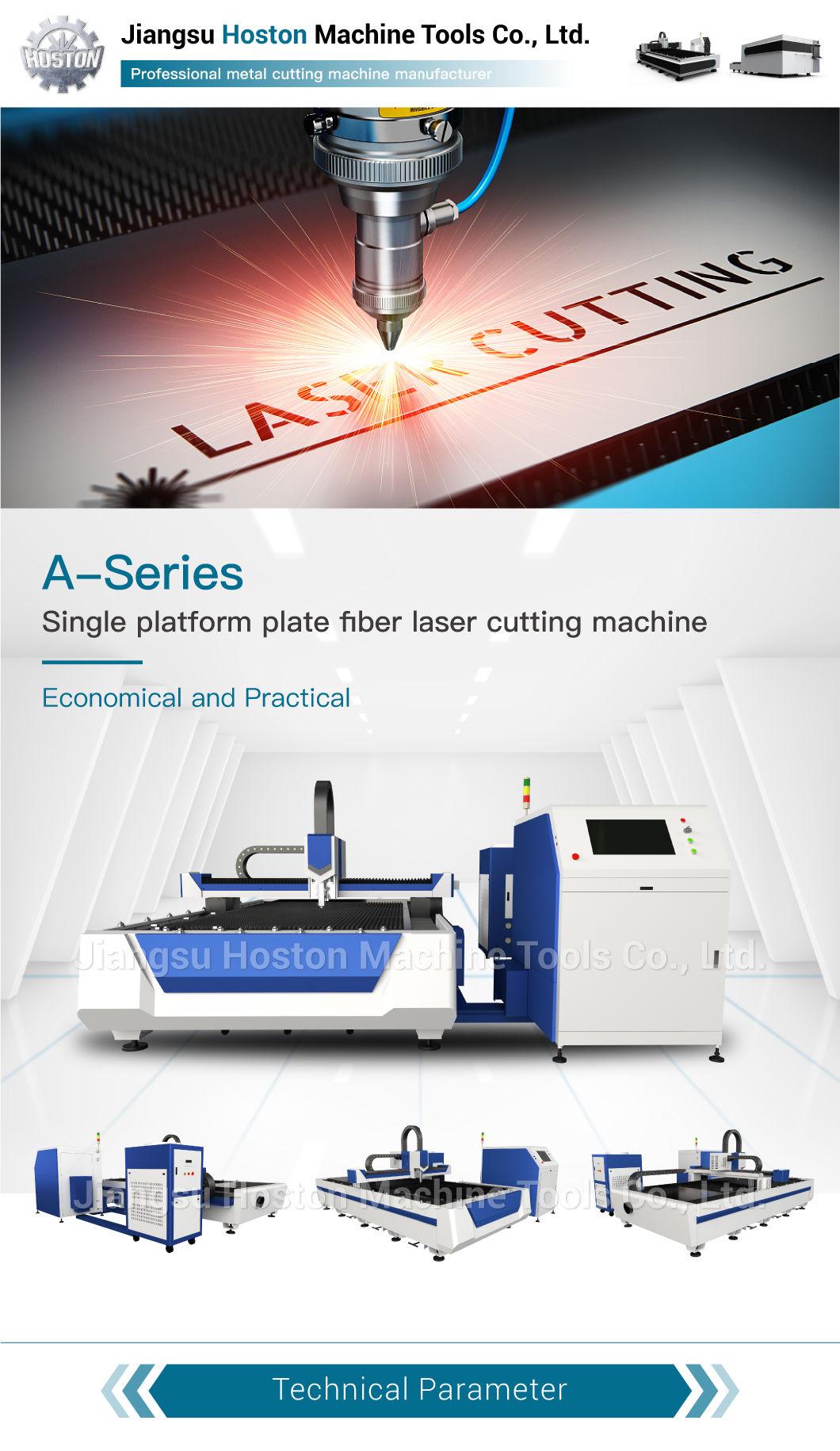

Metal Sheet Steel Fiber Laser Cutting Machine with CE Certification

• After-sales Service：Online Support
• Warranty：1 Years
• Application：Home Appliance, Environmental Equipment, Petroleum Machinery Manufacturing, Agriculture Machinery, Textile Machinery, Food Machinery, Aerospace Industry, Automotive Industry, Shoemaking Industry, Woodwork Industry, Advertising Industry
• Cooling System：Water Cooling
• Technical Class：Continuous Wave Laser
• Applicable Material：Metal

=== Base Info ===

• Structure Type：Gantry Type
• Laser Classification：Solid Laser
• Laser Technology：Laser Flame Cutting
• Working Area：1500*3000
• Exchange Mode：Horizontal Exchange
• Laser Power：1500W-20000W
• Max. Cutting Speed：120m,Min
• Max. Acceleration：1.0g
• Positioning Accuracy：0.08mm
• Repeated Positioning Accuracy：0.02mm
• Transmission：Precise Rack and Pinion
• Application Material：Metal Sheet Iron,CS,Ss,Aluminum,Copper
• Power Consumption：8kw
• Laser Source Brand：Raycus
• Laser Head Brand：Raytools
• Servo Motor Brand：FUJI
• Guiderail Brand：PMI
• Transport Package：Wooden Package
• Specification：8700*5000*2300mm
• Trademark：Hoston
• Origin：China

=== Description ===

Basic Info.

Structure Type Gantry Type Laser Classification Solid Laser Laser Technology Laser Flame Cutting Working Area 1500*3000 Exchange Mode Horizontal Exchange Laser Power 1500W-20000W Max. Cutting Speed 120m/Min Max. Acceleration 1.0g Positioning Accuracy 0.08mm Repeated Positioning Accuracy 0.02mm Transmission Precise Rack and Pinion Application Material Metal Sheet Iron/CS/Ss/Aluminum/Copper Power Consumption 8kw Laser Source Brand Raycus Laser Head Brand Raytools Servo Motor Brand FUJI Guiderail Brand PMI Transport Package Wooden Package Specification 8700*5000*2300mm Trademark Hoston Origin China

Product Description

Model	1530	1540	2040	2060	2560	25120
Working Area (mm)	1500×3000	1500×4000	2000×4000	2000×6000	2500×6000	2500×12000
Machine Dimension (mm)	5000×4200×2200	6000×4200×2200	6000×4800×2200	8400×4800×2200	8500×6200×2300	15400×6700×2600
Max. Cutting Speed (mm)	120	120	120	120	120	120
Max. Acceleration (G)	1.0	1.0	1.0	1.0	1.0	1.0
X/Y Positioning Accuracy (mm)	±0.08	±0.08	±0.08	±0.08	±0.08	±0.08
X/Y Repeated Positioning Accuracy (mm)	±0.02	±0.02	±0.02	±0.02	±0.02	±0.02
Operating Voltage (V/Hz )	380/50	380/50	380/50	380/50	380/50	380/50
Laser power (W)	1500-15000	1500-15000	1500-15000	1500-15000	1500-15000	1500-15000
Power consumption (KW)	6	6	6	6	6	6
Machine Running Temperature (ºC)	0-40	0-40	0-40	0-40	0-40	0-40
Machine Running Humidity	<90%	<90%	<90%	<90%	<90%	<90%
Transmission	Precise rack and pinion	Precise rack and pinion	Precise rack and pinion	Precise rack and pinion	Precise rack and pinion	Precise rack and pinion
