High Effective Wheat Starch Slurry Separator Making Machine Centrifugal Sieve

• Processing Material：Special Agricultural Products, Wheat
• Application：Starch
• Customized：Customized
• Certification：CE
• Power Source：Electric
• Automatic Grade：Automatic

=== Base Info ===

• Model NO.：DLS85 DLS100 DLS120
• Product Name：Centrifuge Sieve
• Line：Wheat Starch Production Line
• Useful Life：20 Years
• Condition：New
• Power：37 Kw
• Dimension：1640*2490*2222 mm
• Weight：2200 Kg
• Working Model：Continuous
• Voltage：220V or 380V
• Service：Overseas Installation
• Warranty：1 Year
• Maintain：Yes
• Advantage：Patent Product
• Transport Package：Wooden Case
• Specification：stainless steel
• Trademark：JINGHUA
• Origin：Zhengzhou City, China
• Production Capacity：20 Sets,Month

=== Description ===

Basic Info.

Model NO. DLS85 DLS100 DLS120 Product Name Centrifuge Sieve Line Wheat Starch Production Line Useful Life 20 Years Condition New Power 37 Kw Dimension 1640*2490*2222 mm Weight 2200 Kg Working Model Continuous Voltage 220V or 380V Service Overseas Installation Warranty 1 Year Maintain Yes Advantage Patent Product Transport Package Wooden Case Specification stainless steel Trademark JINGHUA Origin Zhengzhou City, China Production Capacity 20 Sets/Month

Product Description

high effective wheat starch slurry separator making machine centrifugal sieve
1.Description of wheat starch slurry separator machine
Centrifugal sieve is used to separate the fine fiber from the starch slurry, which is widely used in the processing of potato, cassava, sweet potato, wheat, rice, sago and other grain starch extraction.

Main technical parameters

Model	Basket diameter(mm)	Main shaft speed(r/min)	Working model	Power (Kw)	Dimension (mm)	Weight (t)
DLS85	850	1050	continuous	18.5/22/30	1200x2111x1763	1.5
DLS100	1000	1050	continuous	22/30/37	1440x2260x1983	1.8
DLS120	1200	960	continuous	30/37/45	1640x2490x2222	2.2

The working principle of centrifuge sieve
First, run the machine, let the starch slurry enters the bottom of the sieve basket.  Then, under the effect of centrifugal force and gravity, the slurry goes a complex curve movement toward the bigger size direction, even rolling. In the process, the bigger impurities arrive the outer edge of the sieve basket, collecting in the slag collection chamber, whist the starch particle which size is smaller than the mesh fall into the starch powder collection chamber.

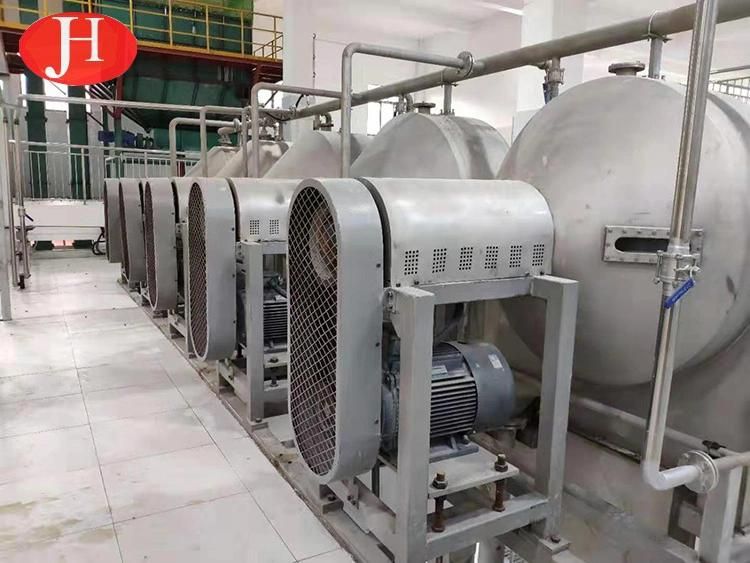

Real application case






Advantages of centrifuge sieve
1. Combining the latest technology and years' experience into a whole.
2. Key components introduced abroad, lone service life, low maintenance cost.
3. All parts contact with material are stainless steel, no material contamination.
4. Sieve basket is calibrated through dynamic equilibrium by domestic authority body.
5. Sieve made from laser perforating on titanium alloy plate.
6. To facilitate the automatic design for centrifugal sieve group, CIP system and chain automatic control can be easily realized.
7. Advanced surface treatment technology ensuring the good appearance and resistance of oil and dirt.

2.Packing & Shipping
Packing : Customize the wooden case according to the size of the product.
Delivery: 14 days after receiving pre-payment (on time according to contract strictly).


3.Our Service
Pre-sale service
1.Accept customer consultation and customize products according to customer requirements.
2.Provide customers with product process, equipment parameters and processes, and train personnel according to customer requirements.

Sale service
1.The company sent technical personnel to the scene of the on-the -spot guidance equipment installation,debugging and training operators.
2.If there is any problem during the installation, please contact the responsible person in time. We will solve the problem in time to ensure the installation progress.

After-sale service
1.Provide telephone and video support. If the customer has any problems or abnormal devices in use, you can contact us by phone. We will help the customer solve the problems by phone or video.
2.If the phone or video doesn't work, the company will send technicians to the scene to fix the problem.
3.Products purchased in our company, we provide one-year warranty and lifelong maintenance service.


4.Why Choose Us
On the afternoon of June 6th, One Belt And One Road Cambodian delegation came to visit zhengzhou jinghua industrial co., LTD. Professor wang yanbo, chairman of zhengzhou jinghua company and other relevant personnel introduced to the delegation the achievements made by jinghua company over the years, the production technology of products and the production process of starch. The delegation visited the company's office building, production workshop and finished product warehouse, showing the delegation the company's production and research capabilities.


Zhengzhou Jinghua Industry Co.,Ltd. is a professional starch engineering corporation in China. Depending on the unique advantage and strong strength of Henan University of Technology, Jinghua combines scientific research, industry and trade as a whole, which mainly engaged in the working of factory layout, technology design,complete equipment manufacturing and commissioning, new product developing etc. to all kinds starch processing. Has two modern large factory, engineering and technical personnel more than 30 people, can provide installation services overseas. Our company has undertaken national and provincial scientific research projects.,with more than 30 invention patents, various honor certificate more than 20.

5.FAQ
Q1: Can you provide detailed parameters and drawings of the equipment?
A: Yes, you can contact us by email, we will provide you with the detailed parameters and drawings of the equipment.

Q2:How long is the warranty period of the equipment?
A:After the successful installation and commissioning of the equipment, there is a one-year warranty period.

Q3:What kind of after-sales service do you provide?
A:Provide after-sales service for customers through telephone, video guidance, on-site maintenance, etc.

Q4: Are your products can be assured ?
A: Our machines are all passed ISO9001:2001 and have CE certificate by SGS, TUV.

Q5: If we show you our layout of factory, can you help us to design the whole process line?
A : Yes, our experienced engineers and technical employees can help you to arrange the layout and installation of whole process line based on your real situation;

Q6: If we have samples of new products, can you help us to analysis and design the machine?
A: Yes, Our technical department can help you to analysis, design and test the new products you offered.
