PVC Tray Vacuum Thermoforming Machine

=== Base Info ===

=== Description ===

Basic Info.

Model NO. HY-720/1220 Computerized Computerized Automation Automatic Driven Type Electric Shaping Mode Die Molding Raw Material PVC Application Boxes, Trays, Fast Food Boxes, Dishes, Lids, Cooki Max Forming Area 720*1220mm Forming Height 0-165mm Production Speed 200-600times/Hour Eject-Die Method Shake to Mould-Down Electric Furnace Rating Power 60 Kw Vacuum Pump Power 3.0 Kw Power 380V 50Hz Three Phases Air Compressor 15kw/20HP Overall Dimension (L)8800*(W)1500*(H)2500mm Transport Package Wooden Case Specification CE, Trademark HongYin Origin Ruian, Zhejiang HS Code 84774090 Production Capacity 60 Sets/Year

Product Description

PVC Tray Vacuum Thermoforming Machine
The vacuum machine overview:

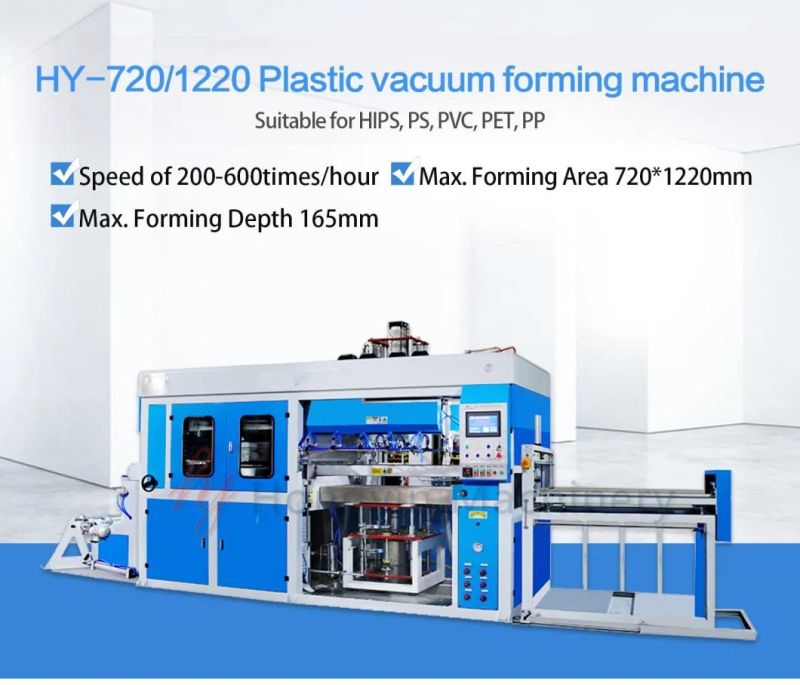

HY-720/1220 Plastic vacuum forming machine is designed by the principle of mechanical-electrical-pneumatic integration. It adopts PLC control system, panel and digital power control. This full-automatic forming equipment for thermoforming plastic sheet includes feeding, heating, forming, cooling, mold ejecting, cutting by one process.

Application:
HY-720/1220 vacuum machine is mainly applied to plastic sheet material molding, such as PS, HIPS, PVC, PET, PP and flocking sheet, etc. which produce all kinds of trays, trays for medicine injection, oral liquid, vegetables, telephones, cookies, tool, hardware, electron and disposable tableware, etc.




Prameters:

1.Max Forming area	720*1220mm
2.Sheet width	610-760mm
3.Forming height	0-165mm
4.Thickness of sheet	0.15-1.0mm
5.Production speed	200-600times/hour(depend on the shape of product and thickness of sheet)
6.Mould-up move	Electromotion
7.Electric oven power	30 KW
8.Heating device	60 independent electronics non pole adjust(one control one)
9.Traction motor power	2.2KW
10.Vacuum pump power	3.0 KW
11.Cooling-water machine power	3.37 KW
12.Power	380V 50/60HZ three phases
13.Air compressor	15KW/20HP (remarked by customer)
14.Dimension	(L)6600*(W)1450*(H)2800mm
15.Weight	3000kg

.


About Zhejiang Hongyin Machinery Co., Ltd Services:

1. Purchase Service
Ruian Hongyin Company has a specialized and efficient working team. If you are new to the printing and packing area, Some samples of your products could be shown to us will be appreciated, we will give you a specialized suggestion of whole work.

2. Installation Service:
Hongyin company will assign 1 technician to coordinate installation, commissioning, and training, the cost for the return flight and suitable accommodation will be charged, and the allowance is USD 80-100 per day.

3. Warranty Service:
12 months limited warranty.
Starting from the date of machine arrival buyer's place excluding wear parts.
Shipping costs for easy broken parts to be replaced during the warranty period have to be borne by the customer.

If you are interested in our machine, please feel free and contact me.
