High Quality PVC Transparent (roofing) Sheet Making Machine

=== Base Info ===

=== Description ===

Basic Info.

Model NO. SJSZ65/132, SJSZ80/156 Customized Customized Condition New Power(W) 55kw-315kw Voltage 3 Phase,380V,50Hz or Customized Max Capacity(Kg/H) 600kg/H Sheet Thickness 0.2-20mm Sheet Width 200-2200mm Sheet Layer 1 Layer Colour White or Customized Engineers Available Guaranteed Time 12 Months Main Electrical Components Simens, Omron, ABB, Schneider etc. Transport Package Wooden Case or Other Moistureproof Packages Specification CE SGS ISO9001-2000 Trademark Leader Machinery Origin Qingdao, Shandong, China HS Code 84772090 Production Capacity 600kg/H

Product Description

High quality PVC transparent roofing sheet making machine Introduction:

This sheet production line is used to produce rigid pvc sheet, which has such characteristics of good plasticization, easy to form, high tension, accurate products color controlling , high capacity, fireproof, economical and can be replaced PVC cast sheet.



APLICATIONS:

Pvc sheet for sandwich panel, and pvc edge ban for furniture edge baning and skinning, the thermoforming packing and so on.



SHEET SPECIFICATIONS

Sheet width: 500-1500mm

Sheet thickness:0.2-2mm



COMPONENTS OF THIS MACHINE

1. High speed hot and cold mixer  1 set

2. Spring feeding machine  1 set

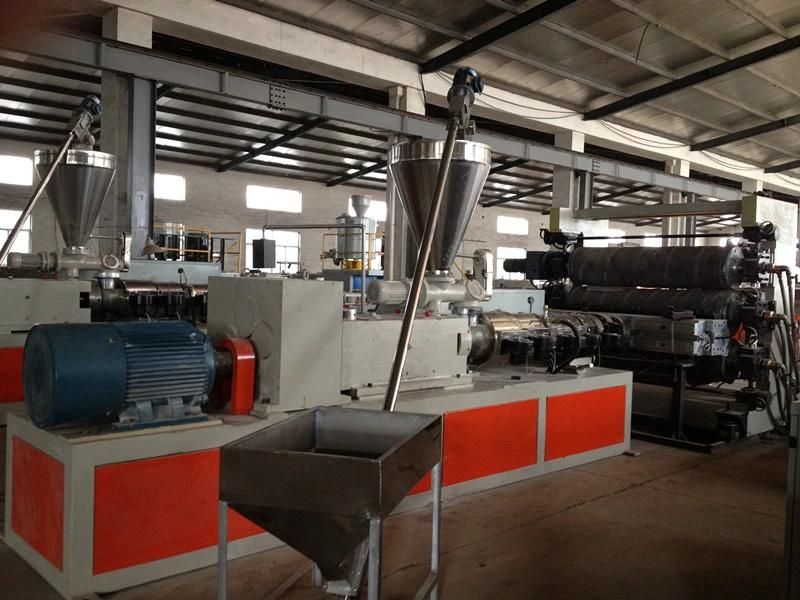

3. Conical twin screw extruder  1 set

4. T-type die head  1 set

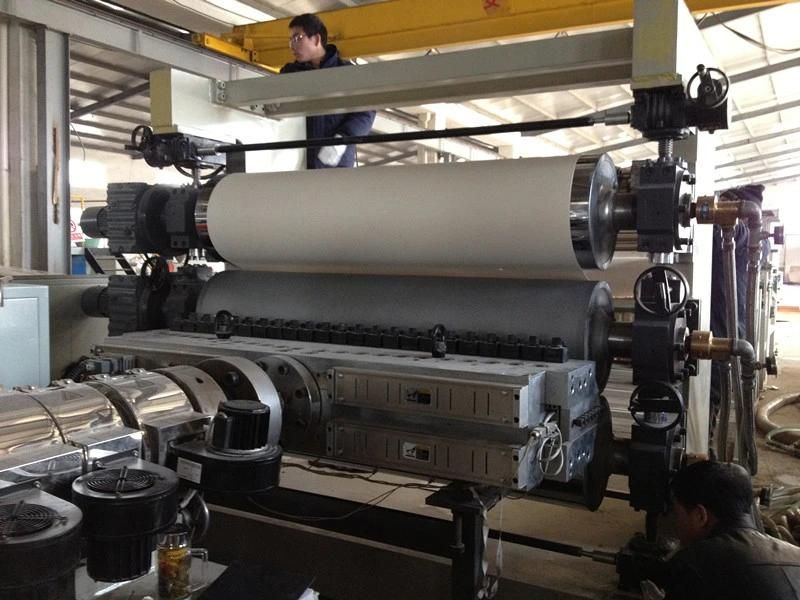

5. Three roller calendars   1 set

6. cooling frame and edge cutting units  1 set

7. hauling off machine  1 set

8. plastic cutting machine-guillotine  1 set

9. sheet stacker  1 set

10. or twin position sheet winder  1 set

11. plastic crusher  1 set

12. plastic pulverizer  1 set

13. water chiller 1 set



FEATURES OF THIS LINE :

 1. Extruder: Special screw structure, imported world-known thermocontrollers, electronics, hard gear face reducers to ensure high effective material extrusion capacity.2.T -type die head: suitable compression ratio to ensure uniform flow stability.3.Three-roller calendar: According to the material properties, adopting vertical three-roller, oblique three-roller, horizontal three-roller calendar. Internal roller temperature control using a unique flow channel, so that the stability of uniform distribution roller. The independent oil temperature control for three roller to ensure more stable and exact control.4. Cooling frame: According to product specifications, configurations with different specifications of the stainless steel cooling roller
5.Edge-cutting devices: Trimming can be divided into manual and automatic, three-dimensional configuration tool adjustment device, width adjustable.
6. Cut off machine: Saw cutting or knife cutting, thin type and non-friable type sheet generally usually knife cut, adopted high-quality alloy cutting tools, sharp and durable.

Delivery, payment and services

1.delivery time: 70 days after receiving the deposit

2. payment terms:30% for the prepayment by T/T and 70% for the downpayment by T/T before delivery or irrevocable L/C at sight can be available, too.

3. Packing details: wooden pallets and cases with stretching films

4. Guaranteed time: 18 months for the machenical parts and 12 months for the electrical parts.

5. Service: we will send 1-2 engineers to customers' factory to help them install, test the machine and also train their workers, but customers should bear the round tickets, accommodation, and salary etc

.
