Handheld Stainless Steel Aluminum Copper Metal Laser Welding Machine 1500W

• After-sales Service：Online Service
• Warranty：2 Years Warranty
• Application：Biomedicine, Electronic Industry, Automotive Industry, Manufacturing Industry
• Technical Class：Continuous Wave Laser
• Control：Automatic
• Power Density：Deep Fusion Welding

=== Base Info ===

• Model NO.：XTW1500
• Laser Classification：Optical Fiber Laser
• Type：Optical Fiber Transmission Laser Welding Machine
• Laser Source：Raycus Max Ipg
• Welding Head：Qilin Hanwei Double Wobble
• Chiller：Built-in
• Touch Screen：Yes
• Control System Language：8 Language Optional, English French
• Auto Wire Feeder：Yes
• Consumables：Protective Lens and Nozzles
• Protective Glasses：Yes
• 1kw and 1.5kw Power Required：220V,Single Phase
• 2kw Power Required：380V
• Fiber Optical Length：8m
• Auxiliary Gas：N2,Argon
• Spot Size：Spot Diameter Is Adjustable, From 0.2 to 5mm.
• Spot Mode：6 Spot Mode Optional
• Welidng Gun Weight：1kg
• Transport Package：Plywood
• Specification：143*82*135cmx280kg
• Origin：China
• HS Code：8515809090

=== Description ===

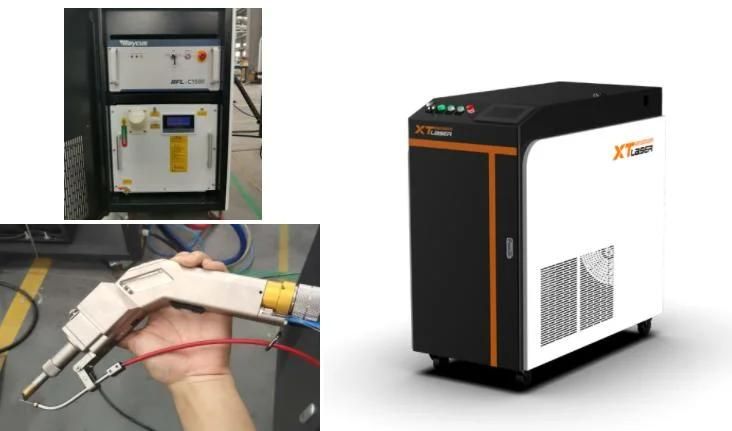

Overview Machine photo

Welding head is double wobble type.
6 spot mode optional:  Spot; line;"O",double"O";triangle;"8"type
spot diameter is adjustable, from 0.2 to 5mm.

Brand is optional.
For 1kw 1.5kw, Hanwei and Qilin brand.
For 2kw,Hanwei brand.

Technical date  MaterialMax welding deptNo.Machine power1kw1.5kw2kw1Stainless Steel≤2mm≤3mm≤5mm2Mild Steel/ Iron≤3mm≤4mm≤6mm3Aluminum/ brass≤2mm≤3mm≤4mm

Working videos xt laser handheld weldinghttps://youtu.be/2Yy3vZt8y2QStainless steel weldinghttps://youtu.be/2Auwmeq0q8IBrass weldinghttps://youtu.be/2kc1ijc4rJIstainless steel weldinghttps://youtu.be/fXO8B_MmjXQSamples

Detailed Photos

Packing

Machine size (L*W*H):115*62*117cm
Net Weight:260kg

Package size:143*82*135cm/71*35*48cm
Gross Weight:280kg/48kg
Package type:Ply-wood case;
