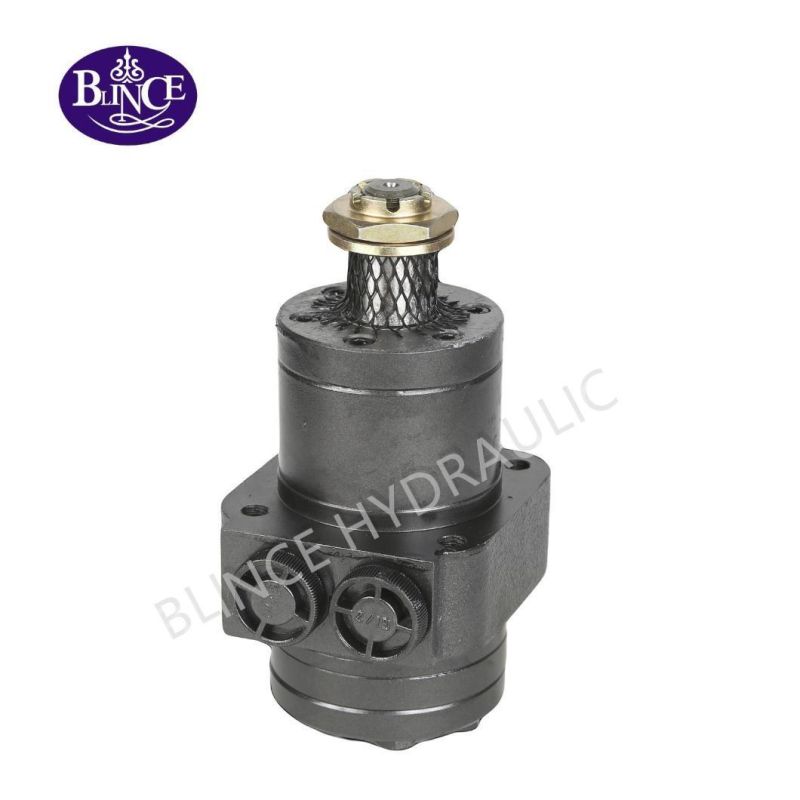

Omph200-H4-K-P Replace Eaton Char-Lynn 101-1005-009 Orbit Motor

• Certification：GS, RoHS, CE, ISO9001
• Excitation Mode：Excited
• Power Rating：2000W
• Casing Protection：Protection Type
• Number of Poles：6
• Speed：High Speed

=== Base Info ===

• Model NO.：101-1005-009
• Type：Hydraulic Motor
• Structural：Hydraulic Cycloid Motor,Hydraulic Orbit Motor
• Usage：Hydraulic Oil
• Material：Cast Iron
• Flow Distribution：Axial Distribution Type
• Shaft Type：Parallel Key,Splined Tooth,Woodruff Key,Pin Hole
• Diameter of Shaft：25.4mm,25mm,22.22mm Staright
• Flange Type：Rhomb-Flange,Square-Flange
• Application：Medium and Low Duty Tasks
• Auxiliary Components：Oil Filter
• Hydraulic Power Units：Vane Pump
• Transport Package：Plastic Tube +Carton+Wooden Pallets
• Specification：ISO9001
• Trademark：Blince
• Origin：Guangdong, China (Mainland)
• HS Code：8412291000
• Production Capacity：1000 Sets Per Month Meet Your Requirment

=== Description ===
TypeOMPH
36OMPH
50OMPH
80OMPH
100OMPH
125OMPH
160OMPH
200OMPH
250OMPH
315OMPH
400OMPH
500Geometric displacement
(cm3/rev.)3651.777.796.2120.2157.2194.5240.3314.5389.5486.5Max.speed  (rpm)con.15001150770615490383310250192155120 int.16501450960770615475385310240190150Max.torque (N.m)cont.55100146182236302360380375360385 int.76128186227290370440460555525560 peak96148218264360434540550650680680Max.output  (KW)cont.8.010.010.011.010.010.010.08.57.06.05.0 int.11.512.012.013.012.012.012.010.58.57.06.0Max.pressure
Drop   (Mpa)cont.12.5141414141414119.07.06.0 int.16.517.517.517.517.517.517.5141410.59.0Max.flow  (L/min)cont.5560606060606060606060 int.6075757575757575757575Net Weight(kg)5.65.65.75.96.06.26.46.76.97.48.0

Friends, Welcome to BLINCE Hydraulics Kingdom. We can offer more than 3000 diffrent orbital motors, categorised in types, variants and sizes (incl. Diffrent shaft versions).

OMPH series motor are small volume, economical type, which is designed with shaft distribution flow,
Which adapt the Gerotor gear set design and provide compact volume, high power and low weight.

Characteristic features:
* Advanced manufacturing devices for the Gerotor gear set, which provide small volume, high efficiency and long life.
* Shaft seal can bear high pressure of motor of which can be used in parallel or in series.
* Advanced construction design, high power and low weight.

Blince OMPH series high speed orbital motors.
Key data:
1) Displacement range 36 to 500 cc
2) Speed up to 1650rpm/min
3) Torque up to 680N? M
4) Output up to 13.0kW
5) Pressure drop up to 22.5MPa (225bar)
6) Flow up to 75 l/min [19.8 US gal/min]
7) Pilot diameter Ø 82.5 [3.25 in]
8) Mounting flnge A2/A4
9) Output shaft Ø 25.4mm / Ø 25mm / Ø 22.22mm cylindrical shaft [1 inch cylindrical shaft]
10)Port connection G1/2, G1/4 / 7/8-14[7/16-20UNF] / 1/2-14[7/16-20UNF] / 3/4-16[7/16-20UNF] / PT(RC)1/2, PT(RC)1/4 / Ø 10 O-ring[4X5/16-18UNC, 7/16-20UNF] / Ø 10 O-ring manifold 4xM8[7/16-20UNF]

Benefis:
* High power density
* High effiency
* High constant quality
* Reliable

The Blince OMPH series motors are used in the following application areas:
1) Construction equipment
2) Agricultural equipment
3) Material handling & Lifting equipment
4) Forestry equipment
5) Lawn and turf equipment
6) Special purpose
7) Machine tools and stationary equipment
8) Marine equipment

BLINCE OMPH HYDRAULIC MOTOR CAN SUBSTITUE FOR:
* Eaton Motor JH Series
* Eaton Motor H Series (101-)
* Parker Motor TC/TB/TS/TE Series
* White Drive Product WD/145 Series
* M+S Motor MP/MLHP Series
* Brevini Motor BHS Series

Warranty:
1. Guarantee for one year or 1000 hours (according to whichever ends first) from the purchasing date on.
2. During the guarantee period, our company will provide the easy-damaged spare parts for problems
Caused by our quality of production or raw material. Pls provide the defective appearance and related invoice number.
3. Sorry for you should responsible for the freight come-and-go, and the custom tax.
4. After expiration, our company can provides cost spare-parts maintenance for engines.
5. To save the cost, you can choose send the motor back without packing.
6. My dear friend, your emails can be get within one business day. If you do not receive our reply, please kindly re-sent your email or give us a call any time.

If you have any questions or other hydraulics informations what I can do for you. Please contact me directly or visit our website. The best service you will get soon! : )

WHY US:
1. We are leading profesional manufacturer of Hydraulic motor in Guangdong China. Our products have been exported to more than 50 countries including Africa, Middle East, South America and Asia.
2. We are not only produce normal models, but also produce new models according to your design.
3. Professional service team and competitive price will give you a perfect purchasing experience.


BLINCE HYDRAULIC MOTOR
Blince profssion supply all series hydraulic motor like OMM/OMP/OMPH/OMR/OMRS/OZ/OK/OMH/OMSY/OMT/OMV hydraulic orbit motor, hydraulic pump like ( PV2R series / V/VQ series / SQP series ) vane Pumps.


Blince hydraulic motor Can perfectly replace:
Dan :OMM/ OMP/ OMR/ OMH/ OMS/ OMT/ OMV/ DH/ DS series hydraulic motor.
Eaton : J (129-) series, H(101-) series,S(103-) series,T(158-)series,2000(104-) series,6000 series orbit motor
M+S : MM,MLHM/MP,MLHP/ MR,MLHR/ MH,MLHH/ MS,MLHS/ MT,MLHT/ MV,MLHV hydraulic motor.
White : MP/RS/MR/RG/HB/CE/RE series hydraulic motor
Parkers : TE/ TG/ TF series hydraulic motor.
Sam Brevini : BGM/ BG/ BR/ HPR/ HT hydraulic motor
Recroth : MGX/ MGP, GXP/ MGR, GMR/ MGS, GMS / MGT,GMT/ MGV, GMV series hydraulic motor.



OUR COMPANY
Dongguan Blince Machinery & Electronics Co., Ltd was established in the year of 2004, which specializing in design, manufacture and sales of hydraulic components. Blince Hydraulics has become the leading manufacturer of hydraulic components, as well as a well known enterprise in the world.
Specializing in design, manufacturing and sales of hydraulic product include hydraulic orbital motor, radial piston motor, hydraulic pump, hydraulic steering control unit, oil cooler, hydraulic system and more, with over 15 years experience on products research and development.
Orbital motor from small OMM type to large torque OMS, OMT and OMV series. Vane pump include Yuken PV2R series, Vickers V/VQ series and Tokemic SQP series. Radial piston motor like NHM1 to NHM31.
We are located in Dongguan city which is an manufacturing city nearby Shenzhen port and Guangzhou port. It is very convenient for us to arrange shipment by sea.
For hydraulic equipment, please look for Blince!
