Animal Single Shafe Shredder for Pig/Shepp /Cattle

=== Base Info ===

=== Description ===

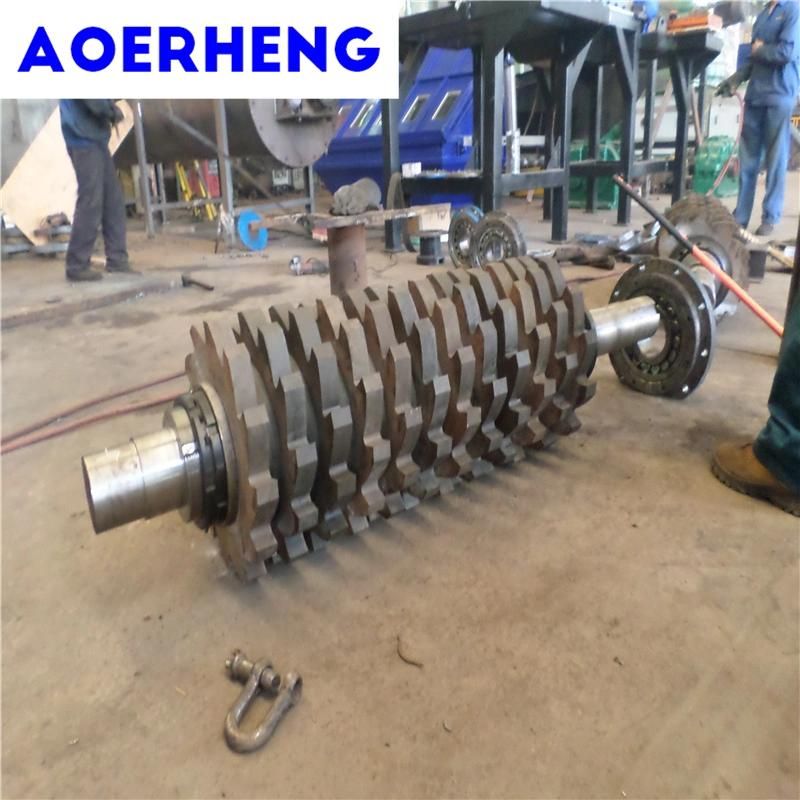

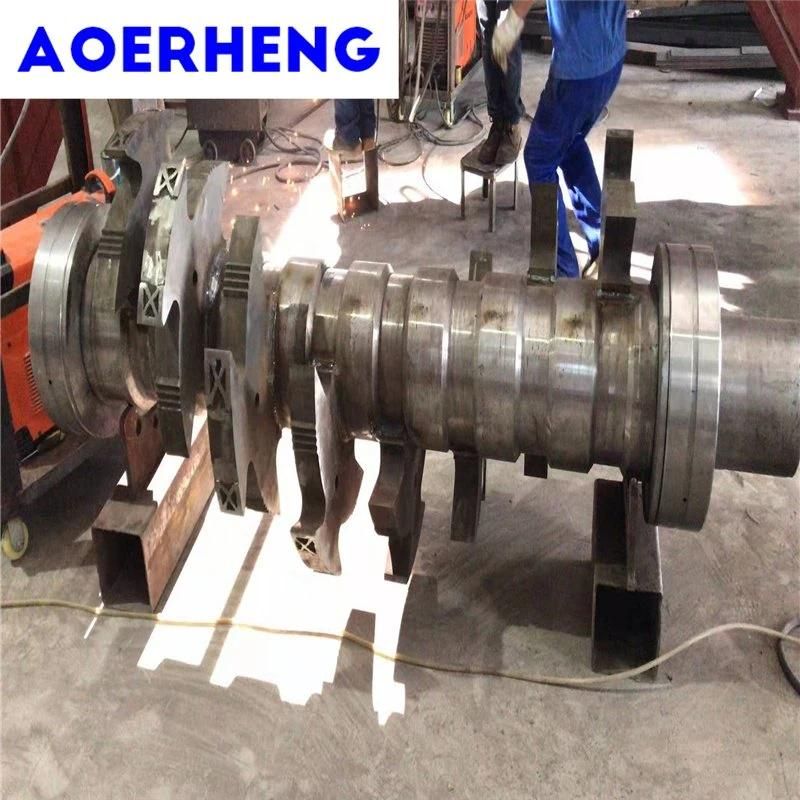

OEH environmental protection series single shaft shredder is a heavy load cutter crusher. This series of products are equipped with a single

motor reducer to complete the overall crushing of materials through the interaction between the main shaft crushing moving knife and the

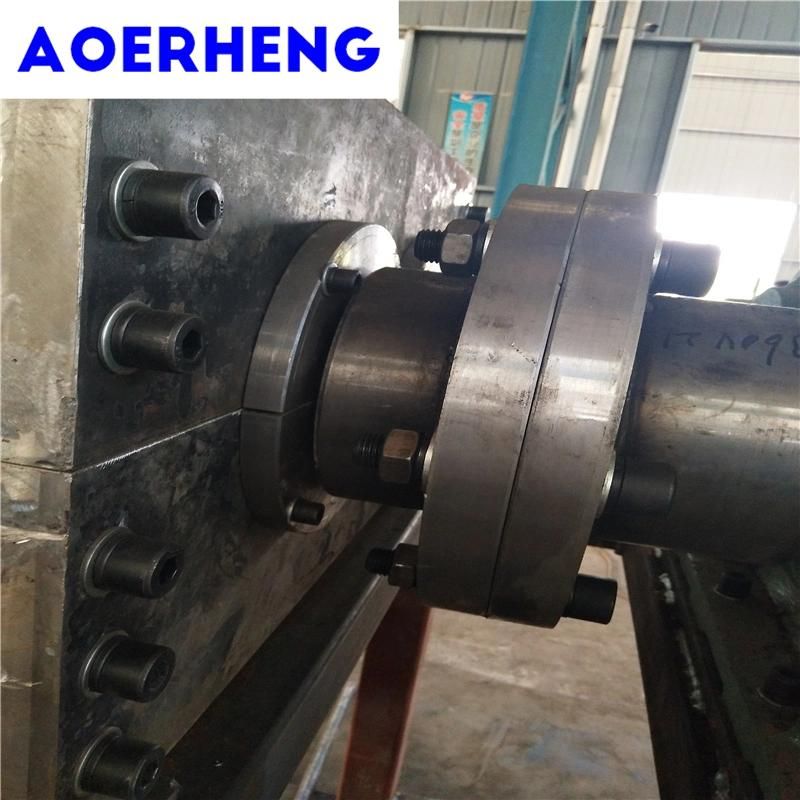

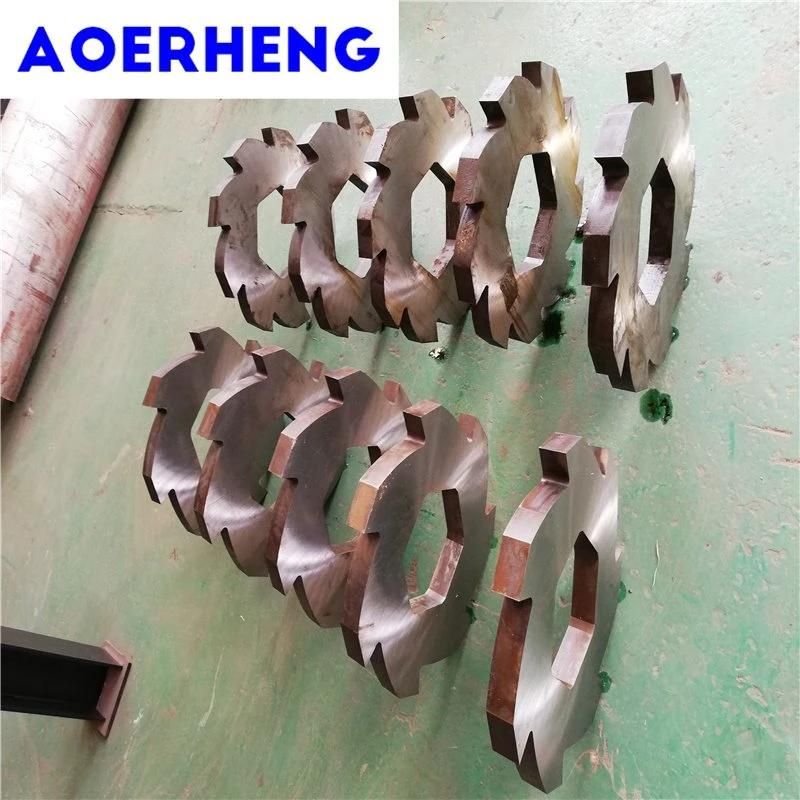

static knife on both sides. The equipment is compact, but its core is very powerful. Alloy knife material. A variety of protection, reinforced

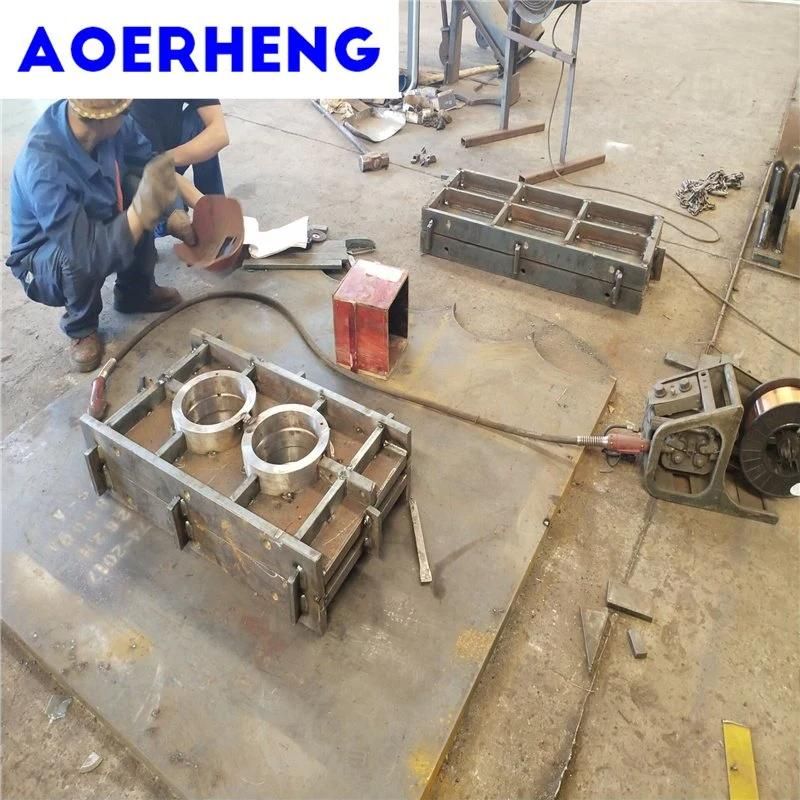

bearing seat. Our equipment has reasonable price, mass production and exquisite workmanship. Each process is like heat treatment. There are

strict requirements for hardness testing and structural flaw detection.




2.Support customization:

3.Main technical parameters:model
  HEHJ-P1200power30kwoverall dimension 3100*1000*1900(mm)weight30tsuitable materialfrozen meat board. aggregate  .medium and large poultrytheoretical capacity6-10t/h   Different materials have different capacitydischarge size5-8(cm)reamer outer diameter500mmspindle speed49turn/minwelding technologyIntegral weldingframe material150*100*5 pitch tube4.Widely used in the following industries:
 Harmless treatment centerAnimal fat factoryLivestock farmOrganic fertilizer liquid fertilizer plantSlaughterhouseFood oil factoryKitchen Waste Disposal YardIt can crush more than 100 kinds of materials


5. Equipment operation:
 5.1 preparation:
before starting the machine, first check whether there are materials, sundries and jamming in the crushing chamber; before

starting the machine every day, check whether all fasteners are completely fastened, and deal with them immediately if they are loose; check

the lubrication of each rotating part before starting the machine 5.2 start up:
the machine and transmission parts can be started up only after the inspection proves that they are in normal condition; the

machine must only be started under no load, otherwise it is easy to damage the motor, reducer, coupling, etc; start (jog the test run first) if

there is any abnormal condition or abnormal sound, stop the start immediately, find out the cause and eliminate the fault before starting again5.3machine operation:
When the machine is running, the maintenance personnel should often go to the side of the machine to observe the operation: whether the

machine has abnormal sound. If it occurs, first determine the position, and then stop the machine for inspection and treatment; whether the

temperature rise of the motor is too high. Under normal conditions, the maximum temperature shall not exceed 80 ºC; check whether the bolts

at the rotating part are loose. If they are loose, stop the machine immediately.5.4shut dowu:
Before the machine stops working normally, the feeding shall be stopped first, and the crusher can be stopped only after all materials in the

standby are broken. In case of machine failure or dangerous situation, the power supply can be cut off immediately.


6.Enterprise certification:

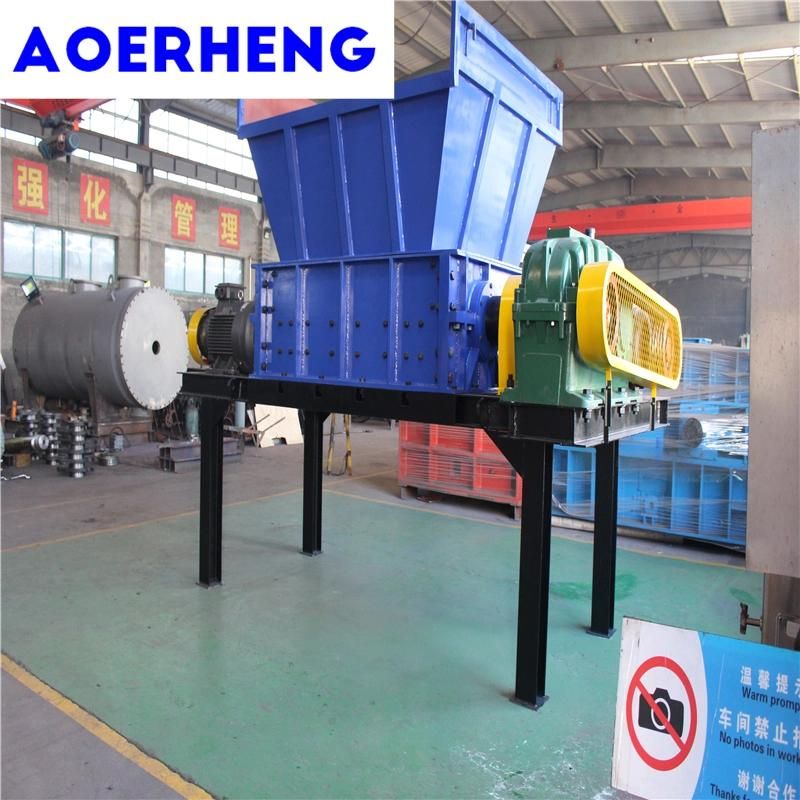

7.Photo:

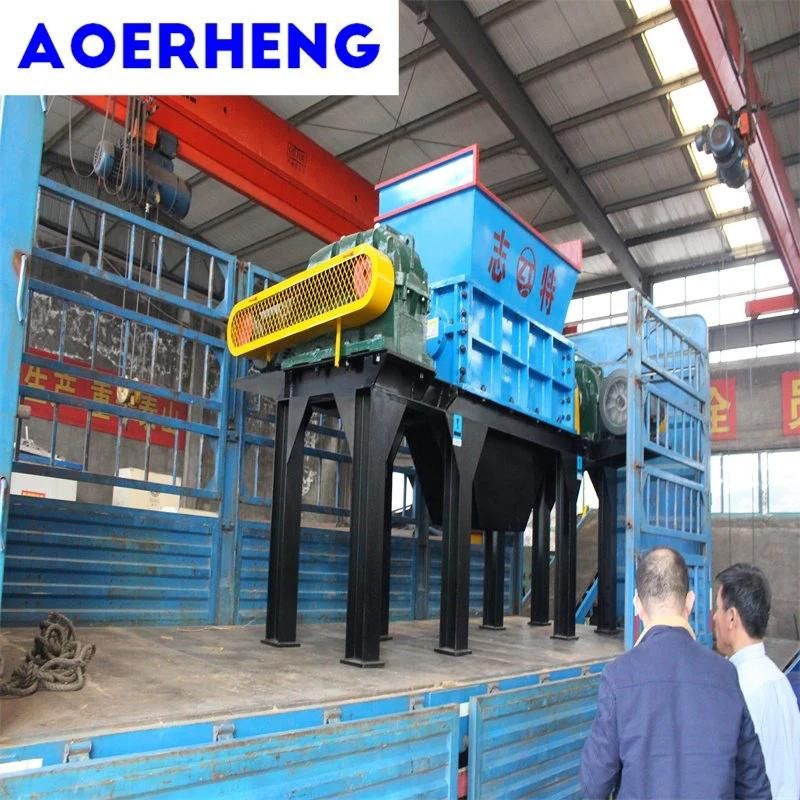

8..Transport:
