Parker Type 3 Stages Sat S63DC-102-126 Single Acting Replacement Dump Truck Hoist Cylinder

• Certification：CE, ISO9001
• Pressure：Medium Pressure
• Work Temperature：Normal Temperature
• Acting Way：Single Acting
• Working Method：Straight Trip
• Adjusted Form：Regulated Type

=== Base Info ===

• Model NO.：S63DC-102-126
• Structure：Piston Type
• Material：Alloy Steel
• Sku：3771413326
• Stroke：126.00"
• Transport Package：Plywood Case
• Specification：Stages: 3
• Trademark：ROCA
• Origin：China
• HS Code：8412210000
• Production Capacity：1000000

=== Description ===
Parker Type Single Acting Telescopic Cylinder ROCA Model No.Model No.First Stage DiameterStrokeRetracted LengthExtend LengthXM S53DC-66-723TG F5*725" 12772"(1829mm)37.19" (945mm)109.19" (2773mm)XM S53DC-65-1263TG F5*1265" 127126.63" (3216mm)54.56" (1386mm)181.19" (4602mm)XM S63DC-101-863TG F6*866" 152.486.75" (2203mm)40.88" (1038mm)127.63" (3241mm)XM S63DC-97-1113TG F6*1116'' 152.4111" (2819mm)49.94" (1268mm)160.94" (4087mm)XM S63DC-102-1203TG F6*1206'' 152.4120" (3048mm)53.5" (1359mm)173.5" (4407mm)XM S63DC-101-1403TG F6*1406'' 152.4140.25" (3562mm)59.81" (1519mm)200.06" (5081mm)XM S64DC-12-1354TG F6*1356'' 152.4135" (3429mm)47.19" (1199mm)182.19" (4628mm)XM S64DC-14-1564TG F6*1566'' 152.4156" (3962mm)53.62" (1362mm)209.62" (5324mm)XM S73DC-66-1403TG F7*1407" 177.8140.44" (3567mm)60" (1524mm)200.44" (5091mm)XM S73DC-66-1503TG F7*1507" 177.8150" (3810mm)63.50" (1613mm)213.50" (5423mm)XM S74DC-74-1204TG F7*1207" 177.8120" (3048mm)44.12" (1120mm)164.12" (4168mm)XM S74DC-74-1674TG F7*1677" 177.8167" (4242mm)56.38" (1432mm)223.38" (5674mm)XM S74DC-74-1804TG F7*1807" 177.8180" (4572mm)61.12" (1552mm)241.12" (6124mm)XM S84DC-66-1484TG F8*1488" 203.2147.75" (3753mm)51.50" (1308mm)199.25" (5061mm)XM S84DC-66-1564TG F8*1568" 203.2156" (3962mm)53.75" (1365mm)209.75" (5327mm)XM S85DC-66-2505TG F8*2508" 203.2249" (6325mm)68.62" (1743mm)317.62" (8068mm)XM S85DC-66-2655TG F8*2658" 203.2265" (6731mm)71" (1803mm)336" (8534mm)XM S95DC-52-3205TG F9*3209" 228.6320" (8128mm)83" (2108mm)403" (9628mm)XM S95DC-52-3405TG F9*3409" 228.6340" (8636mm)87" (2210mm)427" (10846mm)




Hydraulic cylinders are the most effective and efficient method of pushing, pulling, lifting, and lowering. Nowadays hydraulic cylinders play an essential role in daily application and industry:
√ Mining
√ Earthmoving & Construction
√ Agriculture &Forestry
√Waste Management & Material Handing

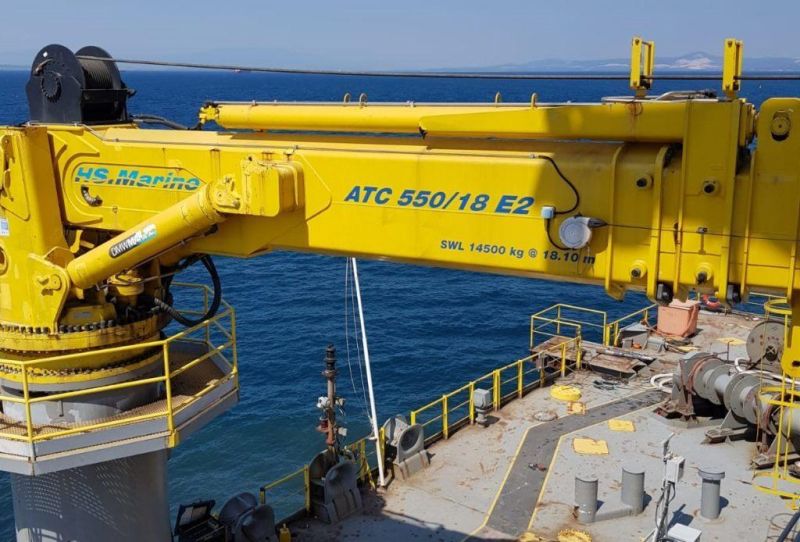

√Ship crane & offshoreSelect the right cylinders for an application is critical in obtaining maximum performance and reliability. ROCA team takes all your concerns into consideration to suit your hydraulic cylinder requirements. Together, we work out the best design solution for your application.
