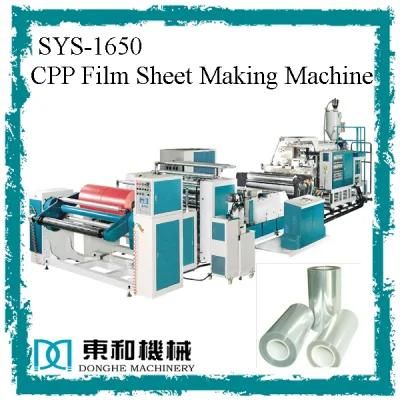

CPP Film Sheet Extrusion Line

=== Base Info ===

=== Description ===
As we continously keep working on research and improvement,we preserve the right to change all of the specification,design and charactersitics on this catalogue without notice. Thickness of extruded PP film:
0.03~0.20mmT-die width:
1, 650mmApplicable width of the film:
1, 450 mm (max. ) depends on product thickness Max output:
240 kgs/hr (max. ) varies according to thickness, products and system of operations output, flatness and thickness within ± 5% tolerance. Installed power:
140kwAbsorbed power:
Minimum 50-75kwAir chiller refrigerater capacity: 45, 400 kcal/hrCompressed air (min 6 bar):
Pressure: 7kgf/cm²Exhaust: 0.7m³/min

Product Certification:
A)extruder: 1. Extruder screw and barrelø100mm X 36: 1 l/d (material 38 crmoal) by auto temperature control 6 zones and heating capacity 45kw2. Manifold
No. 1 zone 1.1kw temerature control3. Static mixer
Swiss/German mande 60mm X 240mm4. Screen changer
By hydraulic cyclinder auto temperature control 1 zoneHeating capacity: 10.8kw5. Hydraulic system
Oil system with 60 litre capacity power 2.2 kwFor operation of screen changer and forward/backward movement of extruderFrom calender unit6. Extruder of gear reduceritaly r21 200 up2a 1: 11.27. Extruder main driving motorac 75HP X 6p (55kw) inverter control8. T-die
1650mm t-dieMono layer flat by auto temperature control 11 zonesLip opening: 0-1.0mm9. Auto loader hopper / dryerconveying capacity 300kgs per hr / capacity 100kgs
