Polywood Laser Cutting Machine for Die Cutting

Qingdao Wellpaper Industrial Co., Limited / 2022-06-23

Polywood Laser Cutting Machine for Die Cutting

  • Application:Home Appliance, Environmental Equipment, Petroleum Machinery Manufacturing, Agriculture Machinery, Textile Machinery, Food Machinery, Shoemaking Industry, Woodwork Industry, Advertising Industry
  • Cooling System:Water Cooling
  • Technical Class:Continuous Wave Laser
  • Structure Type:Gantry Type
  • Laser Technology:Laser Control Fault Cutting
  • Cutting Speed:0-36000(mm,Min

=== Base Info ===

  • Model NO.:WT-LC400
  • CNC or Not:Yes
  • Graphic Format Supported:Ai, BMP, Dxf, Dxp, Ai,Plt,Dxf,...
  • Cutting Area:1200*900mm
  • Usage:Die Board Laser Cutting Machine
  • Name:Gy Laser Cutting Machine
  • After Sale:Engineers Available to Service Over Seas
  • Laser Type:CO2 Direct-Current Stimulated Glass Laser
  • Certification:Ce TUV
  • Control Software:Wt Laser Cutting Machine Software
  • Transport Package:Export Standard Wooden Case
  • Specification:size 9m X 8m X 2.3m
  • Trademark:WT
  • Origin:Dongguan City China Prc
  • HS Code:8456100090
  • Production Capacity:1000PCS,Year

=== Description ===

Basic Info.

Model NO. WT-LC400 CNC or Not Yes Graphic Format Supported Ai, BMP, Dxf, Dxp, Ai,Plt,Dxf,... Cutting Area 1200*900mm Usage Die Board Laser Cutting Machine Name Gy Laser Cutting Machine After Sale Engineers Available to Service Over Seas Laser Type CO2 Direct-Current Stimulated Glass Laser Certification Ce TUV Control Software Wt Laser Cutting Machine Software Transport Package Export Standard Wooden Case Specification size 9m X 8m X 2.3m Trademark WT Origin Dongguan City China Prc HS Code 8456100090 Production Capacity 1000PCS/Year

Product Description

Die Board Laser Cutting Machine & Auto Blade Bending Machine For Die Board Making

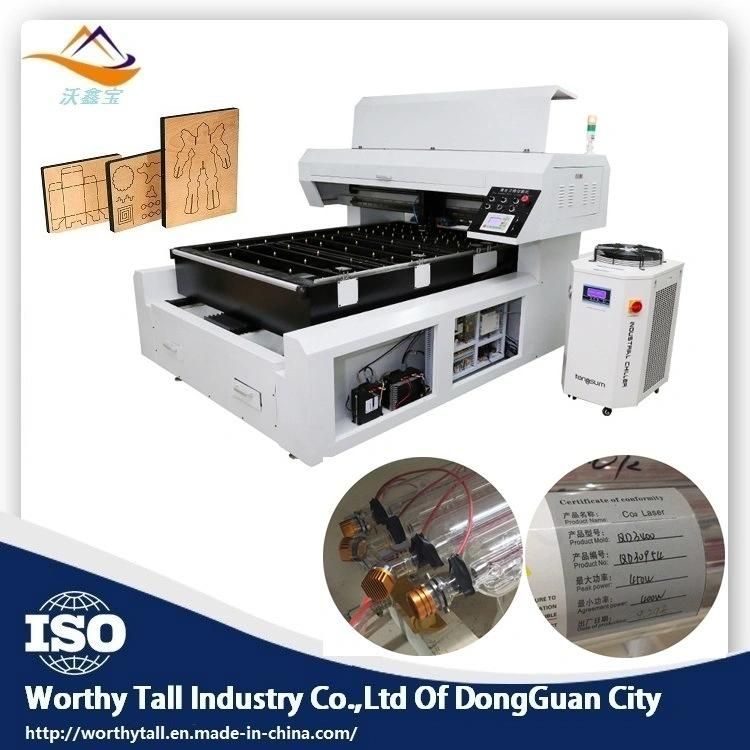

Polywood Laser Cutting Machine for Die Cutting
Polywood Laser Cutting Machine for Die Cutting
  1. The gantry structure, mix optical path, good rigidity, high stability, compact  structure,  covers an area of the smallest.
  2. Special NC  system with Germany PA laser, laser and machine tool control system.
  3. The machine tool system adopts closed optical path of light transmission, quick change drawer type mirror, make sure the lens is clean and long  life time.
  4. Double dedusting  duct, exhaust effect is better.
  5. Can prevent sheet metal mobile workstation equipped with clamp, Ensure Parts processing precision.
  6. The laser cutting header is equipped with inductance contact tracking system is responsive, guarantee the slit width is consistent, Is equipped with a cutting head and plate collision protection device.
  7. CNC electric control console can move, medium height, easy to operate
  8. use upper and lower area dust removal system at the same time, cutting waste from funnel fall into the scrap car, convenient operators regular cleaning.
  9. In U.S. LASERMECH capacitive sensor and cutting head adopts drawer focus lens seat replacement ,cleaning the lens is extremely convenient .Cutting head with the collision protection.
  10. The enclosed light path ,positive pressure dust cleaning ,ensure that the ser vice life of the lens.
  11. Three cutting gas are free to choose ,the pneumatic system adopts the design of high voltage in the cutting of stainless plate. The nitrogen pressure of 2.0Mpa.
Technical parameters
Effective Processing range(mm)1200x1800/200x2400
The X axis(mm)1200
Y The X axis(mm)1800/2400
The Z axis stroke(mm)80
X/Y location accuracy(mm/m)+- 0.03
X/Y repeat positioning accuracy(mm/m)+-0.01
X/Y fast moving speed(m/min)15
Machine tool positioning speed(m/min)50
The workbench maximum loads300
Knife template cutting thickness(mm)1-30
Knife template cutting speed(m/h)75-220
Working voltage380v  50hz

Machine Details:

Polywood Laser Cutting Machine for Die Cutting
Polywood Laser Cutting Machine for Die Cutting

Polywood Laser Cutting Machine for Die Cutting


>>> Package & Shipping

Each machine is well packed with export standard wooden box.
We will make photos for the machine before the shipping and let you know the processing of the packing and loading.




>>> Our Services
1. Our machine is guaranteed for one year, not including normal consuming parts.
2. 24 hour technical support by email or calling +86-137-1262-4566.
3. User-friendly English manual and Video CD for machine using and maintaining.
4. Our self-developed English software can do all kinds of pattern recognition.
5. We supply 1 year warranty and life-Long engineering service.


>>> Please Let Us Know
1.what machine do you need?
2.what materials will be processed? The size and thickness?
3.what is your business scope? Are you end user or distributor?


Die Board Laser Cutting Machine

Any more product information, please contact us !  Customer Needs is my Pursuit !
