Steam Heat Mixing Cook Pot

• Power Source：Electric
• Process：Thermal Processing
• Automatic Grade：Semi-Automatic
• Type：Mix Filling Machines
• Voltage：380V
• Customized：Customized

=== Base Info ===

• Model NO.：100L-500L
• Material：SS304, SS316L
• Transport Package：Wooden Box
• Specification：50L-600L
• Trademark：Tianlong
• Origin：Wenzhou, China
• Production Capacity：1000 Sets Per Week

=== Description ===
Volume L100200300400500Main Body Diameter800mm900mm1000mm1100mm1200mmHeating TypeSteamSteamSteamSteamSteamPower1.5+1.51.5+1.51.5+1.52.2+1.54+1.5Size1680*1400*14501800*1600*15501900*1750*16502000*1850*17002050*2010*1750
Application :
Applied for cooking congee, soup, food, meat in food factory , hotel , restaurant, guesthouse, dining hall , enterprises, government department , college canteen etc  .

And also can be used for condiment,coating procook , fry, mix and concentrate .

Structure :

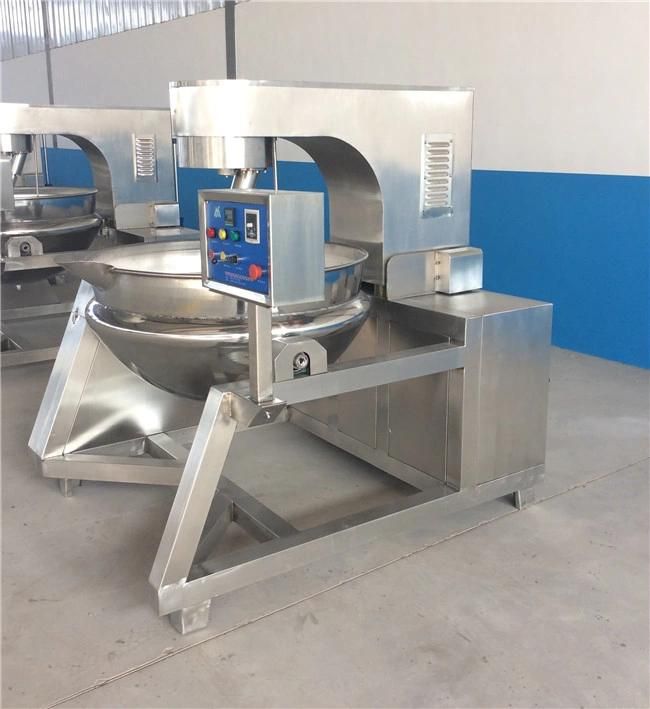

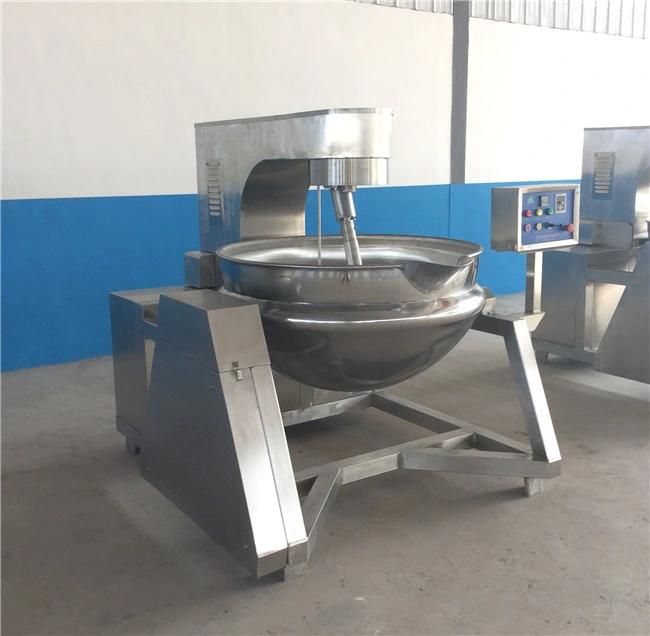

The equipment is steam heating jacket kettle ,control temperature through control steam pressure , equip with pressure gauge and safety valve, short boiling time .

Auto control saves labor , reduce risk of wrong operation . reduce cost .

material contact part is made of SS304 which is in accordance with sanitary food grade.

All welding has been polished which has beautiful outlook .

Insulation layer is Aluminum Silicate , it prevent operator been scald, and no need heat all the time or heat frequency .

The temperature controller are digital display , easy operate . We also equip leakage circuit breacker to keep safe.

They are large heat area , high heat efficiency , stable heating , short time boiling , heat fast .

Manual tilt discharge food .
