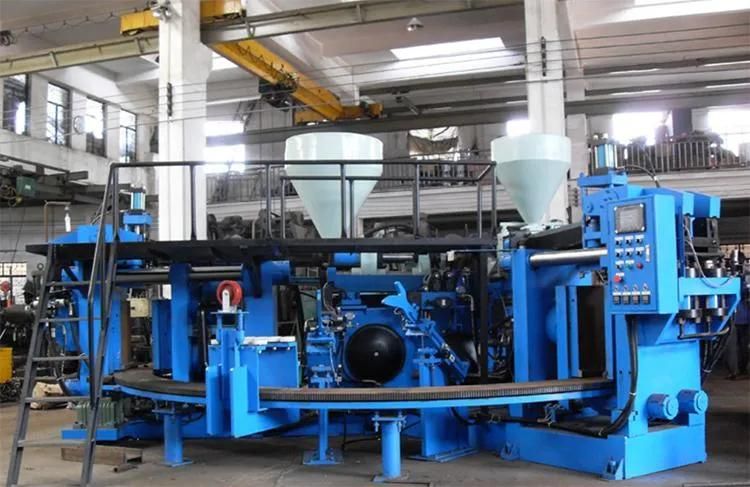

2022 Hot Sale Yugong Double Color Shoe Sole Making Injection Molding Machine

=== Base Info ===

=== Description ===
Overview Product Description

Product ParametersModelYG-2J16Number of stations16pcsProduction capacity250Pairs/hMax injection vol.520cm3Votalge380V, 50HzPower25KwTemperature control4ºCScrew diameter75/70mmInjection speed12cm/secInjection stroke180mmScrew rotation speed0-140r/minScrew length and diameter ratio18:01:00Plastifying capacity40g/sMax injection pressure50Kg/cm2Max the Disc system pressure25Kg/cm2Clamp mould styleScissorsLast trip60mmShoe Cramp height210-260mmMould frame dimensions380*180*60mmSize6500*3200*2250mmWeight9800KgDetailed Photos

Packaging & Shipping

Company Profile
