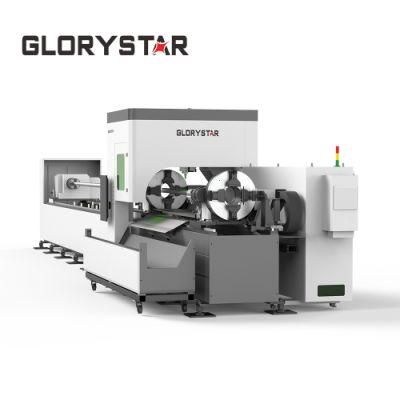

High Standard Metal Tube Laser Cutting Machine with Latest Technology

• Application：Environmental Equipment, Aerospace Industry, Automotive Industry, Sheet Metal Processing
• Cooling System：Water Cooling
• Technical Class：Continuous Wave Laser
• Applicable Material：Metal
• Structure Type：Large Full-Enclosed & Exchangeable Worktable
• Laser Classification：Fiber Laser

=== Base Info ===

• Model NO.：GS-TG
• Laser Technology：Laser Control Fault Cutting
• Laser Source：Ipg Fiber Laser
• Laser Type：Germany Rofin 1000-6000W, Ipg 1000-6000W
• Control System：Optional
• Appearance Design：Glorystar
• Drag Chain Tow：Import
• Metal：Square Pass, Round Pipe, Elliptical Pipe, Angle IR
• Application Industry：Kitchen Utensils, Lighting Hardware, Precision PAR
• Application Materials：Carbon Steel, Stainless Steel, Copper, Aluminum
• Materials：Galvanized Pipe, and Other Metal
• Transport Package：Packaged by Plywood
• Specification：CE, SGS, FDA, Bureau, ISO
• Trademark：Glorystar
• Origin：China
• HS Code：8456100090
• Production Capacity：3500sets,Year

=== Description ===
High security -- Large inner hole of chuck,high safety for automatic loading&unloading
Strong stability -- Integral built-in drive structure, gear and rack linkage, greatly improving transmission accuracy and stability
Intelligent ----self-adaptive pipe diameter, supporting different sizes of pipes, no need to replace the jaws
Top precision -- The roller accuracy is 0.005mm, and the clamping accuracy is less than 0.1mm
Good dustproof effect -- Built-in gear to avoid cutting dust from entering
Low noise -- Top gear grinding precision in the industry
Small inertia -- Realize high-speed processing and meet the rapid cutting of small pipe fittings
Less tailings -- The material can reach the front chuck as far as possible to realize ultra-short tail cutting
Strong clamping force -- The claw adopts a special friction surface to ensure that the clamping pipe does not slip off

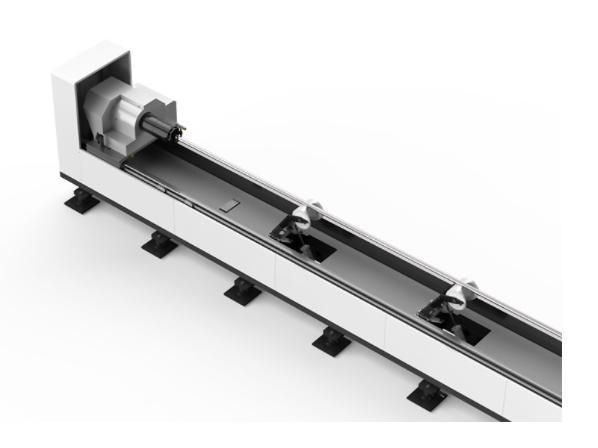

High rigidity -- Barrel structure design, high supporting rigidity and strong stability
Shaped tube clamping -- With dedicated jaws, it can clamp non-closed pipes, such as channel steel (C-shaped steel), I-beam (H-shaped steel). Optional double-row roller jaws for efficient cutting of very small tubes (10~30 mm) Supporting two fewer-tailing cutting modes at the same time, which can be selected on the software interface to meet the needs of fewer-tailing cutting of different pipe diameters
Insert the main chuck into the front chuck to shorten the distance between the main chuck and the cutting head to shorten the tailings

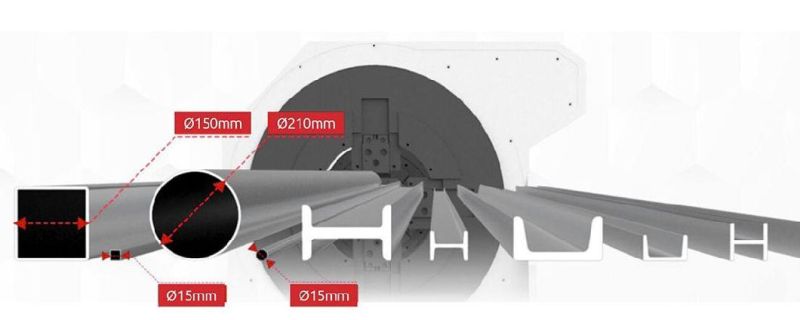

When the workpiece is longer or the pipe size is larger,the front chuck moves to ensure cutting accuracy Support square pipe with a side length of 15-150mm, round pipe with a diameter of 15-210mm, and special-shaped pipe processing such as channel steel (C-shaped steel), I-beam (H-shaped steel), etc. The cutting shape is complete, meeting diversified processing needs,ultra-high cost performance.Variable diameter wheel support,suitable for a wide range of pipe diameters, flexible and convenient, manual adjustment, without changing the support, greatly improving production efficiency.

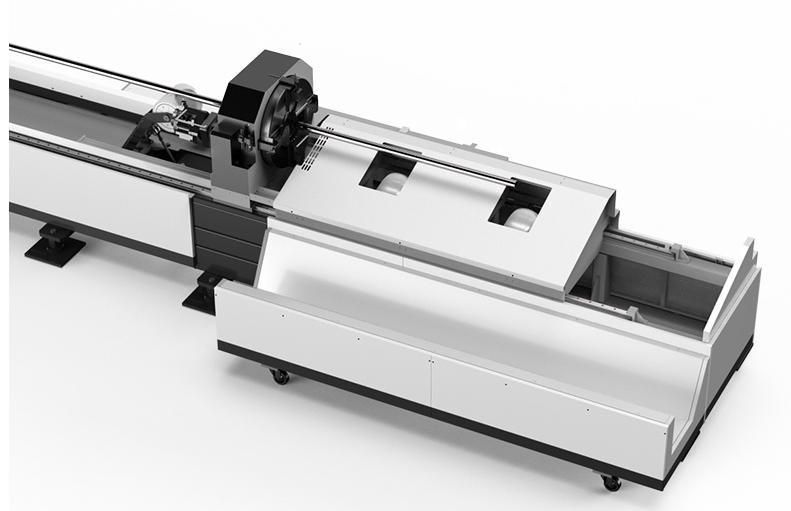

Efficient automatic unloadingThe two variable diameter wheels at the blanking place automatically rise and fall, supporting the workpiece when rising, and the workpiece slides down automatically when falling,greatly improving productivity.
  Independent research and development of intelligent cutting system
1. Dedicated pipe cutting CNC system, supporting breakpoint positioning, continued cutting, corner process setting and other functions
2. Automatically measure the deviation of the pipe to improve the cutting accuracy
3.With special pipe cutting and nesting software, supporting single-part, multi-part nesting, co-edge, automatic sorting and other functions
Product Parameter
 1000-3000(optional)Working Area(mm)6000mm*Φ120mm6000mm*Φ220mm6000mm*Φ320mmOverall Dimensions(mm)12500*2500*265012500*2500*265012500*2500*2650
