Steam Electric Heating Jacket Tank with Mixer Mixing Pasteurizer

NINGBO HAISHU JUDIN PACKING PRODUCTS CO., LTD. / 2022-07-05

Steam Electric Heating Jacket Tank with Mixer Mixing Pasteurizer

  • After-sales Service:Online Service
  • Warranty:One Year
  • Name:Steam Electric Heating Jacket Tank with Mixer Mixi
  • Material:Sanitary Stainless Steel 304,316,316L
  • Capacity:Tank 200L, 300L, 400L, 500L, 1000L
  • Pasteurizer Tank:Pasteurize and Mix The Milk, Juice, Beverage

=== Base Info ===

  • Model NO.:KQ Series
  • Tank Type:with Half Lids Cover or Manhole
  • Mixing Speed:36rpm, 48rpm, 96rpm, 2900rpm
  • Heating Source:Electric Heating Bars Oil,Hot Water in The Jackets
  • Working Life Span:More Than 10years
  • Delivery:10 Days
  • Motor Brand:Siemens ,ABB,China Brand
  • MOQ:1 Set
  • Packing:Wooden Box
  • Voltage ,Hz,Phase:Make It to Your Order .
  • Cleaning:CIP Cleaning .
  • OEM:Yes
  • Transport Package:Standard Export Wooden Box
  • Specification:ISO
  • Trademark:KQ
  • Origin:Shanghai China
  • HS Code:8479820090
  • Production Capacity:100sets Per Month

=== Description ===

Basic Info.

Model NO. KQ Series Tank Type with Half Lids Cover or Manhole Mixing Speed 36rpm, 48rpm, 96rpm, 2900rpm Heating Source Electric Heating Bars Oil/Hot Water in The Jackets Working Life Span More Than 10years Delivery 10 Days Motor Brand Siemens /ABB/China Brand MOQ 1 Set Packing Wooden Box Voltage ,Hz,Phase Make It to Your Order . Cleaning CIP Cleaning . OEM Yes Transport Package Standard Export Wooden Box Specification ISO Trademark KQ Origin Shanghai China HS Code 8479820090 Production Capacity 100sets Per Month

Product Description

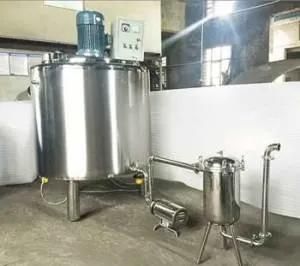

Steam Electric Heating Jacket Tank with Mixer Mixing Pasteurizer
STEAM HEATING JACKET TANK WITH MIXING AGITATOR
Stainless steel Mixing tank with agitator
Steam Electric Heating Jacket Tank with Mixer Mixing Pasteurizer

Product information
Blending preparation tank , also called as materials blending tank or materials mixing tank , have the advantages such as being energy saving , corrosion-proof , strong productivity and easy to clean etc .
And it is mainly used for blending and homogenizing of dairy products , sugar , other elements and various medicines , as an indispensable equipment for dairy products, beverage and pharmacy manufacturers . It is made of SUS304 or 316 stainless steel , and it in accordance with GMP production standard .
It is a type of tank makes enzymes decompose in optimum conditions and converts certain substances into some other substances with better performances through action of enzymes . The jackey can be used for heating or cooling , attached with external heat preservation layer .
Working  princicle
  The materials are heated and mixed in water pot and oil pot to be fully reacted. Sucked into emulsifying pot by vacuum pump, the materials are stirred by both the center blade and side scraper, which works on the inner surface of pot keeping stirring material from being stuck onto the wall. In the process of blade-stirring, the materials are continuously crushed, pressed, folded. Then, the materials are sent to the cut-off mixing unit where they are again cut off, broken and stirred by the strong interaction between running cutting wheel and cutting sheath. The materials are finally crushed into small pellets of 200mm-2um. Besides, because of the vacuum in emulsifying pot, the bubbles generated during stirring and mixing process are sucked out from material
Configuration
1) Manhole
2) CIP cleaner
3) Adjustable triangle bracket
4) Ladder
5) Thermometer
6) Liquid lever meter and controller
7) Eddy-proof board
8) Dismountable Inlet assembly
9) Sanitary breathing cover
TechnicalEffective volumeDimension                 of tankTotal heightDiameter of inlet&outletHeat preservation layerMotor powerBlending speed(L)(mm)(mm)(mm)(mm)(kw)(r/min)500840*1000275060380.55Common rotation speed 35,43,60 ; stepless speed reducer or dual-speed reducer are also available Steam Electric Heating Jacket Tank with Mixer Mixing Pasteurizer
TankCapacity(L)200, SS304300, SS304500, SS3041000,SS304
REV36r/min36r/min36r/min36r/min
Electric motor of the agitator0.55KW,380v,50hz0.75KW,380v,50hz0.75KW,380v,50hz1.1KW,380v,50hz
Electric heating tube power15KW,380v,50hz18KW,380v,50hz24KW,380v,50hz45KW,380v,50hz
Heating Area(M2)0.91.11.94.5
Material Input/output(DN MM)38383850
OUTSIDE DEMENSION(L*W*H)MM900*900*16001000*1000*15001100*1100*17001400*1400*1750
GROSS WEIGHT(KGS)150200300450
