Chocolate Enrobing and Coat Chocolate Line

• Certification：CE
• Power Source：Electric
• Application：Chocolate, Biscuit, Cake
• Customized：Customized
• Wire Mesh and Belt Width：800mm
• Wire Mesh and Belt Speed：0-7,Min

=== Base Info ===

• Model NO.：QT800
• Refrigeration Unit：3
• Conveyor Speed：0-10m,Min
• Cooling Tunnel Length：15m
• Cooling Tunnel Temperature：0-10ºC
• Total Power：9.17kw
• Weight：4000kg
• Outside Dimensions：19050*1200*1860mm
• Materials：Stainless Steel
• Transport Package：Wooden Packing
• Specification：Outside dimensions19050*1200*1860mm
• Trademark：SHINWEI
• Origin：Shanghai
• Production Capacity：45sets,Year

=== Description ===

Basic Info.

Model NO. QT800 Refrigeration Unit 3 Conveyor Speed 0-10m/Min Cooling Tunnel Length 15m Cooling Tunnel Temperature 0-10ºC Total Power 9.17kw Weight 4000kg Outside Dimensions 19050*1200*1860mm Materials Stainless Steel Transport Package Wooden Packing Specification Outside dimensions19050*1200*1860mm Trademark SHINWEI Origin Shanghai Production Capacity 45sets/Year

Product Description

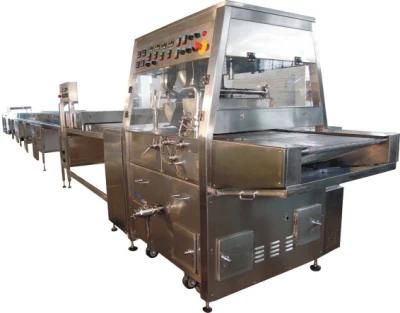

QT 800 Chocolate  Enrobing  LineFeatures:
The enrobing line is used to enrobe chocolate on various food products such as biscuit, wafers, egg rolls, cake pie and snacks etc. Cooling tunnel is available in this complete line. It can also coat chocolate on bottom-side for your option.
1. The machine is a special equipment which is used for producing assorted chocolates. It can coat chocolates in the surface of many kinds of kinds of foods.
2. Such as candy, case and biscuit et, chocolate product have many various flavors.
3.It can coat chocolates think liquid in the surface of many kinds of kinds of Foods.

Main Technical Specifications:

Model	QT800
Wire mesh and belt width (mm)	800
Wire mesh and belt speed (m/min)	0-7 m
Refrigeration unit	3
Conveyor speed	0-10m/min
Cooling tunnel length (m)	15
Cooling tunnel temperature  (ºC)	0~10
Total power (kw)	9.17
weight(kg)	4000
Outside dimensions(mm)	19050*1200*1860

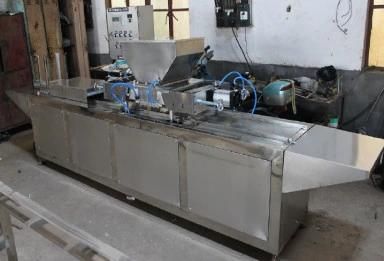

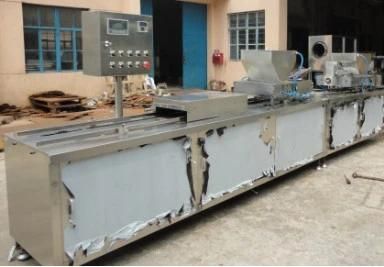

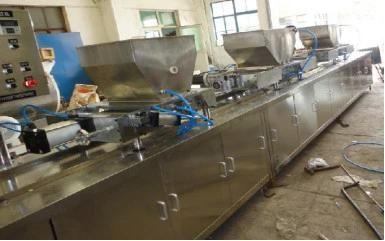

Machine and produciton:











EQUIPMENT LIST:

ITEM NO.	EQUIPMENT	QTY
1	Conveying belt	1pcs
2	Enrobing unit	1pcs
3	Controlling cabinet	1pcs
4	Chocolate warm keep and circulating system	1set
5	Cooling tunnel (15m)	1pcs
6	Refrigeration unit	3pcs
7	Frame	1set
8	Accessories	1set

Materials: all parts contact with foods are made by Stainless steel 304 ,machine frame made by stainless steel 201.

Material of conveyor belt :Food grade PU belt

With draw able charging cylinder

Conveyor match with position correcting device

Delta brand PLC and touch screen Controlling

Match with 15m cooling tunnel ( two sets of 3HP and one set of 5HP Refrigerators ).

Refrigeration unit : Emerson Copeland (America)

Grundfos brand water pump

3m mesh belt as spare parts

The covers can be opened by gas spring

Electric components : China brand

Motor brand : China brand

Converter : Delta

Air cylinder : Air TAC (Taiwan )

Belt pneumatic alignment device


Wooden Packing:

1. Product production is completed, by the quality inspection department to check
2. After inspection qualified, clean for whole machine
3. Packing:

    a. Inside the machine put desiccant

    b. Add 6 cm thick foam plate around the machine,Then, winding stretch film for reinforcement, and combined with bubble wrap

    c. On wood packaging on the outside of the machine, then use metal reinforcement with steel
4. Container: according to different products for reinforcement.



After-Sale Service For Abroad Customers:

1. Free training of machine installation, operation and maintenance will be provided by our engineer.
2. Some spare parts will be sent with the machine for free. It is available to buy the parts from us forever at low price.
3. We will surpport customers after-service forever by call, email and video etc.
4. If necessary, our engineer is available to go to customer's factory for machine installation and adjustment.
