Fully Automatic Plastic Bottled Water Filling Line

• Condition：New
• Customized：Customized
• Voltage：380V
• Composition：Water Treatment Equipment
• Processing Material：Water
• Process：Water

=== Base Info ===

• Model NO.：WD24-24-8
• State：New
• Quality：High
• Filling Valve Head：Multi-Head
• Feed Cylinder Structure：Single-Room Feeding
• Structure：Rotary
• Processing Type：Filling Machine
• Warranty：1 Year
• Packaging：Bottle
• HS Code：84223010, 8422301090
• Filling Principle：Atmospheric Pressure
• Transport Package：Wooden Case
• Specification：CE ISO9001
• Trademark：worita
• Origin：Zhangjiagang
• Production Capacity：100set,Year

=== Description ===

Basic Info.

Model NO. WD24-24-8 State New Quality High Filling Valve Head Multi-Head Feed Cylinder Structure Single-Room Feeding Structure Rotary Processing Type Filling Machine Warranty 1 Year Packaging Bottle HS Code 84223010, 8422301090 Filling Principle Atmospheric Pressure Transport Package Wooden Case Specification CE ISO9001 Trademark worita Origin Zhangjiagang Production Capacity 100set/Year

Product Description

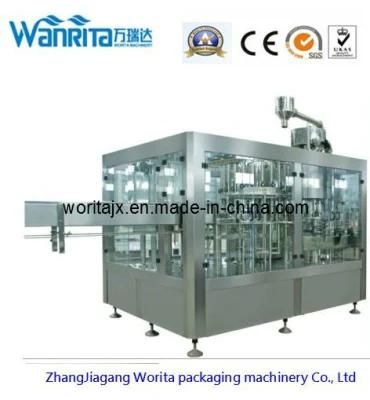

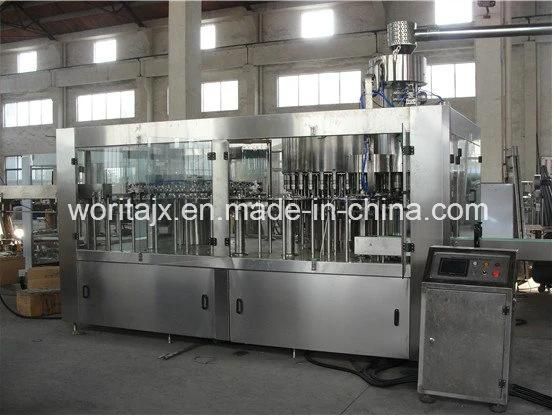

                                                                    Fully Automatic Plastic Bottled Water Filling Line

WORITA RFC-W series Water filling machine, bottle filling machine,water bottling machine are specially designed to fill non-carbonated drink such as still water, flavor water, & wine in any shape 200ml to 2250ml PET bottles or glass bottle with screw caps, standard automatic  3-in-1 water filling line pressure caps or crown capping. Monobloc rinser filler capper design.

 Feature of  standard automatic  3-in-1 water filling line :

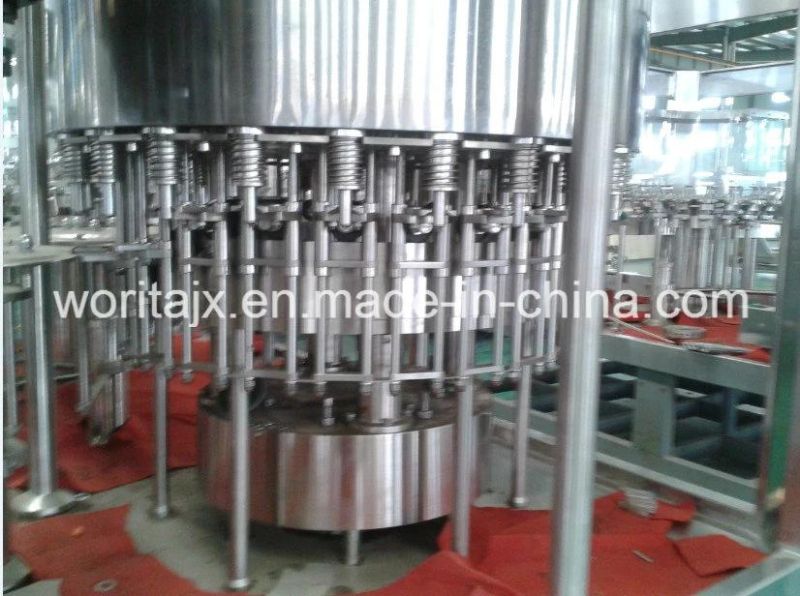

·  Advanced gravity filling technology from Germany and Italy is applied on the machine, which assure quick filling and high accuracy of liquid level control.

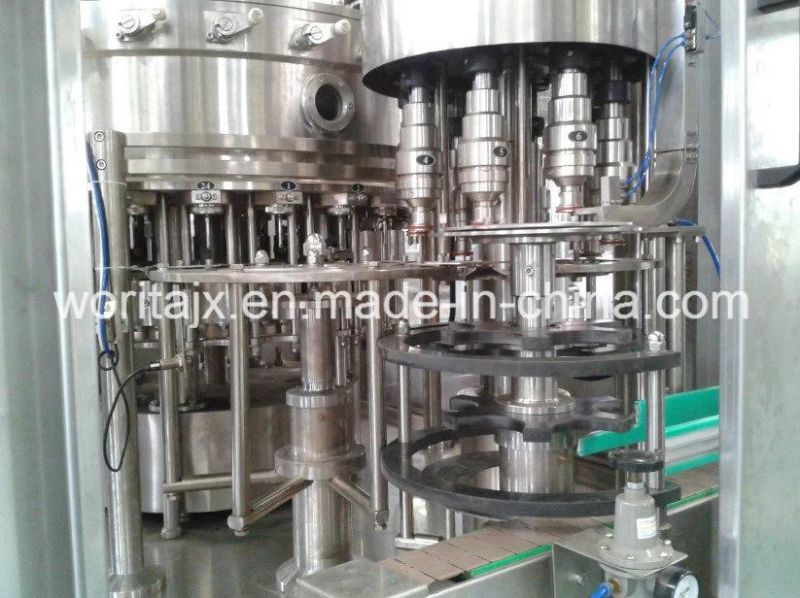

·  Magnetic torque is applied on bottle screw-capping. Constant screw capping power can be adjustable stepless and therefore will not hurt the bottles at all.
· Horizontal swirl cap sorting device is applied to avoid damaging caps. No caps, no capping; No caps, feeding system run automatically.
· Human-machine interface touch-screen and PLC control system are adopted on the machine. Liquid level in the tank is controlled automatically. No bottles, no filling, no capping.
· All parts connected with water are made of food grade stainless steel.
All main components makers are world-known manufacturer.
