3015/4020/6020 Double Table Full Cover Fiber Laser Cutting Machine

Shenzhen Liked Development Co., Ltd / 2022-06-23

After-sales Service：on-Line Service
Warranty：2 Years Warranty
Application：Home Appliance, Environmental Equipment, Agriculture Machinery, Textile Machinery, Aerospace Industry, Automotive Industry, Advertising Industry
Cooling System：Water Cooling
Technical Class：Continuous Wave Laser
Applicable Material：Metal

=== Base Info ===

Model NO.：PLUTO 3015D
Structure Type：Gantry Type
Laser Classification：Solid Laser
Laser Technology：Laser Flame Cutting
Laser Source：Max,Raycus,Ipg,N-Light
Laser Head：Raytools,Ospri,Precitec
Control System：Cypcut
Laser Power：2kw-20kw
Servo Motor：FUJI,Yaskawa
Reducer：Motor Reducer
Rack&Gear：Yyc
Guide：Hiwin
Pneumatic Components：SMC
Electric Parts：Snd
Transport Package：Wooden Packing
Specification：20GP
Trademark：Remcor
Origin：China
HS Code：845611
Production Capacity：3000 Sets,Year

=== Description ===
PLUTO-ParametersModelPLUTO-3015DPLUTO-4020DPLUTO-6020DPLUTO-12025DLaser power 1000-15000 W1000-15000 W1000-15000 W1000-15000 WTable size 3000*15004000*20006000*200012000*2500Max. Positioning speed120120120120Positioning precision± 0.03± 0.03± 0.03± 0.03Repeated positioning precision± 0.01± 0.01± 0.01± 0.01X/Y Axis Max. AC speed1.5G1.5G1.5G
1.5G 3015/4020/6020 Double Table Full Cover Fiber Laser Cutting Machine Main Parts

NO.	Item	Brand	Noted
1	Working body	REMCOR	Welding body
2	IPC computer (Win 7 )	REMCOR	China
3	Water chiller	Domestic	China
4	Automatic height adjuster	Raytools auto	Switzerland
5	Control system	Cypcut	China
6	Reducer	MOTOREDUCER	France
7	Laser source	MAX/Raycus/IPG	China
8	Laser head	Raytools	Switzerland
9	Rack, gear	YYC	Taiwan
10	Guide	HIWIN	Taiwan
11	X,Y,Z axis servo motor	Fuji	Japan
12	Electrical components	Imported	Imported
13	Pneumatic Components	SMC	Japan
14	Exhaust fan	REMCOR	China
15	Independent control cabinet	REMCOR	China

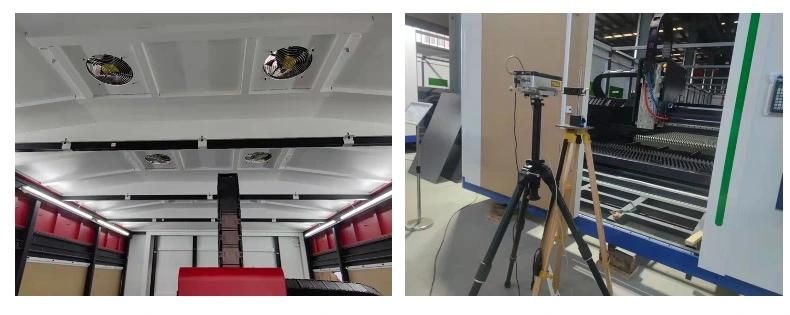

Accuracy Assurance System Details

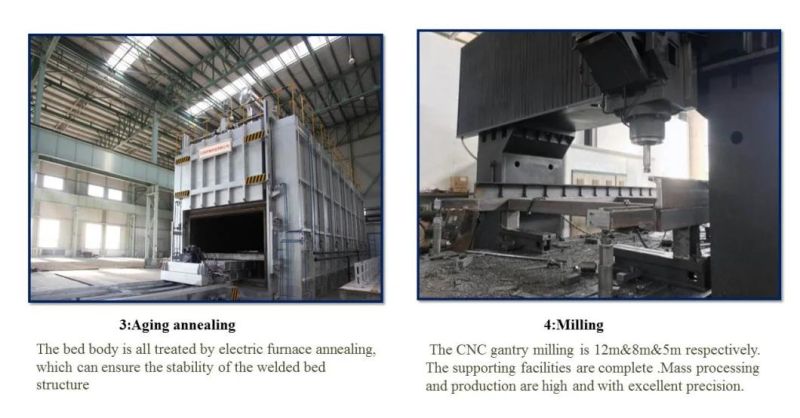

Fiber Laser Cutting Machines, the most important is the bed stability, other parts can upgrade or change new ones, but once bed is broken, how can still work ? 3015/4020/6020 Double Table Full Cover Fiber Laser Cutting Machine

Remcor, we are serious to check all the details to make sure the bed precision and to upgrade the bed manufacturing process to make strong bed 3015/4020/6020 Double Table Full Cover Fiber Laser Cutting Machine
