Foam Round Cutting Machine (XYQ-2150A/2300A)

=== Base Info ===

=== Description ===

Basic Info.

Model NO. XYQ-2150A/2300A Turning Speed 5-30mm/Min Blade Length 9350/9650mm Transport Package Wooden Case Specification XYQ-2150A/2300A Trademark XIDENGBAO Origin China(Mainland) HS Code 8477800000 Production Capacity 15 Sets /Month

Product Description

Foam Round Cutting  Machine(XYQ-2150A/2300A)

This machine is mostly used for rund foam continuous first for long wafer cutting work, control cutting thickness through change gear(the machine also can choose ball screw and servo control system, change the original gear control cutting thickness, using the latest digital control technology, the operation is more flexible, more accurate cutting precision)

Technical Specifications:

Model	XYQ-2150A	XYQ-2300A
Cutting size(dia*length)	φ2000*L2150mm	φ2000*L2300mm
Cutting thickness	3-25mm	3-25mm
Total power	6.59kw	6.59kw
Blade length	9350mm	9650mm
Turning speed	5-30m/min	5-30m/min
Machine weight	1800kg	2000kg
Machine external size	L4560*W1650*H1950mm	L4710*W1650*H1950mm

 After-sales service




Company Exhibition:

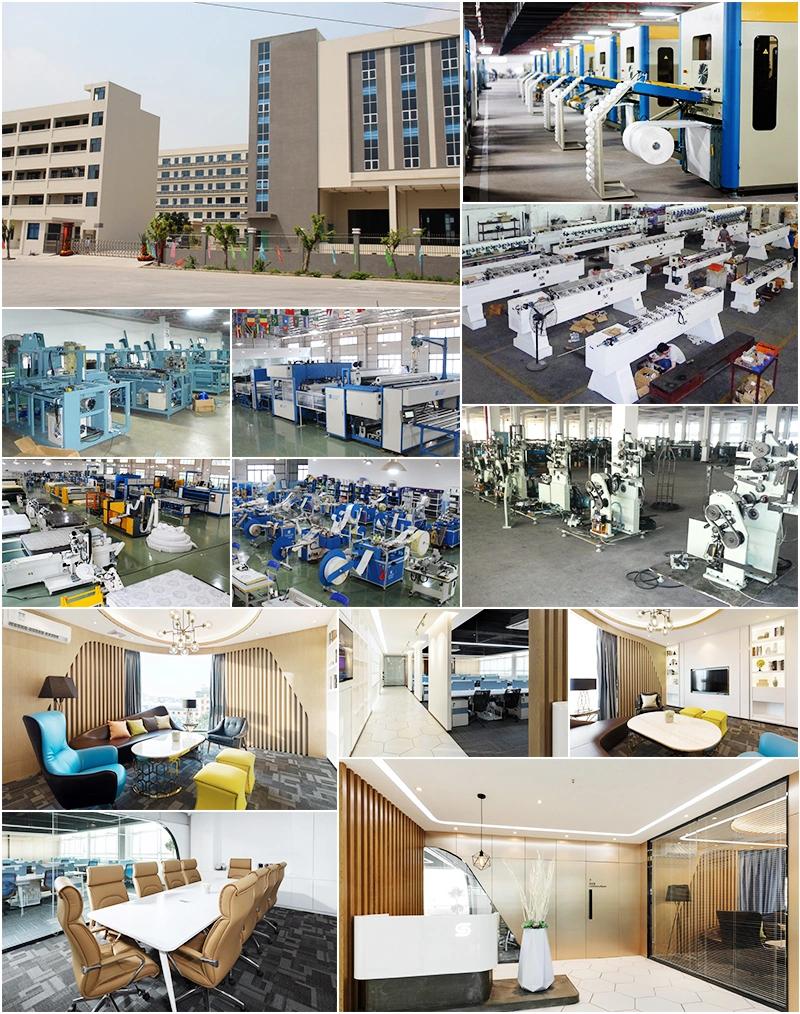

Factory Photos
