Milk Storage Tank Milk Tank Milk Chiling Tank Cooling Tank

NINGBO HAISHU JUDIN PACKING PRODUCTS CO., LTD. / 2022-07-05

Milk Storage Tank Milk Tank Milk Chiling Tank Cooling Tank

  • Process:Frozen and Chilled
  • Power Source:Electric
  • Certification:CE, ISO9001
  • Automatic Grade:Automatic
  • Application:Milk, Yogurt, Milk Powder
  • Customized:Customized

=== Base Info ===

  • Model NO.:KQ100-2000
  • Name:Milk Storage Tank Milk Tank Milk Chiling Tank C
  • Material:Stainless Steel 304,316
  • Cooling Liquid:R22 ,R404A
  • Rated Volume:500-10,000liters
  • Manhole:300-460mm
  • Compressor:USA Copeland
  • Power Supply:3 Phase 380-420V 50Hz
  • Weight:Depending on The Capacity
  • Certified:ISO , Ce
  • Place of Origin:Shanghai China
  • Transport Package:Wooden Box
  • Specification:SANITARY, FOOD GRADE
  • Trademark:KQ
  • Origin:China
  • HS Code:8479820090
  • Production Capacity:1000 to 10000L

=== Description ===

Basic Info.

Model NO. KQ100-2000 Name Milk Storage Tank Milk Tank Milk Chiling Tank C Material Stainless Steel 304/316 Cooling Liquid R22 /R404A Rated Volume 500-10,000liters Manhole 300-460mm Compressor USA Copeland Power Supply 3 Phase 380-420V 50Hz Weight Depending on The Capacity Certified ISO , Ce Place of Origin Shanghai China Transport Package Wooden Box Specification SANITARY, FOOD GRADE Trademark KQ Origin China HS Code 8479820090 Production Capacity 1000 to 10000L

Product Description

Milk Storage Tank  Milk Tank Milk Chiling Tank Cooling Tank
 Diary Milk Cooling Tank Details:
- Type: Vertical type and horizontal type;
- Material: Stainless Steel 304
- Capacity: 500L to 10000L;
- Power: 1.1kw-20kw
- Cooling Capacity: 5kw-70kw
- Agitator: Cooling Tanks for Milk built with agitator
- Speed 32-36rmp/min
- Manual or automatic available
- OEM service available;
 Milk Storage Tank Milk Tank Milk Chiling Tank Cooling Tank

Milk Storage Tank Milk Tank Milk Chiling Tank Cooling Tank
Dairy Milk Cooling Tank Description:
    Milk Cooling Tank is mainly used in preserving and storing fresh milk or other fresh liquid (sour milk, soft drink and wine etc.)cooling, so as to refrigerate and retain freshness, prevent bacterial breed. The milk collection device and vacuum tank use stainless steel and are made by advanced foreign technology. They feature stable vacuum performance and pleasant appearance.
Material: Double-walled stainless steel, resistance to high temperature and
corrosion resistance.
Standard: Design and manufacture according to ISO9001: 200,
ISO9001-2008 and GBT10942-2001 ISO 5708: 1983 refrigerate standard.
Compressor: The milk tank adapt high-performance, low noise, stability.
Display: with control panel and digital could be display.
Insulating: with thickness 60-80mm polyurethane foam to keep thermal insulation.
Cleaning: Automatic clean and wash milk and other liquid, high efficient and convenient.

Dairy Milk Cooling Tank Applications:
1. used in preserving and storing fresh milk cooling;
2. used for other fresh liquid (beer, soft drink and wine etc.)cooling;
3. used to to refrigerate and retain freshness;
4. used to prevent bacterial breed;
5. used in milk collection center or station;
6. used in dairy and food factory;
7. used in pasture and dairy farmer;

Type

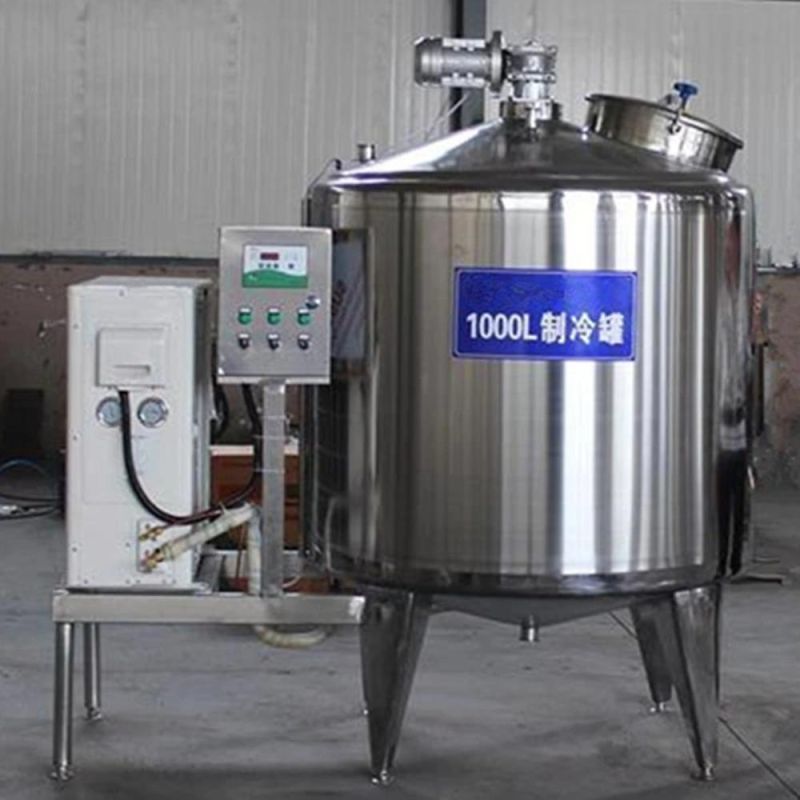

KQ-1T
Vertical type
KQ-2T
Laying type
KQ-3T
Laying type
KQ-5T
 Laying type
KQ-6T
 Laying type
KQ-8T
 Laying type
KQ-10T
 Laying type
Capacity( L)10002000300050006000800010000L
Refrigerating Output (W)9000150002200037000380005500074000
Refrigerating  Fluid(R)R404/R22R404/R22R404/R22R404/R22R404/R22R404/R22R404/R22
Insulating Property≤ 1C/4h≤1C/4h≤1 C /5h≤1 C /5h≤1 C /5h≤1 C /5h≤1 C /6h
Agitator Speed36r/min36r/min36r/min36r/min36r/min36r/min36r/min
Power (Kw)3.85.97.510.5111319.2
Voltage380V/50Hz,3phases380V/50Hz,3phases380V/50Hz,3phases380V/50Hz, 3phases380V/50Hz, 3phases380V/50Hz, 3phases380V/50Hz, 3phases
Dimension(mm)1800*1200*15003400*1550*17503600*1700*19003900*2050*21504500*2050*21506300*2050*22508000 * 2100 * 2400
Weight(Approximately)0.6T 0.75T0.9T1.1T1.3T1.8T
Milk Storage Tank Milk Tank Milk Chiling Tank Cooling Tank
Milk Storage Tank Milk Tank Milk Chiling Tank Cooling Tank
Milk Storage Tank Milk Tank Milk Chiling Tank Cooling Tank
Milk Storage Tank Milk Tank Milk Chiling Tank Cooling Tank
The cooling tank is mainly composed of the body, agitator, cooling unit and electric
control cabinet. The body is made of stainless steel, with precision polish, being difficult
dirt accumulation, corrosion resistance and easy cleaning. Its insulating layer is filled with
rigid polyfoam of lower heat conductivity, being light and with good heat insulation.
 Cooling milk tank is mainly used in cooling to storage sweat milk or other liquid .
It absorbs international advanced technology , adopts improving compress machine
and safety and protection system , micro computer monitor , imported advanced technique
and equipment such as polyurethane bubbling , honeycomb board evaporator .
So it is the ideal cooling and storage equipment for pasture , milk station , milk factory ,
and beverage factory and pharmacy industry .
Adopting internationally-advanced technology of the 1900's it cools by circular and vertical wall. The fully automatic control system makes whole process of observation available. The cooled raw milk can reach rapidly needed temperature of 4~5 and keeps constant, which can prevent the generation of bacteria and make raw milk as Agrade cream.
The adopted imported compressor features high performance, energy saving, full seal and protection system that prevents damage due to overload. Also fitted are high / low liquid level control system and automatic cyclespray and agitating device.
Milk Storage Tank  Milk Tank Milk Chiling Tank Cooling Tank
