High Speed Film Machine HDPE Film Blowing Machine

=== Base Info ===

=== Description ===

Basic Info.

Model NO. FB-D-600 Automation Non-Automatic Computerized Non-Computerized Machine Weight 4T Certification CE, ISO9001:2008 Certificate CE, ISO9001 Guarantee One Year High Ouput 60-120kg/H Transport Package Stretch Film or Wooden Case Specification CE, ISO9001 Trademark HOIN Origin Ruian, Zhejiang, China HS Code 84773010 Production Capacity 30 Set/Month

Product Description

2014 new design high speed film blowing machine

Its extruder, cylinder and screw rods are made of quality alloy steel that have been nitriding and processed in a precision way. Hence it is sound in hardness, durable in corrosion resistance. The specially-designed screw is of sound quality in plasticizing, which helps increase the production capacity. It is applied to blowing the plastic films like low density polyethylene (LDPE), high density polyethylene (HDPE)and linear low density polyethylene (LLDPE), It is widely applied to producing the packing bags for foodstuff, clothing, rubbish bag and vest ones.

Model	FB-D-600
Suitable material	LDPE,HDPE,LLDPE
Layflat width of film	600mm
Thickness of film	0.01-0.1mm
Max extrusion output	60kg/h
Screw diameter	Φ50
Screw L/D	30:1
Screw rotation	10-100r/min
Main motor	18.5KW
Dia of orifice	Φ80mm,120mm
Total power	28kw
Dimension (L*W*H)	4.6*2*4M
Weight	3 T

3.Spare Part List:

1.	filter	1 M	8.	electric -testing pen	1 pcs
2.	magetic stone	1 pcs	9.	hexageonic wrench	1 pcs
3.	air pipe	1 pcs	10.	glove	2 pairs
4.	8-10 open and wrench	1 pcs	11.	Steady Bar	1 pcs
5.	12-14 open and wrench	1 pcs	12.	Mould Pipe	1 pcs
6.	14-17 open and wrench	1 pcs	13.	electric-thermal couple (E)	2 pcs
7.	17-19open and wrench	1 pcs	14.	screw heater(stainless steel)	1 pcs

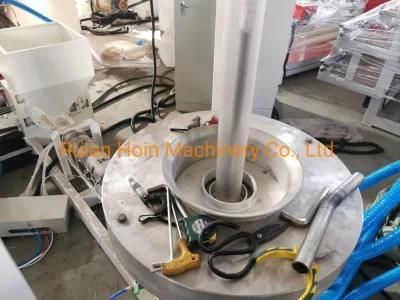

4. Machine Pictures for Reference:

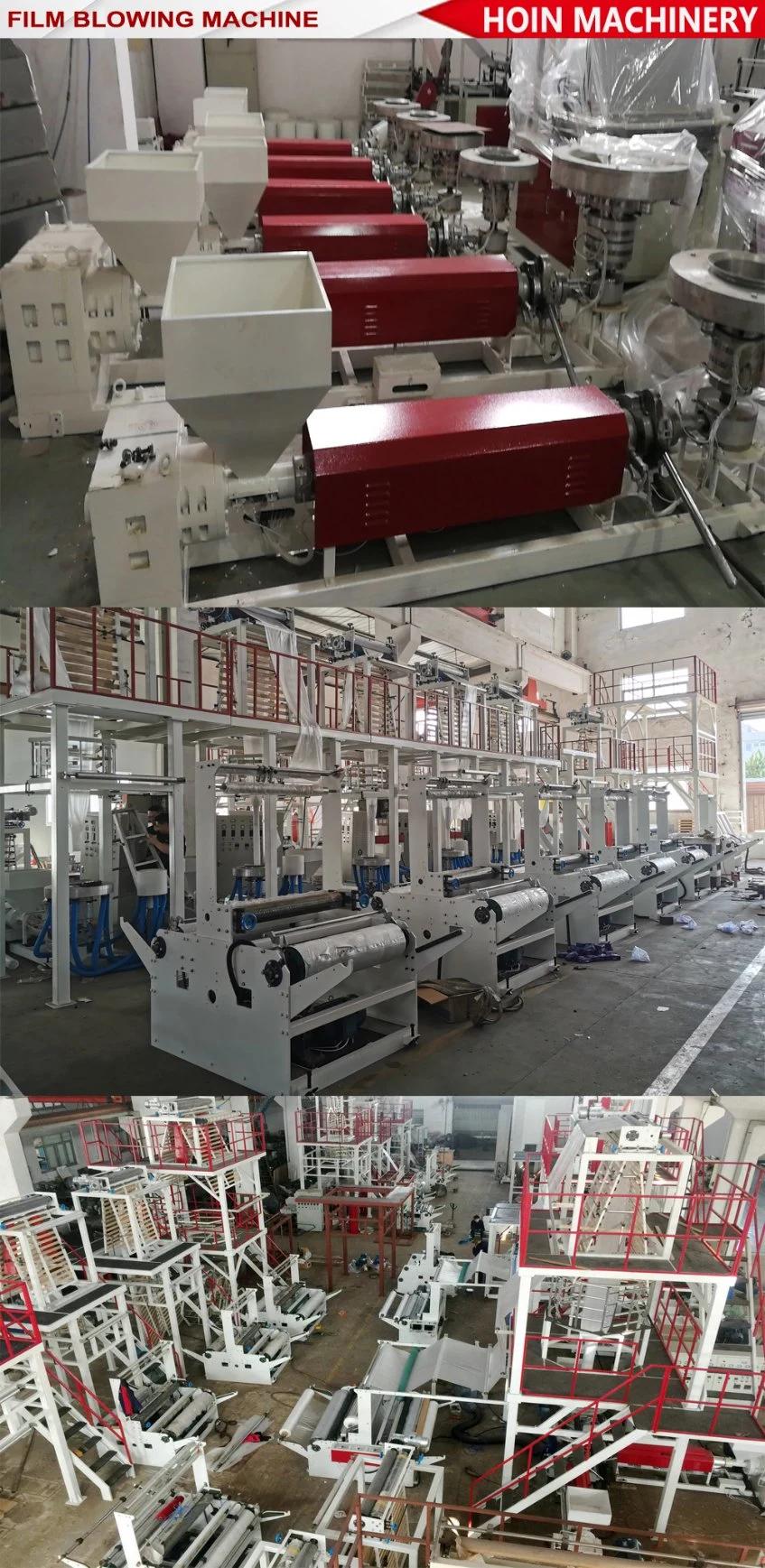

5. Workshop of HOIN

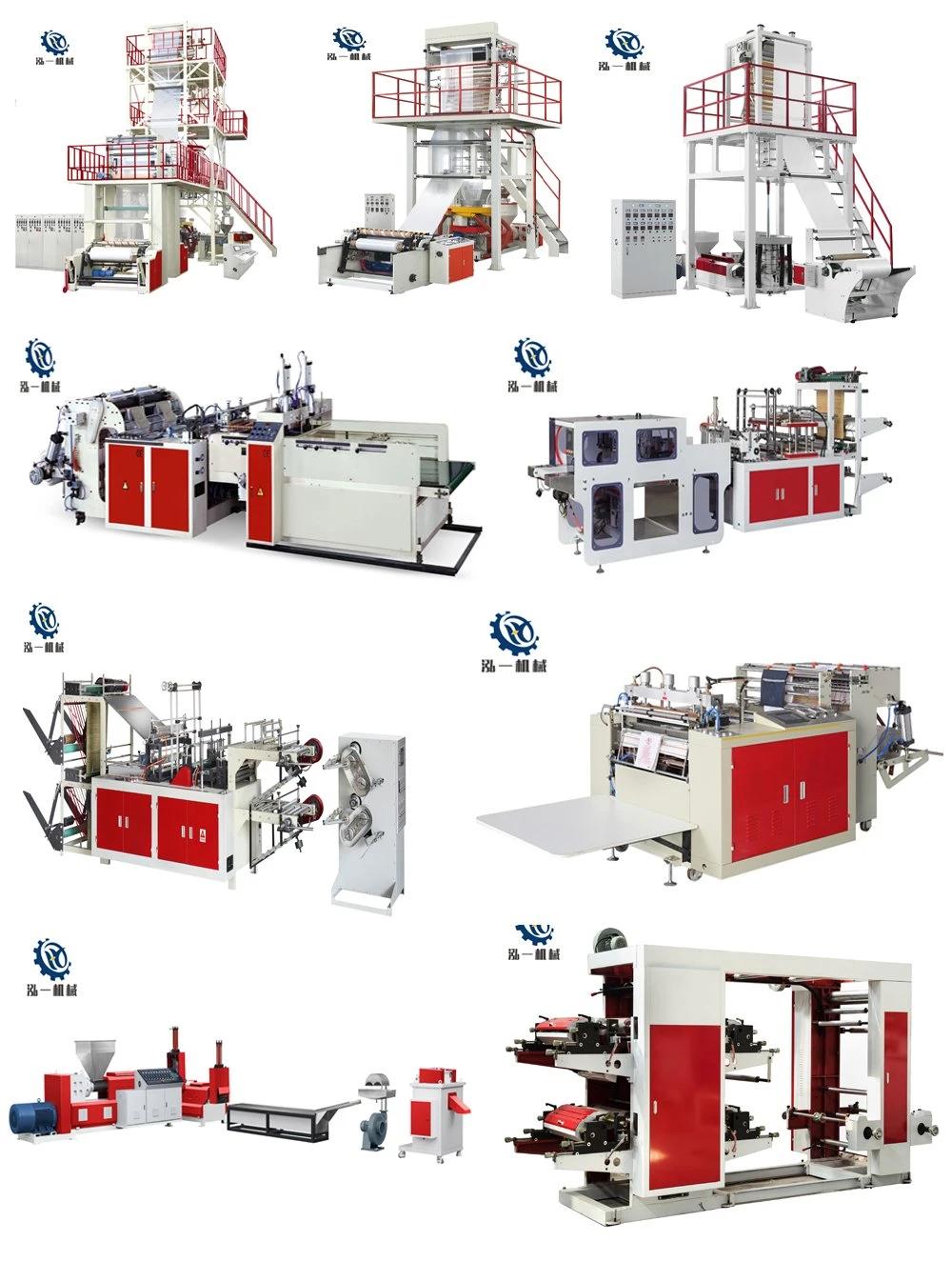

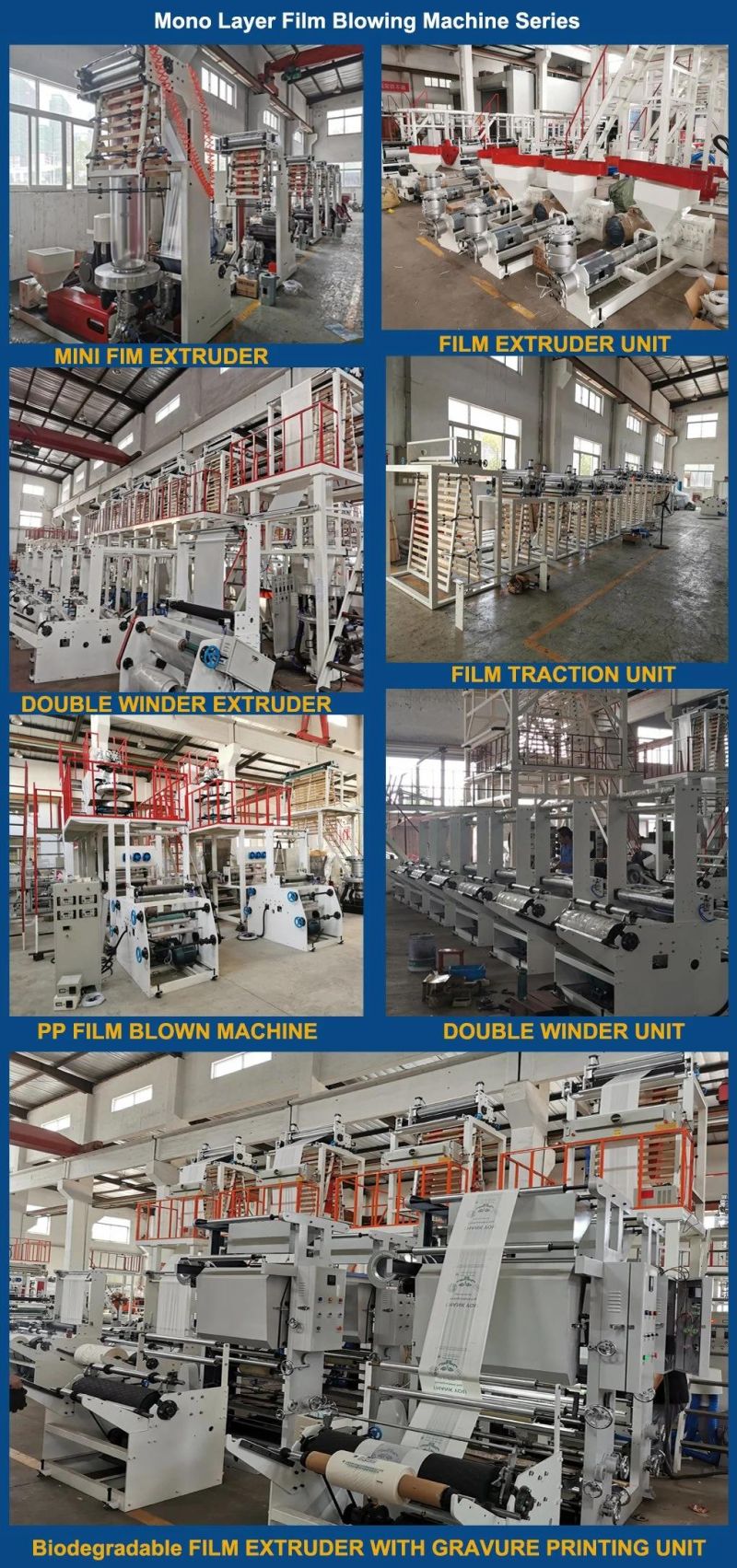

6. More Products Optional:
7.After Service of HOIN:
1. How long will your engineer reach to our factory?
Within one week after machine arrival at your factory.
2. How many days will you finish installing?
We will finish installation and training within 15days.
3. What should we charge for your engineer?
You should charge for the cost of our engineer's visa, air tickets, hotel, food, and also their salary 100USD per day per person.
4. How long of your machine's warranty period?
Our machines have one year guarantee after finishing installation.
5. How could we do after one year warranty period?
We will still offer you our best after service, and need you to afford our technician's cost.
6. Can you find us any engineer in our location?
Of course, we will check and inform you as soon as possible.

Any query please feel freely to contact with us!
