1500mm Pet Sheet / Film Production Line by Using Parallel Twin Screw Extruder

=== Base Info ===

=== Description ===

Basic Info.

Model NO. SHJ-75 Customized Customized Condition New Machine Name Pet Sheet Machine Power Supply 380V±10%, 50Hz or as Per Your Request Install Power 185kw Weight 16t Dimension 25m*6m*3.8m Capacity 400kg/Hr Operator 2-3persons Electric Parts Warranty 6monthes Machine Warranty 12monthes Transport Package Machine Covered by PE Film; Mould in Wooden Case Specification Follow Customers′ Need Trademark Weier Origin Qingdao City Shandong Province, China HS Code 84778000 Production Capacity 100 Sets/Year

Product Description

1500mm PET Sheet / Film Production Line
This PET sheet extrusion line is equipped three-roller calander, with high performance vented extruder, die, screen change system, cooling rocket, haul-off unit, cutting unit and etc. specially designed for producing APET, PETG  and CPET single-layer and multi-layer sheet with thickness of 0.15mm to 2 mm and width of 650mm to 1500mm. It can be for produce PS,PP and PE sheet also.

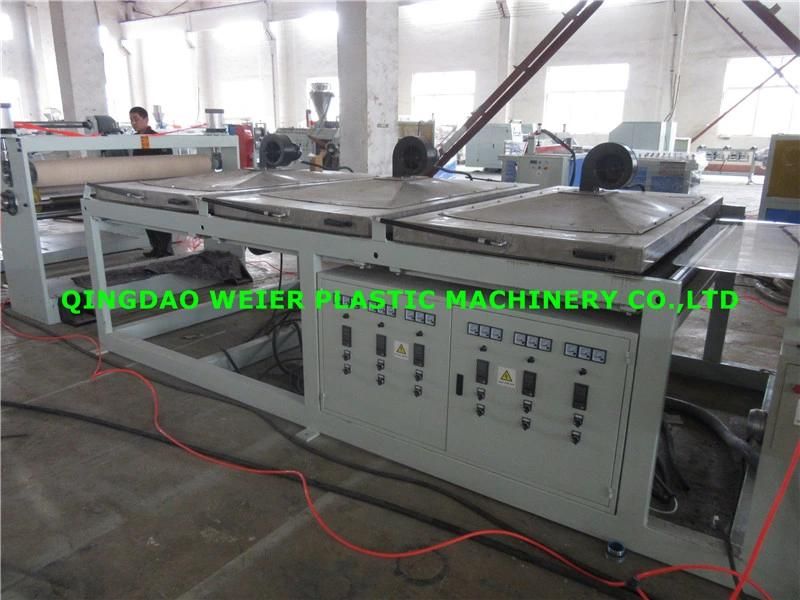

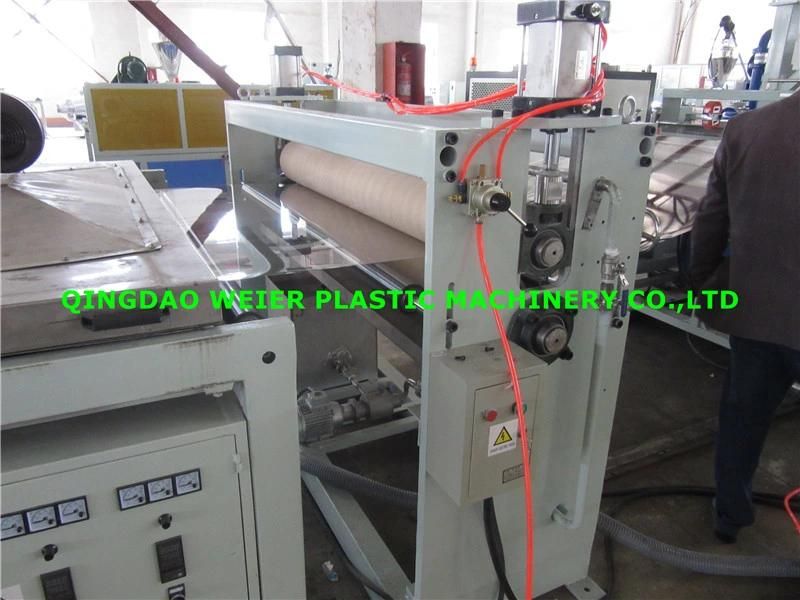

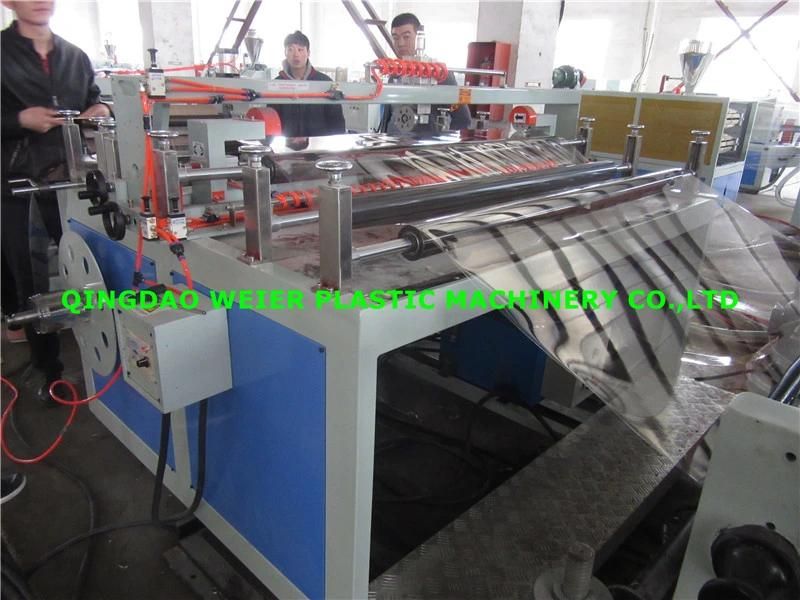

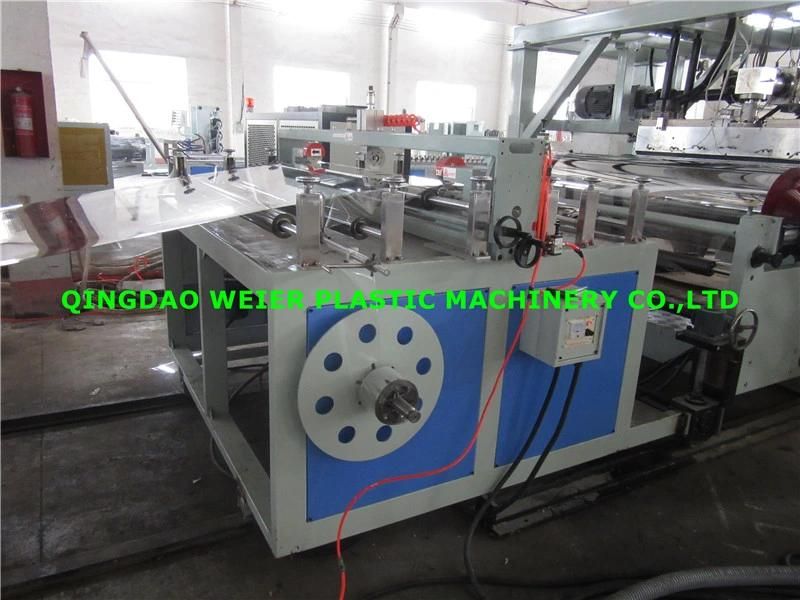

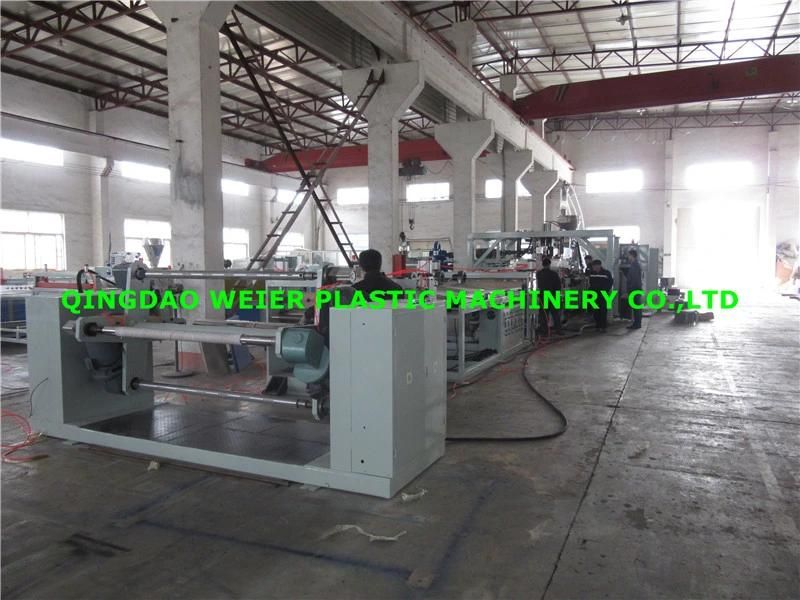

Photos of PET sheet line







Main Technical Paramters

Extruder model	SHJ75/SHJ85	SJ120/90/65
Material	APET.PETG.CPET	APET.PETG.CPET
Width of sheet	650-1500mm	650-1500mm
Thickness of sheet	0.15-2.0mm	0.15-2.0mm
Extruder Specification	Φ71.5 Φ81.5	Φ120/Φ90/Φ65
Max.extrusion capacity	450-600kg/hr	450-600kg/hr
