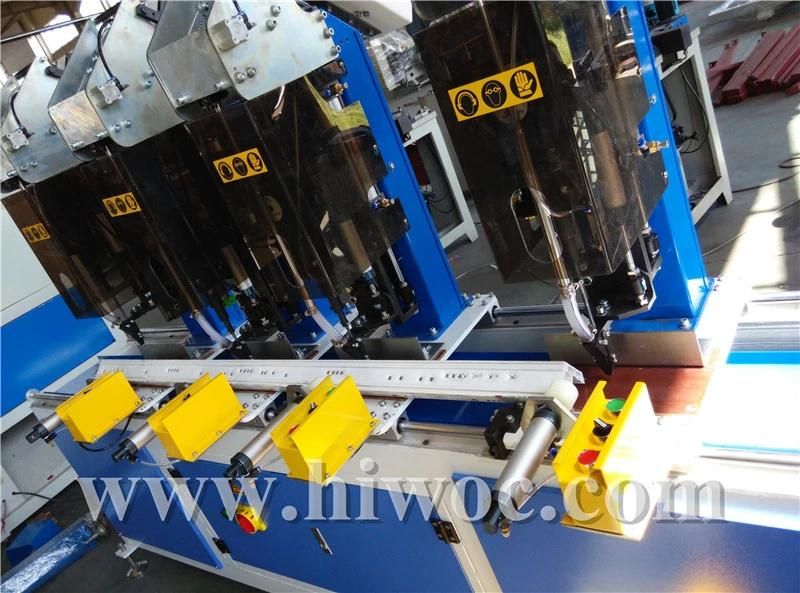

Factory Hot Sale Automatic Single Head Screw Fasten Machine for UPVC Window Profile

=== Base Info ===

=== Description ===

Basic Info.

Certification CE, ISO9001:2008 Customized Customized Input Power 150W Motor Speed 1000rpm Drilling Height 25-120mm Max Profile Width 120mm Screw Diameter 3.0-5.0mm Screw Length 11-19mm Profile Step Depth 32mm OEM Support Certificate CE/ISO Warranty Time 2 Years Transport Package Plywood Case Specification 1500× 550× 1500mm Trademark Hiwoc Origin China Production Capacity 10000/Year

Product Description

Udes for joining and fixing the reinforcement and PVC profiles together.
Feature
1. Fix the reinforctment in pvc profile at one time, and no need to drill the screw hole firsly.
2. Strong torque design fit flexible.
3. Automatic screw filling system, and operated easily.
4. The space between the two screws canbe adjusted freely.

Parameter
Air Pressure	0.6~0.8MPa
Input Voltage	220V 50Hz or As Customer need
Input Power	150W
Motor speed	1000rpm
Drilling height	25-120mm
Max Profile width	120mm
Screw Diameter	3.0-5.0mm
Screw length	11-19mm
Profile step deepth	32mm
Overall size	1500×550×1500mm
Weight	500kg



Main accessory
PLC	Taiwan Delta
Solenoid valve	Sitairui
Cylinder	Huatong
Motor	Anhui Sanyang (Best Chinese Motor Brand)
Air Filter Device	STNC
Electrical Button and Switcher	Schneider
AC Contactor and Circuit Breaker	Schneider
Approach Switch	Taiwan Delta
Linear bearing system	Linear (South Korean brand)



Standard accessory
Cutters	4pcs
Air Gun	1pc
Complete tooling	1set
Certificate	1pc
Operation Manual	1pc
