Khyd Mining Portable Electric Rock Drilling Rig

=== Base Info ===

=== Description ===

Basic Info.

Model NO. KHYD Drilling Way Rotary Power 7.5kw Voltage 380V Transport Package Wooden Box Specification 1080*460*540mm/155kg Trademark Bafang Origin Shandong, China Production Capacity 100000/Years

Product Description

KHYD mining portable electric rock Drilling RigSpecifications
KHYD electric rock drill :
1good quality .
2it is suitable in drilling rock or coal mine .
3 good performance for price ratio

Feature :

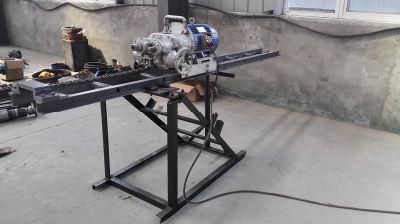

1, The KHYD electric rock drill is suitable in drilling rock or coal mine use and matched with the scaffolding ,it also called  scaffolding rock drill ,it can drill in level ,tilt upward ,or vertical upward direction .

2,In order to prolong the service life of the drill and improve working conditons of the operator  . we can use wet  type drill to remove the powder by water , we can also usd spiral leaf pipe dry type drill to remove the powder .

3,when wroking we can simply manipulate the handwheel .the drill could promote and rapid return on its own .
4,the drill can matched with 80 diameterspiral drill pipe ,34 diameter round drill pipe ,pyramid drill bi
Specification:

Item	Rock diameter mm	Diameter of coal seam mm	Depth of rock m	Depth of coal seam m	Speed r/min	powerkw	weight kg
KHYD 40	42	45-60	5	20-60	2814	2	40
KHYD 75	42	45-80	10	30-80	1420	3	75
KHYD 140	42-80	80-100	20	30-80	1440	5.5	140
KHYD 150	42-80	80-120	25	40-100	1440	7.5	150
