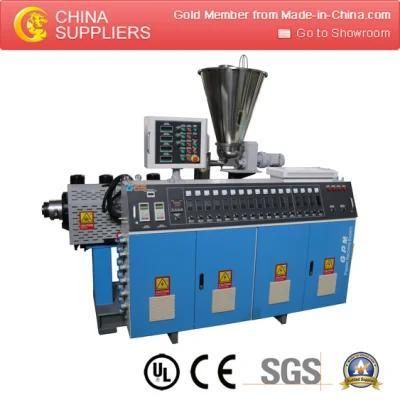

Top Grade Antique WPC Profile Conical Twin Screw Extruder

=== Base Info ===

=== Description ===
SPECIFICATIONS FOR Conical Twin-screw ExtruderExtruder model Max.output
(kg/h)Total power(kw)GSZ45/10040-8015/18.5GSZ51/10580-11018.5/22GSZ55/110120-15022/30GSZ65/132280-35037/45GSZ80/156380-45055/75GSZ80/173500-65075GSZ92/188700-850110/132GSZ95/1961000132/160Specifications for Parallel twin-screw extruderModelMotor(KW)Screw diameter(mm)Max.speed(rpm)L/DMax Capacity
(kg/h)Weight
(kg)GSP75/2837753628:12804100GSP93/3145/55934531:14504700GSP110/3190/1101104531:16806500GSP120/31110/1321204531:18507500GSP135/311601354531:111008400
Main technical parameter:

1	diameter of the screw	150 mm
2	screw rotating speed	62 rpm
3	L/D	33/1
4	motor power	110 kw 3phase 380V 50HZ
5	heating power	84kw
6	max. extruding capacity	500kg/h
7	enter height	1250 mm
8	weight	4500 kg
9	motor mode	D.C motor
10	main motor speed adjusting mode	ABB drives
11	motor belts number	4 pcs
12	barrel temperature controlling system	heating: 7 zones cast aluminum heating with stainless steel covers cooling: 7 zones  fans 550 W air flow cooling
13	screw and barrel material	38 CrMoALA Nitrided: 0.4-0.7 mm   hardness: ≥700HV
14	driving style	hardening teeth surface gearbox Ratio:1"
15	Feeding motor power	1.5KW AC motor

For choosing the proper machine and saving your time, please read these bellow guides carefully
1). What kinds of plastic machinery do you need ? Or what material do you want to process?
2). What capacity do you want? (kg/h )
3). What is the max and min size of the finish products .For example, the width and thickness of sheet(mm)?
4) What is the electric device you need ? Siemens, Omron or domestic ?
5) When do you want the machine? (Times for delivery)
6) Other requirements about the machine you want.

if you are interested in this machine ,please contact me:
mob :+86 13817556740


Jeremy He
