PVC PVC Double PVC Four Pipe Extrusion Line Production Machine
Ningbo Conwhole Hardware Co., Ltd. / 2022-07-04
=== Base Info ===
=== Description ===
1.PRODUCT INTRODUCTION
This line can be used in the area of cable pavement pipes production. Whole line consists of conical twin screw extruder, four cavity mould, vacuum calibration cooling tank, haul-off, cutter, stacker .
And the line can be equipped with PLC control, ink-jet/laser printer, crusher, shredder, Pulverizer ,water chiller, air compressor etc. Advanced design for screws and barrel supplies powerful safeguard for the PVC plasticization.
2.PROCESSING FLOW
Raw material+additive→mixing→conveying feeding→force feeding→conical double screw extruder→"one mould four pipes"mould→calibrator→spray vacuum calibration tank→ink printer→belt haul-off→uplift cutter→pipe rack→finished product inspecting&packing
3.APPLICATION
The PVC Four Cavity Electrical Tube, water supply pipe extrusion production line can extrude four pipes at same time on one production line. This line can save invested cost in factory building and production, which could increase the pipe output and reduce production period.
SJSZ65 Conical twin-screw extruder can easily reach 5.5-6 ton/day, the production speed is very high, for 16mm pvc pipe can reach maximum 8-10m/min.
The whole line is composed of conical twin screw extruder of 65mm, four cavities PVC pipe extrusion mold, four cavity cooling calibration tank, four station haul off and cutting macine, four station stacker.
4TECHNICAL PARAMETERS
PVC four pipe extrusion production line
5.Equipment list of the 4 PVC pipe production line:
| NO. | Equipment Name | Description | machinery photos |

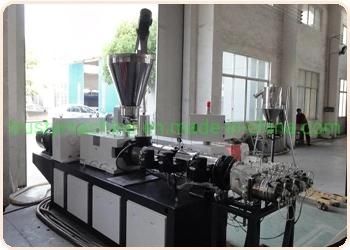

| 1 | SJSZ65/132 conical twin screw extruder | Unique screw design, short plasticizing time, good compounding and plasticizing effect. |  |

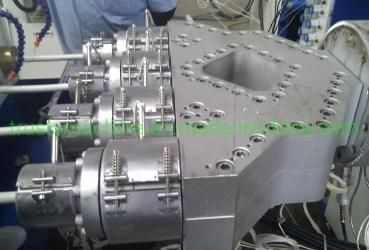

| 2 | molds for 16-32mm(4 cavity) | Four even flow channel with chrome plated, pressure of four channels are stable, final product size stable. |  |

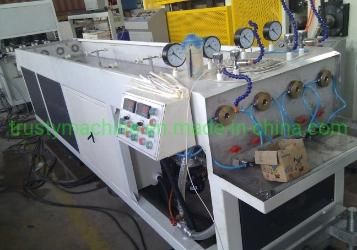

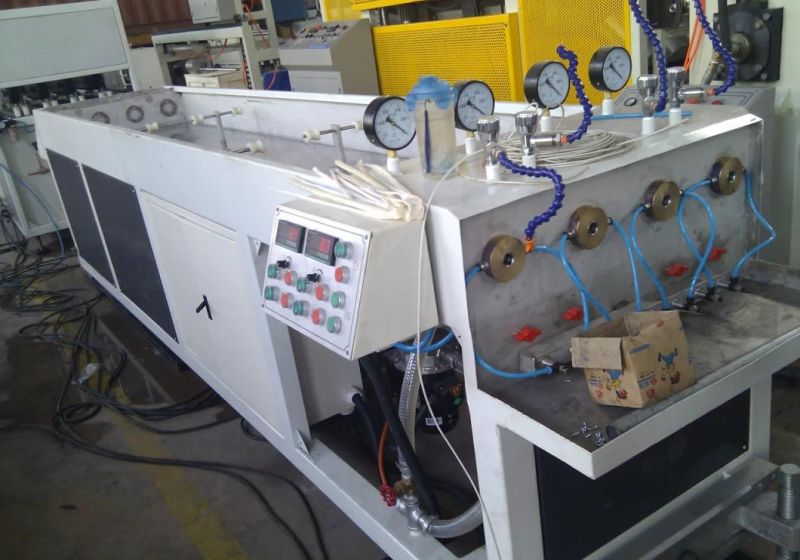

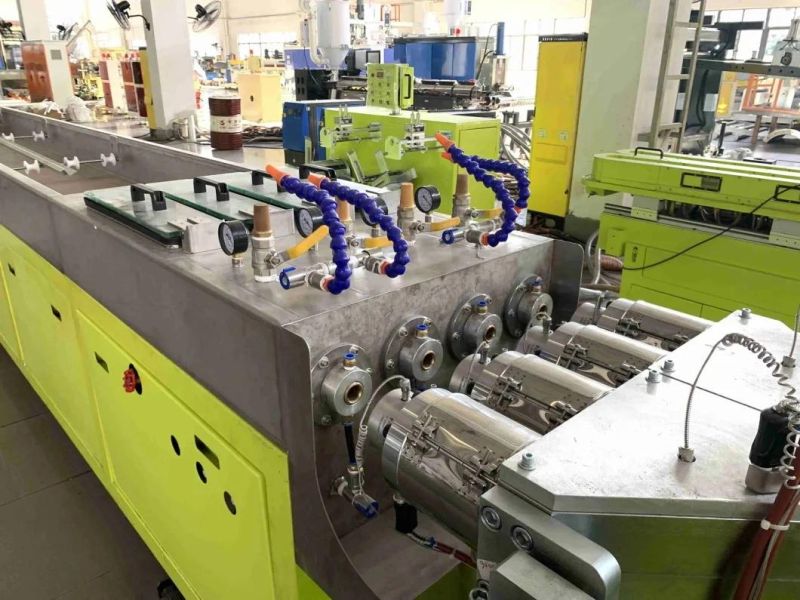

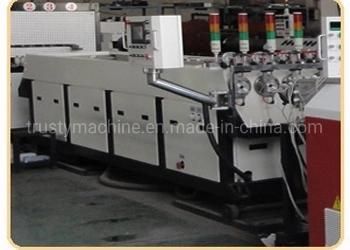

| 3 | Four cavities water cooling tank | Made of stainless steel, vacuum forming and water cooling |  |

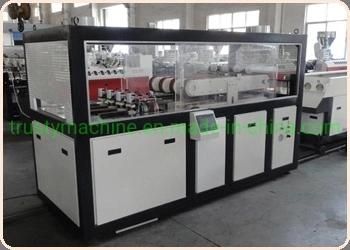

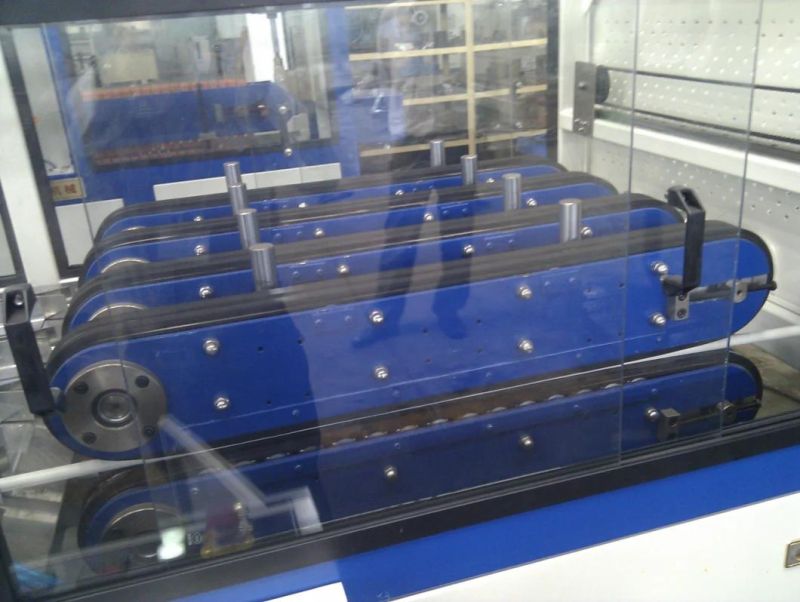

| 4 | Four caivites puller | Four individual pullers, it is easy to operate and adjust machine. |  |
| 5 | Four cavities cutter | no chip cut, high accuracy |  |
| 6 | stacker | 1set |  |
6.Company Introduction
Qingdao Trusty Plastic Machinery Co., Ltd. is a professional enterprise engaged in research, development, manufacturing and global sales of plastic machinery.
Our company's main products are:
Various types of extruders
Plastic pipe production line
Plastic sheet production line
Plastic profile production line
Plastic board production line
Plastic granulation line
Plastic mixer
Plastic crusher
Plastic shredder
Plastic pulverizer
Other plastic auxiliary production equipment, etc.
Our products have been sold to more than 79 countries worldwide,welcome customers from all over the world to visit our company.
7.FAQ
1.WHY CHOOSE US
We are the Professional manufacturer to develop the plastic extrusion machines in Qingdao. Machine quality and customer satisfaction is our pursuit.Be sure we have the strength to provide you with quality machines and perfect service.
2.WHAT SERVICES DO WE OFFER?
Pre-sale communication → Design proposal, signature confirmation→
Customized production→ Test machine before shipment →Package &
delivery→ Engineer installation→Training operator → Technical support
3.PAYMENT TERMS:
30% of total amount should be paid by T/T as down payment ,the balance (70% of total amount) should be paid before delivery by T/T or irrevocable L/C by payment(at sight).
4.DELIVERY CONDITIONS:
4.1 Delivery condition: FOB Qingdao port or CIF destination Port.
4.2 Delivery terms: Within 30-60 working days after receipt of advanced payment, the seller should inform the buyer to do inspection,the seller should finish packing of goods and ready for shipment within 15 working days after the seller receipt the full payment.
5.WARRANTY TERMS
5.1 Warranty period: 12 months, starting from the machine receipt in customer's warehouse
5.2 Seller shall grant: services and spare parts, free-of-charge service throughout the entire equipment during warranty period.
5.3 long life service: the seller should provide long life service for the sold goods, the buyer pay for needed spare parts after the 12months warranty terms.
6.INSPECTION
When the machine finished, the seller should inform the buyer to do inspection before shipment, the seller guaranty good performance of all the sold goods.the seller undertake the material cost for the machine inspection in seller's factory. the buyer should come to seller's factory to do the inspection work, or the buyer could entrust any third party to come to seller's factory to do the inspection work.
7.INSTALLATION AND EQUIPMENT COMMISSIONING:
if the buyer requires, the seller should send technician team to buyer's factory for installation and testing the whole line, and the buyer should undertake the whole food/place and round tickets (airplane, food, hotel, and so on), and pay salary to engineer for 100 usd/day/engineer.
8.AFTER SALES SERVICE
1. We not only provide machines but also offer technical guide and market evaluate.
2. We will provide all the machines for the complete production according to customer's requirements.
3. We will provide good service for machine installation and training, until the customers can run the machines and make stably production.
4. For long-term cooperation, we always provide good quality, good price and good service to customer.
