Tilting Steam Jacketed Concentrate Kettle

• Power Source：Electric
• Process：Thermal Processing
• Automatic Grade：Semi-Automatic
• Type：Mix Filling Machines
• Voltage：380V
• Customized：Customized

=== Base Info ===

• Model NO.：50L-500L
• Material：Ss304, Ss316L
• Transport Package：Wooden Box
• Specification：50L-500L
• Trademark：Tianlong
• Origin：Wenzhou, China
• Production Capacity：1000 Sets Per Week

=== Description ===
ParametersQJ50QJ100QJ150QJ200QJ300QJ400QJ500Volume L50100150200300400500Jacket pres. MPaless than 0.2      Evaporation kg/h3040506575100150Heating Area m20.40.450.761.01.151.441.90Energy Consumpiton kg/h3344557290110165Weight kg170190210230320360485Dimension L mm72080013501400145015001600W mm600650660700800850900H mm83095010001100111011401150

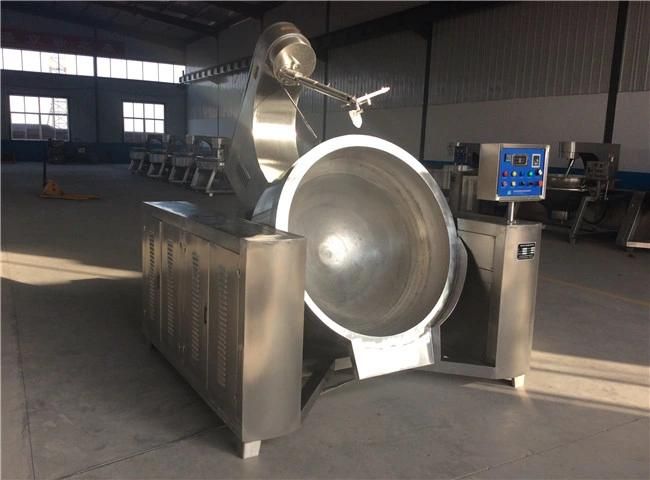

Tilting jacketed kettle is composed of kettle,bracket,worm wheel and worm etc. The kettle can revolve within 180C.The equipment is used for open concentration,mainly for decocting and concentration of liquids in industries of pharmaceutical industry,food industry,chemical industry and light industry etc. Contact area of the equipment with materials is made of stainless steel 304,which has perfect corrosion-proof performance and is highly endurable according to GMP requirements. Blender also can be added according customer requirements .
