Hydraulic Anchoring Engineering Anchor Underground Drill Rig

=== Base Info ===

=== Description ===

Basic Info.

Model NO. YG-MG40/50/70/70A Type Portable Product Name Anchor Drilling Rig Application Support Hole Drilling Hole Angle 0-90° Output Rotary Speed 90/70rpm Max Lifting Force 25/30/35kn Electric Voltage 380V Drilling Rod Diameter 76*1500mm Rated Output Torque 2400/2500/3900n*M Power Head Max Stroke 1800mm Oil Pump Electric Power 4/22kw Transport Package Standard Wooden Case Specification 3100*1000*1500mm Trademark YUGONG Origin China (Mainland) HS Code 8401200000 Production Capacity 2600sets/Month

Product Description

Hydraulic Anchoring Engineering Anchor Underground Drill Rig
Rig Description

The anchor drilling machine is mainly used in the sliding wave control engineering of railway, highway, water conservancy and hydropower facilities, the anchorage engineering of dangerous rock mass, the anchorage engineering of high slope rock mass such as controlling the displacement of buildings, etc. It is also used for the construction of deep foundation pit support and foundation reinforcement engineering holes, water well hole drilling, blasting engineering holes and tunnel pipe shed support holes. It is characteristic of compact structure, small size, light weight, flexible, and wide application. You can choose different models of this drilling rig according to your construction requirements and geological conditions to achieve the best drilling efficiency.



Technical Parameter of the Drilling Rig


Model	YG-MG40	YG-MG50	YG-MG70	YG-MG70A
Hole Depth(m)	10-60	25-70	35-80	35-80
Hole Diameter(mm)	90-180	90-165	90-200	110-230
Rod Spec(mm)	Φ76*1500	Φ76*1500/ Φ89*1500	Φ76*1500/ Φ89*1500	Φ76*1500/ Φ89*1500
Hole Angle	0-90°	0-90°	0-90°	0-90°
Output Rotary Speed(rpm)	90	70	70	---
Rated Output Torque(N*m)	2400	2500	3900	3900
Power Head Max Stroke(mm)	1800	1800	1800	1800
Max Lifting Force(KN)	25	30	30	35
Power Head Max Feeding Force(KN)	20	25	25	25
Hydraulic System Rated Pressure(Mpa)	16	17-18	17-18	17-18
Rotary Electric Power	4-pole/7.5kw	Hydraulic	Hydraulic	Hydraulic
Oil Pump Electric Power(kw)	4	22	22	22
Electric Voltage	380v	380v	380v	380v
Weight(kg)	1000	1260	1460	1600
Hydraulic Station Dimension(mm)	640*600*580	1850*780*1360	1850*810*1280	---
Dimension(mm)	2800*800*1400	3000*780*1360	3100*1000*1500	3100*1000*1500

Wide Application of the Anchor Drilling Machine:

1. Reinforcement of slope of hydropower station/railway/highway;
2. Landslide and dangerous rock mass anchoring engineering in geological disaster prevention and control;
3. High slope rock mass anchoring engineering;
4. Urban deep foundation pit support;
5. Anti - floating bolt and foundation grouting reinforcement engineering hole drilling;
6. Blasting hole in blasting engineering;
7. High pressure rotary jet pile;
8. Tunnel shed support hole drilling.

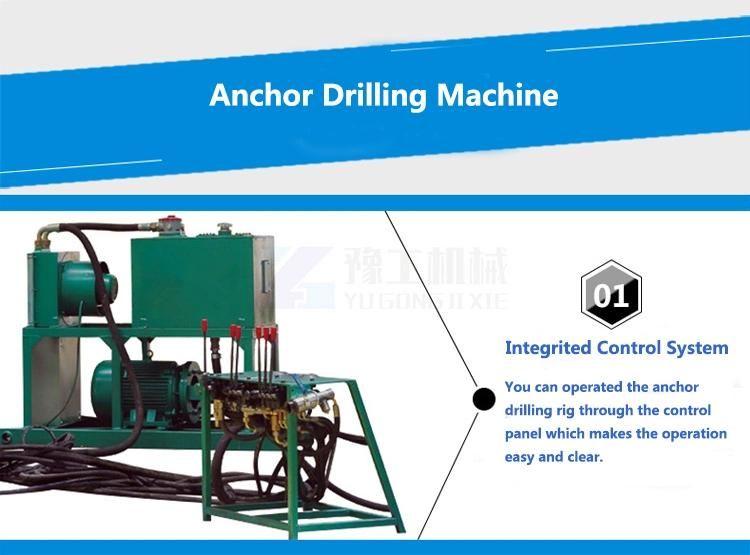

Details Overviews
