High Precision Molds Repair Handheld Laser Welding Machine

• Application：Electronic Industry, Automotive Industry, Manufacturing Industry, Metal Processing
• Technical Class：Continuous Wave Laser
• Control：Automatic
• Power Density：Deep Fusion Welding
• Laser Classification：Optical Fiber Laser
• Type：Portable Welding Machine

=== Base Info ===

• Model NO.：BAOKUN Handheld Welding Machine
• Usage：Metal Laser Welding
• Max. Output Power：1000W
• Warranty：2 Years
• After-Sales Service：Online Support, Video Technical Support
• Laser Source Brand：Raycus,Ipg
• Key Selling Points：Easy to Operate
• Applicable Industries：Garment Shops, Machinery Repair Shops,Metal Wrok
• Laser Wave Length：1070 Nm
• Cooling System：Water Cooling
• Max Laser Power：500W,1000W,1500W
• Welding Speed Range：E: 0-120 - mm,S
• Weight：350 Kg
• Fiber Length：Standard10m , Maximum 15m
• Operate Mode：Continuation, Modulate
• Working Environment Temperature Range：15~35 C
• Transport Package：Plywood

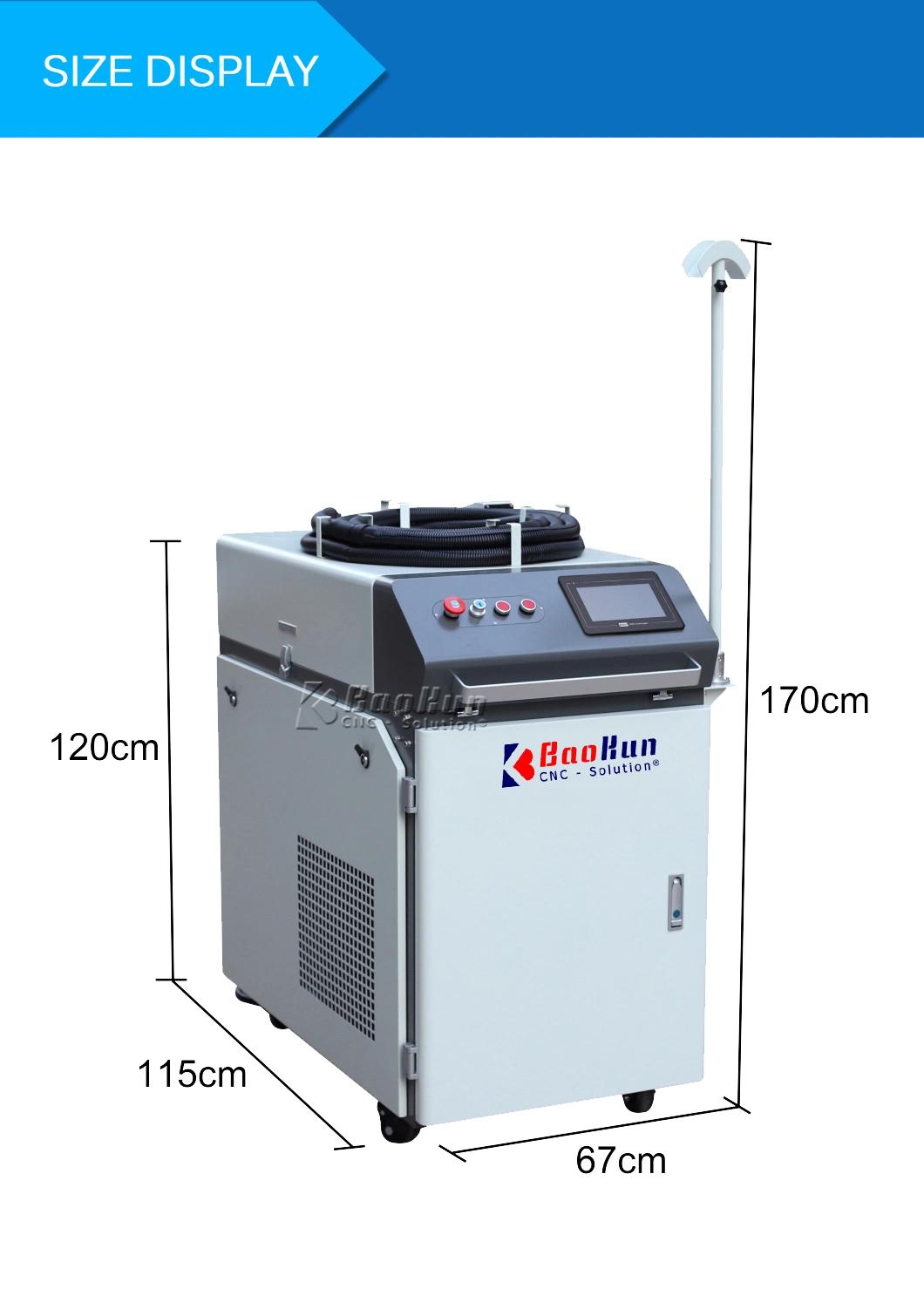

• Specification：115x67x170cm
• Trademark：BAOKUN Handheld Welding Machine
• Origin：Weifang, Shandong, China
• Production Capacity：100sets,Month

=== Description ===

Basic Info.

Model NO. BAOKUN Handheld Welding Machine Usage Metal Laser Welding Max. Output Power 1000W Warranty 2 Years After-Sales Service Online Support, Video Technical Support Laser Source Brand Raycus/Ipg Key Selling Points Easy to Operate Applicable Industries Garment Shops, Machinery Repair Shops,Metal Wrok Laser Wave Length 1070 Nm Cooling System Water Cooling Max Laser Power 500W/1000W/1500W Welding Speed Range E: 0-120 - mm/S Weight 350 Kg Fiber Length Standard10m / Maximum 15m Operate Mode Continuation/ Modulate Working Environment Temperature Range 15~35 C Transport Package Plywood Specification 115x67x170cm Trademark BAOKUN Handheld Welding Machine Origin Weifang, Shandong, China Production Capacity 100sets/Month

Product Description

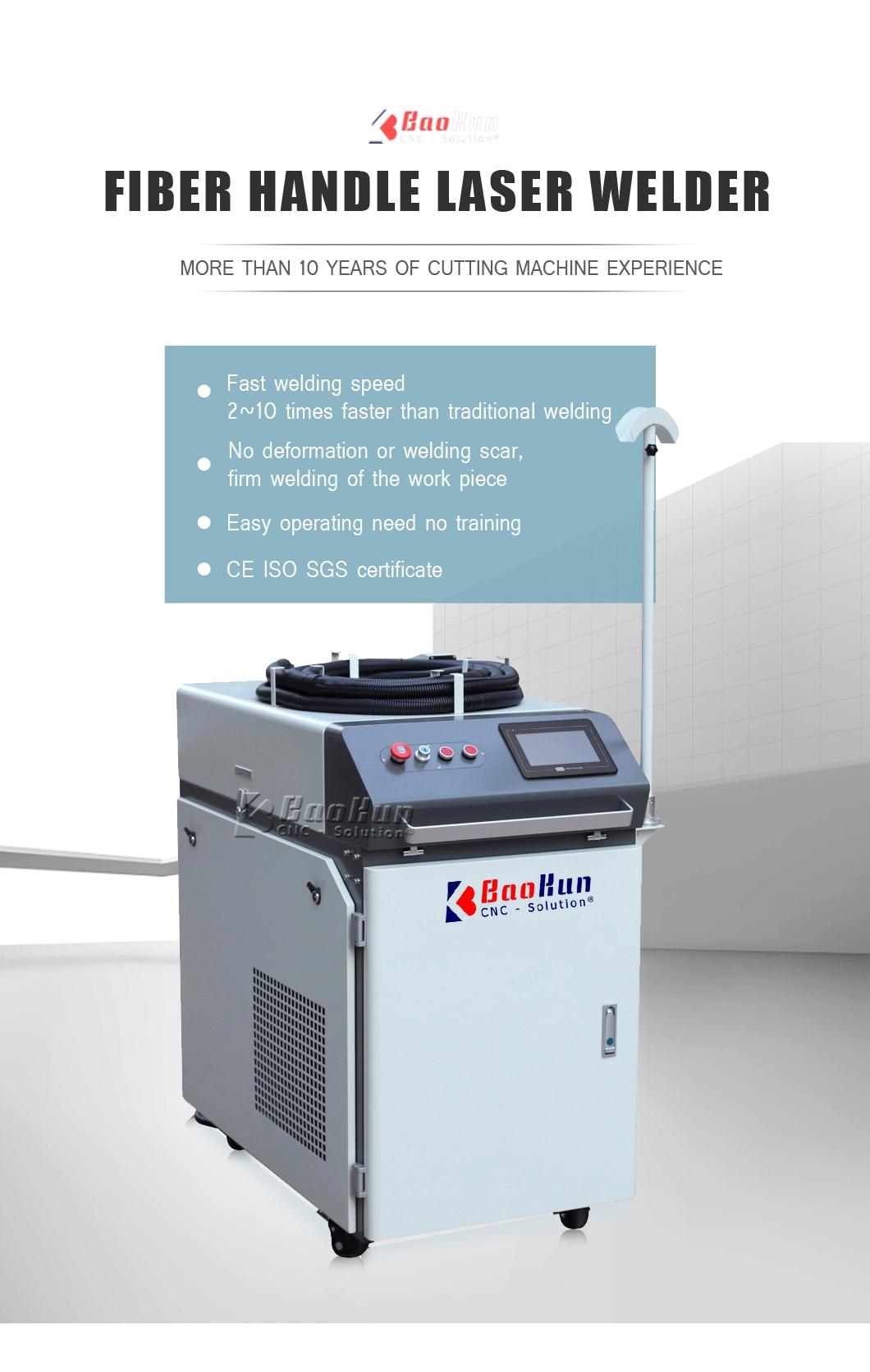

                   High Precision Molds Repair Handheld Laser Welding Machine


1. More flexible for non-contact welding on difficult sites.

2. Enable outdoor welding.

3. Spot, stack, splicing and continuous welding.

4. Service life is 8 to10 years, esp. the lamp is more than 800 million times.

5. Touch screen input.

1. Material

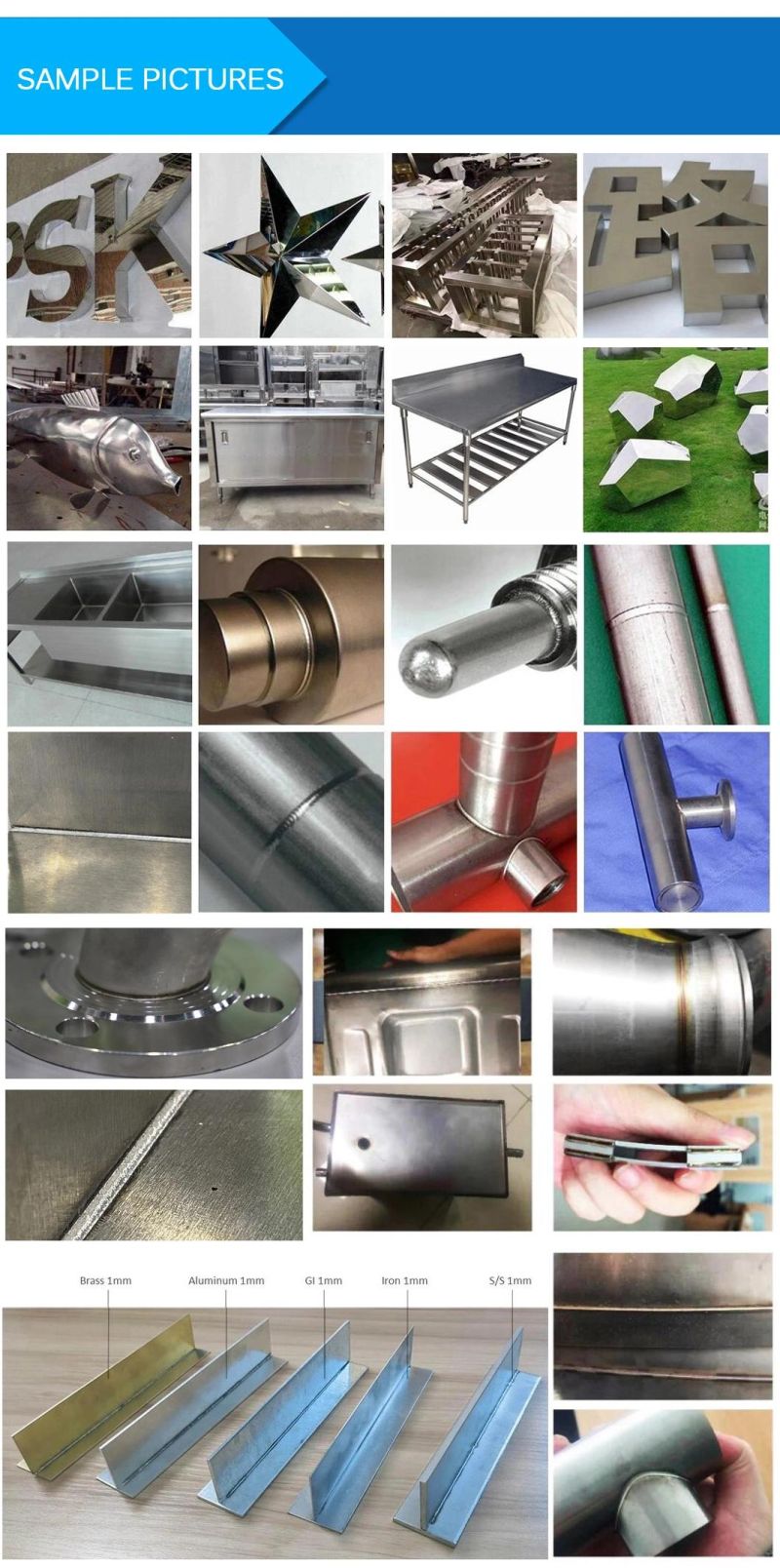

Stainless steel, copper, aluminum, gold, chromium, silver, titanium, nickel and other metals or alloys, it can also be used for a variety of welding between different materials, such as: copper - brass, titanium - molybdenum, titanium - gold, nickel - copper and so on.

2. Welding

Kitchen cabinets, staircase elevator, shelf, oven, stainless steel door, window guardrail, distribution box, medical equipment, communications equipment, craft gifts, household and other industries.

NO.	Name	Parameter
1	Machine Model	Hand-held fiber laser welding machine
2	Laser Power	1000W
3	Laser Wave Length	1070 NM
4	Fiber Length	standard10M / Maximum 15M
5	Operate Mode	continuation/ modulate
6	Welding Speed Range	0~120 mm/s
7	Cooling Chiller	Industrial water chiller
8	Working Environment Temperature Range	15~35 ºC
9	Humidity Range Of Working Environment	< 70% No condensation
10	Welding Thickness Recommendations	0.5-3mm
11	Welding Gap Requirements	≤0.5mm
12	Working Voltage	220 V

Comparison With Other Welding


Comparative Project	Traditional Welding	Fiber Laser Welding	Our New Generation Laser Welding
Weld heat input	very high	low	low
Work piece deformation	big	small	small
Bonding strength with base metal	general	good	very good
Subsequent processing	polish	no or few polish	no or few polish
Welding speed	general	2 times as traditional welding	More than 2 times as traditional welding
Applicable material	Stainless steel. Carbon steel. Galvanized sheet	Stainless steel. Carbon steel. Galvanized sheet	Stainless steel. Carbon steel. Galvanized sheet
Consumptive material	more	less	less
Operation difficulty	complicated	General	simple
Safety of the operator	unsafe	safe	safe
Impact of Environmental protection	Not environmentally friendly	environmentally friendly	environmentally friendly
Welding fault tolerance	good	bad	good
Welding	no	no	yes
Light spot width adjustable	no	no	yes
Welding quality	inferior	general	good

Can be widely used in cabinets, kitchen, staircase elevator, shelf, oven, stainless steel door and window guardrail, distribution box, stainless steel home and other industries complex and irregular welding procedures.

Pre-sale service

1) According to customers demands, provide relevant technical guidance.
2) Assist customers to design and make solutions considering technical feasibility.
3) Provide equipment demonstration for customers to investigate, make samples and do test etc.

After-sale service

1) 24 Hours online service.
2) 1 year warranty for the whole machine except for wearing parts.
3) Engineers available to service machinery overseas.
4) Offer help out of warranty.
5) Clients come to factory learning.






Q1: How about quality and reliability?
A:  Strong quality control system, each machine must pass 24-72 hours vibration test.

Q2: I know nothing about this machine, how to choose suitable ones?
A:  Let us know what material, joint welding or over-lay welding, material thickness. Or directly let us know what is the exact usage for the machine, we can offer suggestions for the suitable machine and solution.

Q3: When I get this machine, but I don't know how to use it, what should I do?
A: Operation video and manual will be sent together with machine. Our engineer will do training online. If needed, we can do on site training or you can come to our factory.

Q4:  When the machine can't work well, what should I do?
 A: The engineers are online 24-hour, they can check the problems and offer the exact solutions. All our machines have one-year warranty.
