Sodium Chloride Ammonium Sulfate Three-Effect FC Evaporator/Crystallizer Forced ...

• After-sales Service：Over-Sea After Sale Service
• Warranty：1 Years
• Condition：New
• Customized：Customized
• Voltage：Depends
• Composition：Water Treatment Equipment

=== Base Info ===

• Model NO.：VNGB-01-200
• Processing Material：Natural Ingredients
• Process：Concentration and Dry
• Heating Method：Steam
• Cooling Method：Cooling Water , Ice Water
• Effect：Multi Effect
• Working Method：Continues
• Material：SS316L
• Control System：Full-Automatic System
• Transport Package：Wooden Faces
• Specification：10LPH - 20 TONS per hour
• Trademark：VANOO SHANGHAI
• Origin：Shanghai China
• Production Capacity：10 Sets Per Month

=== Description ===

Basic Info.

Model NO. VNGB-01-200 Processing Material Natural Ingredients Process Concentration and Dry Heating Method Steam Cooling Method Cooling Water / Ice Water Effect Multi Effect Working Method Continues Material SS316L Control System Full-Automatic System Transport Package Wooden Faces Specification 10LPH - 20 TONS per hour Trademark VANOO SHANGHAI Origin Shanghai China Production Capacity 10 Sets Per Month

Product Description

No Steam MVR Single / Double / Thriple Falling film Evaporator Steam compressor Evaporator Concentrated





. Main working principle

MVR(Mechanical Vapor Recompression) evaporator use the secondary steam produced, after compression by compressor,pressure and temperature,caloric content will be higher, then flow into the heater of evaporator regarding as heating steam,heat the feed liquid at boiling situation,and this steam will change to condensate water finally.so that the residue steam will make full use of it, recycled the latent heat,and improve the heat efficiency,raw vapor is economic 30 effects evaporator,it reduced the outer heating and cooling resource, reduce the energy consumption and reduce pollution.



.Usage

MVR(Mechanical Vapor Recompression) Evaporator, suit for milk,glucose,organic acid,VC, Xylose,pharmacy,chemical,biology engineering, environmental engineering, waste liquid recovery, paper making,salt making etc industry low temperature concentration,especially high boiling point material and special matters.



.System component

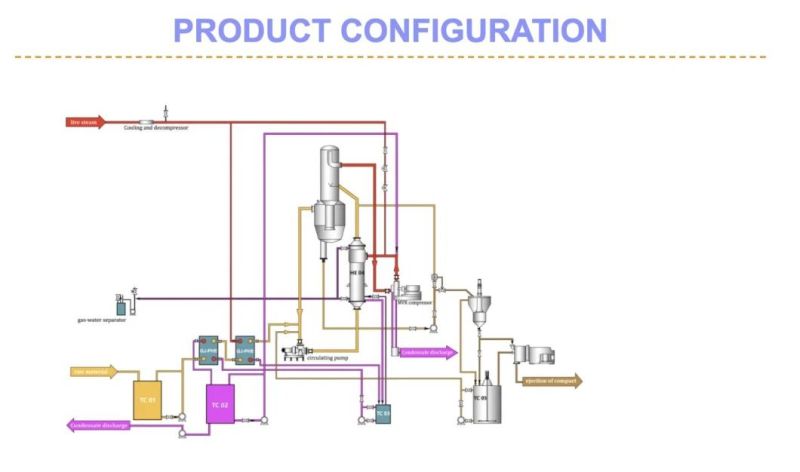

Consist of heater,separator,compressor,vacuum pump, circulation pump,operation platform,electric instrument control cabinet and valves,pipeline system, construction is very easy.

MVR  1.Energy saving: high thermal efficiency, energy saving, lower energy consumption, the energy consumption of 1t water evaporation
is about 1/5 to 1/3 of conventional evaporator.
2.Environmental protection: completely get rid of dependence on steam boiler, the mechanical vapor recompression evaporator could
be start-up by electricity.
3.Without boiler, don't need to burn coal, a small amount of steam, a small amount of cooling water.
The operation cost is low: due to low energy consumption, the operating cost of the whole evaporator is only 1/3 to 1/2 of
traditional evaporator.
4.Small area: the system has high dense mechanical structure, so the cover area is less than 50% of traditional evaporator.
5.Mild evaporation: low temperature evaporation, the heat transfer temperature difference is low, so the system is not easy to
scale.
6.High degree of automation: high degree of automation, simple operation, easy to operate.UsageThe machine is used for the concentration of Chinese traditional medicine, western medicine, starch sugar food and dairy product etc; especially suitable to the low-temperature vacuum concentration of thermal sensitive material.

Characteristics
1. Alcohol recovery: It has a large recycling capacity, adopts vacuum concentration process. So that it can increases productivity by 5-10 times compared with similar equipment of the old type, reduces energy consumption by 30%, and has the characteristics of small investment and high recovery efficiency.

2, concentrate: This equipment adopts the outside heating natural cycle and vacuum negative pressure evaporation with fast evaporation. The concentration ratio can be up to 1.2. The liquid in a state of full seal without the foam concentration. The concentrated liquid of this equipment has the characteristics of no pollution, strong taste and easy cleaning .The equipment is simple to operate and covers a small area. The heater, evaporator made with insulation layer, mirror polishing inner face and matt surface.

Structure and performance
1.The equipment consists of heating chamber, separator, defoamer, steam separator, condenser, cooler, liquid storage barrel,
circulating pipe and other components. The whole equipment is made of high-quality stainless steel materials.

2.The inner part of the heating chamber is column tube type. After the shell is connected with the steam, the liquid inside the
column tube is heated. The chamber also equipped with pressure gauges and safety valves to ensure production safety.

3.The front of the separation chamber is provided with a visual lens for the operator to observe the situation of liquid
evaporation. The rear manhole is convenience to clean when changing the breed. It has a thermometer and a vacuum meter that can observe and master the temperature of liquid in the evaporating chamber and the vacuum degree when evaporating with pressure.
