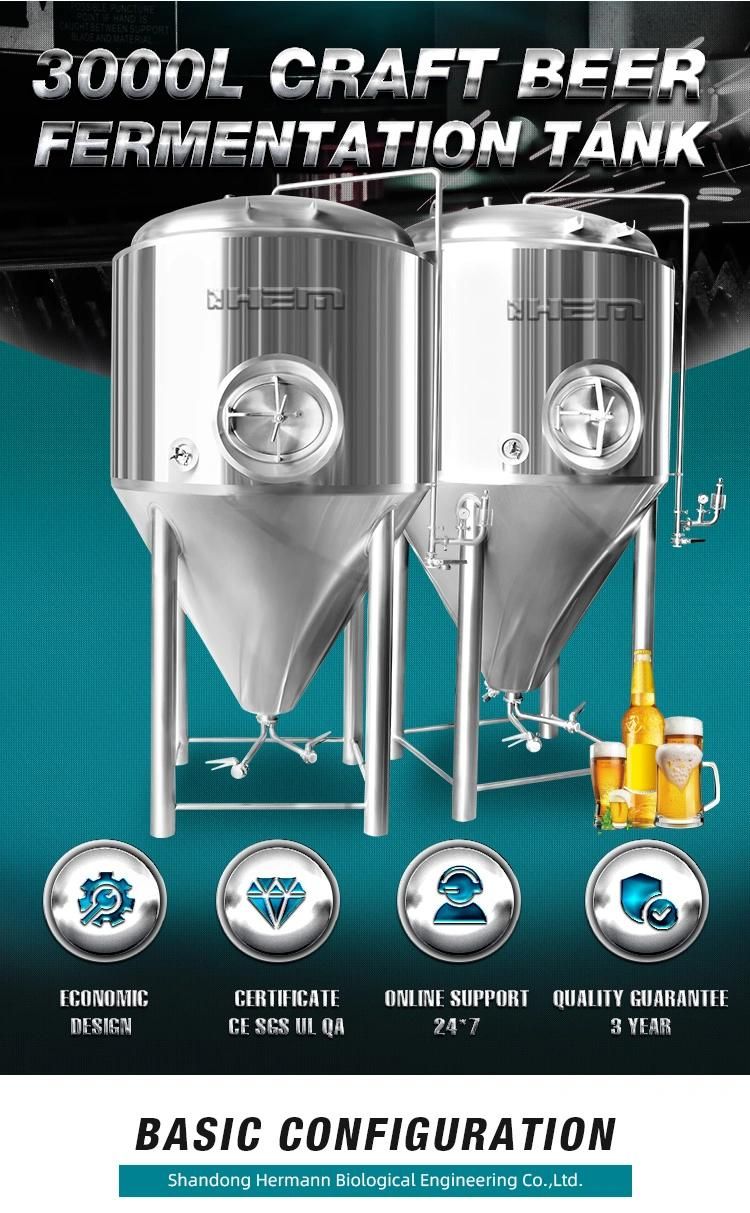

3000L 2000L Dimple Jacket Wine Fermenter Bright Tank Brewery Beer Fermentation Tank

• Condition：New
• Customized：Customized
• Process：Ferment
• Model：Hem-3000L
• Material：SUS304
• Application：Restaurant, Bar, Hotel, Brewery

=== Base Info ===

• Model NO.：HEM-3000L
• Cooling Method：Jacket Section Cooling
• Thickness：Inner:3.0mm; External2.5mm
• Outrigger：Ø102mm*4
• Gross Capacity：3750L
• Useful Capacity：3000L
• Insulation：Polyurethane-Thickness: 100mm
• Transport Package：Wooden Package, Fix in Container, etc
• Specification：1000L,2000L ,3000L,4000L,5000L
• Trademark：HEM
• Origin：Shandong
• HS Code：8419899090

=== Description ===

Basic Info.

Model NO. HEM-3000L Cooling Method Jacket Section Cooling Thickness Inner:3.0mm; External2.5mm Outrigger Ø102mm*4 Gross Capacity 3750L Useful Capacity 3000L Insulation Polyurethane-Thickness: 100mm Transport Package Wooden Package, Fix in Container, etc Specification 1000L/2000L /3000L/4000L/5000L Trademark HEM Origin Shandong HS Code 8419899090

Product Description

Model	HEM-3000L
Gross capacity	3750L
Useful capacity	3000L
Thickness	Inner (SUS304)thickness: 3.0mm; External-Jacket(SUS304) thickness: 2.0mm
Material	Stainless steel 304
Cooling way	Dimple jacket plate
Cleaning way	CIP in situ cleaning, with rotary spray cleaning ball
Insulation	Polyurethane-thickness: 100mm
Accessories	Sample valve, Pressure gauge, Breath valve, Temperature gauge, Top manhole, Washing ball, Butterfly valves, CIP Arm, Hop port, Discharge arm and so on.

Introduction of 3000L fermentation tank :
3000L fermentation tanks suitable for hotels and restaurants and breweries. The fermentation tanks use
certified stainless steel material. All tanks and jackets inspected and pressure tested to 3 times operatiing
pressure. The dimension of the tanks can be designed according to customer's requirement. Tank design
pressure is 0.4Mpa and testing pressure is 0.3Mpa.










Fermentation tank advantages :

(1). 304 stainless steel plate as a whole, and our stainless steel plate manufacturer is the best in China.
(2). The cooling efficiency of Maitreya plate jacket is greatly improved.
(3). Two stage cooling mode.
(4). The insulation layer material is high-grade polyurethane with a thickness of 100mm.
(5). Polishing accuracy up to Ra0.4μ m .
(6). Strict tank pressure test.
(7). Energy conservation and pollution emissions.


Item	Production capacity	Volume in US Gallon	Heating area	Tank diameter	Height
HEM-100	100L/day	26US Gallon	0.5m2	650mm	1500mm
HEM-200	200L/day	53US Gallon	0.8m2	850mm	1600mm
HEM-300	300L/day	79US Gallon	1.2m2	960mm	1700mm
HEM-400	400L/day	106US Gallon	1.5m2	1060mm	2000mm
HEM-500	500L/day	132US Gallon	1.8m2	1160mm	2300mm
HEM-5BBL	5BBL/day	155 US Gallon	1.9m2	1200mm	2350mm
HEM-600	600L/day	158US Gallon	2.0m2	1220mm	2350mm
HEM-700	700L/day	185US Gallon	2.4m2	1260mm	2380mm
HEM-800	800L/day	212US Gallon	2.5m2	1260mm	2400mm
HEM-7BBL	7BBL/day	216US Gallon	2.5m2	1280mm	2450mm
HEM-1000	1000L/day	264US Gallon	2.6m2	1360mm	2500mm
HEM-10BBL	10BBL/day	310 US Gallon	2.8m2	1460mm	2700mm
HEM-1500	1500L/day	396US Gallon	3.2m2	1520mm	2900mm
HEM-2000	2000L/day	528US Gallon	3.6m2	1560mm	2850mm
HEM-2500	2500L/day	660US Gallon	3.8m2	1650mm	3200mm
HEM-3000	3000L/day	792US Gallon	4.5m2	1760mm	3800mm
HEM-4000	4000L/day	1057US Gallon	4.9m2	1900mm	4100mm
HEM-5000	5000L/day	1320US Gallon	7.2m2	1960mm	4400mm

FAQ:

Q: Are you a manufacturer?
 A:Yes, We have more than 20 years in brewing and beer filling equipment.

Q: What is your available port of shipment?
A: Qingdao, Tianjin, Ningbo, Shanghai.

Q: How could we confirm the details of the products?
A: We will provide all the drawings for you to confirm before production.

Q: How long the warranty will be?
A: 3 years warranty for the whole tank and the main equipment, 1 year warranty for filling machine,1 year
for the accessories and auxiliaries.

Q: How about the installation and training?
A: We can supply the installation and training. There are two options. The first option: We could appoint
our engineer to your company to debug and repair, as for the cost of this trip such as ticket, visa,
accommodation and labor cost shall be on your side. The second option: On-line service will be provided.
If still under guarantee period, the necessary accessories and parts will be provided free, the buyer afford
the transportation cost.

Q: How do you guarantee the filling machine operation?
A: Before the delivery, we will test and debug all machines in good condition and record the video for your
checking.
