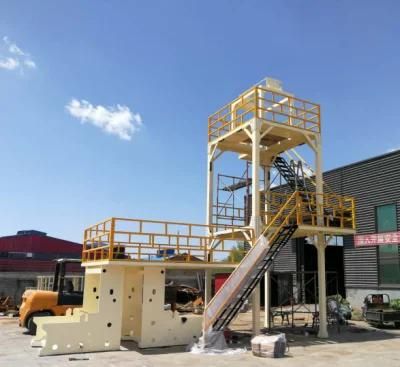

High Speed Film Blowing Machine

=== Base Info ===

=== Description ===
ModelMH-45/700MH-50/900 MH-65/1200MH-75/1400Film width
 shirt bag
 200-420mm250-600mm300-1000mm500-1200mmFlat bag
 200-600mm  250-800mm500-1100mm500-1300mmFilm thickness0.006-0.1mm
  max output50kg/h   70kg/h  70kg/h   70kg/hAccording to different width,thickness of film, die size and raw material characteristics to change
 Raw materialHDPE/LDPE/LLDPEDiameter of screwΦ45  Φ50  Φ65  Φ75
SACM 645,bimetallic,five years guarantee,
 L/D ratio of screw30:1Main motor15kw  18.5kw  30kw   37kw
100% Original three-phase variable frequency motor
Equipped with inverter control
 Take up roller(mm)
 700mm900mm1200mm1400mmWeight2500kg  2800kg3500kg4200kgMachine size5*2.1*4.3  5*2.2*4.5 6.5*3.2*5.26.8*3.5*5.6
Note:the above specifications,dimensions&design characteristics are subject to change without notice




OPTIONAL DEVICE:

* Automatic hopper loader
* Film surface treater
* Rotary die
* Oscillating take up unit
* Two stations surface winder
* Chiller
* Epc(edge position control)
* Electronic tension control
* Manual mechanics screen changer

PRODUCT FEATURE:
1.The whole machine is square structure.
2.Traction inverter control, host frequency conversion control, (optional fan frequency    control, winding frequency control) 100% inverter motor + frequency Converter control.
3.Full enclosed over temperature cooling device.
4.Brand  industrial electricity.
5.Lambdoidal board.
6:Ceramic heater.
