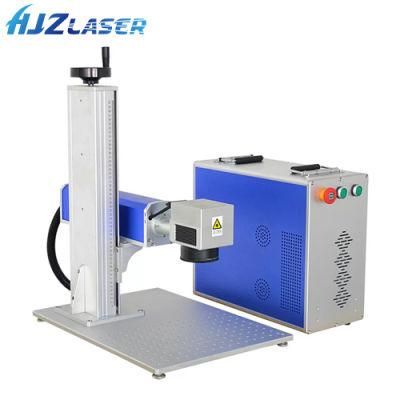

Hjz 20W 30W 50W High Qualtiy Laser Marking Machine Printing Machine for Metal and Non Metal

• Application：Home Appliance, Environmental Equipment, Petroleum Machinery Manufacturing, Agriculture Machinery, Textile Machinery, Food Machinery, Aerospace Industry, Automotive Industry, Shoemaking Industry, Woodwork Industry, Advertising Industry, Non Metal Materials
• Cooling System：Air Cooling
• Technical Class：Pulse Laser
• Applicable Material：Nonmetal
• Structure Type：Desktop
• Laser Classification：Fiber Laser

=== Base Info ===

• Model NO.：HJZ-DB-01
• Laser Technology：Laser Marking
• Terms：Technical Parameters
• Power：100W
• Working Size：1000X600mm
• Table：up & Down
• Software：Rdcam
• Package：Standard Crate for Export
• Working Power：220V,50Hz,1.5kVA
• Engraving Speed：1200mm,S
• Process Material：Non-Metal Materials
• Marking Varieties：Characters, Graphs, Images, Trademarks
• Laser Source：CO2 Laser Tube
• Lifespan：Over 20, 000 Hours
• Water Chiller：Doluyo
• Warranty：1 Year
• Transport Package：Standard Plywood Packing for Export
• Specification：1650X1250X1050MM
• Trademark：HZJ
• Origin：Wuhan, China

=== Description ===
Not includes PCIncludes PCLaser Source : Raycus  Max  IPG  available  Nominal average output power10W - 30W
10W - 50W Central emission wavelength1060-1070 nm ,Q-switched operation Output power adjustment range 10%-100%Emission Bandwidth
(FWHM)<10 nmLong-term average power instability<5%Pulse width, (FWHM)100 nsLaser switching ON time180 μsecLaser switching OFF time180 μsecPulse Repetition Rate* kHz20-80 kHzEnergy per pulse (PRR = 20 kHz)0.95 mJTypical beam quality, M2<1.8Output fiber delivery length3mOperating voltage220VMax. Power consumption600WNet Dimensions70*20*50cm58*22*50cm 80*38*72cm 143*62*101cmNet Weight44 kgs53 kgs 130 kgsGross Weight60 kgs70 kgs 200 kgsScanning Speed0-7000mm/sMarking Speed0-5000mm/sMarking size110mm×110mm (F-theta 160)Spot size≤ 40 micron (F-theta 160)Cooling unitAir cooledPilot laser650nm diode laser, visible red light for marking guideContinuous working time≥16hHumidity45~85% (no condensation)Operating temperature0~40ºCControl unitsLaser Mark (English Version)

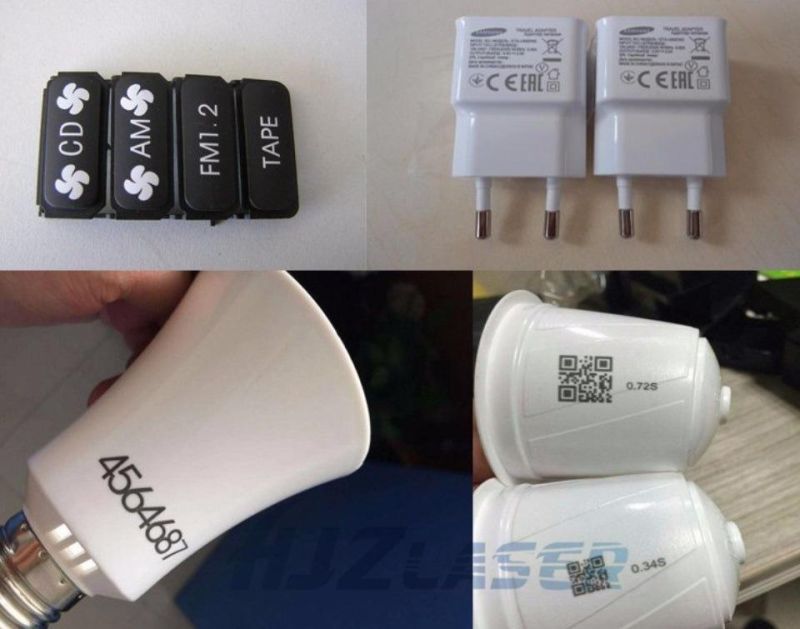

marking samles




Wooden packing for export

Pre-sale service:
1) According to customers demands, provide relevant technical guidance.
2) Assist customers to design and make laser engraving/cutting solutions considering technical feasibility.
3) Provide equipment demonstration for customers to investigate, make samples and do test, etc.

After-sale service:
1) 1 year warranty for laser metal marking machine;
2) Offer lifelong repair;
3) Engineers available to service machinery overseas.
4) Multi language service;
5) Offer 24 - hour technical support.

Training can be processed in the following ways:
1) Workers of customers can come to our factory in Wuhan, China to get the most professional hand-by-hand training.
2) We can send engineers to customers' country and do training for workers in customers' target factory. However, tickets and daily consumption like food and accommodation should be afforded by customers.
3) Remote training through Internet tools like Team-viewer, Skype and other instant communication software.

Guarantee:
We offer free Two-year warranty and durable maintenance&repair support for the purchased machines. Within the warranty time, we are responsible for the cost-free repair once the equipment fail or the machines break down(except human factor and force majeure causes) and we shall offer the replacement parts for free(except consumed parts). During the non-warranty time, we just charge the flat cost based on actual cost of repair.


FAQ
Q: Are you trading company or manufaurer ?
A: We are factory. And we have been in the laser field for 10 years.

Q: How long is your delivery time?
A: Generally, it will take 3 to 10 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Q: Do you provide samples? Is it free or extra ?
A: Yes, we could offer the sample for free charge, but customers should pay the courier cost.

Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shipment.
