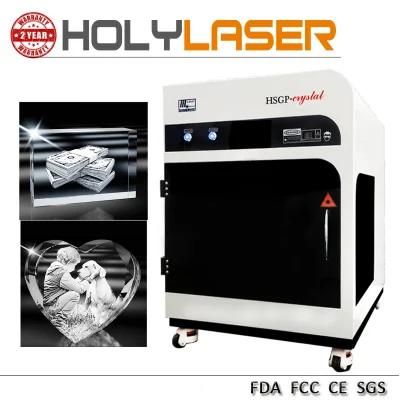

3D Crystal Laser Engraving Machine for Business

Zhuhai Hanbo Trading Co., Ltd. / 2022-06-23

Application：Crafts Industr, Glass,Crystal,Acrylic,etc
Cooling System：Air Cooling
Technical Class：Pulse Laser
Automatic Grade：Semi-Automatic
Applicable Material：Glass Crystal
Type：Oscillating Mirror

=== Base Info ===

Model NO.：HSGP-3KC
Laser Classification：Semiconductor Laser
Engraving Method：Vector Engraving
Machine Weight：260kg Including Computer
Color：White
Cooling：Air Cooling
Application Materials：Crystal Glass
Laser Power：3W
Laser Head：One
Pulse Width：7ns
Focus Diameter：0.02mm
Transport Package：Flight Box
Specification：CE FCC FDA SGS ISO
Trademark：HOLYLASER
Origin：Yiwu Zhejiang
HS Code：8456100090
Production Capacity：50 Sets Per Month

=== Description ===

Type

HSGP-5KB

HSGP-4KB

HSGP-3KC

HSGP-3KD

Laser wavelength

532nm

Laser frequency

5KHZ(5000HZ)

4KHZ(4000HZ)

3KHZ(3000HZ)

Max.pulse energy

1.2mj

Laser power

Pulse width

7ns

Beam quality

M2<1.5

Max.engraving speed point

≤300000dots/min

≤240000dots/min

≤180000dots/min

Max.marking scope

300*400*130mm

150*200*80mm

Laser head

one

Resolution

800DPI-1200DPI

Focal length

≥100mm

Focus diameter

0.02mm

Cooling

Air cooling

Application materials

Crystal Glass Etc

Device input power

AC220V±10%50-60HZ

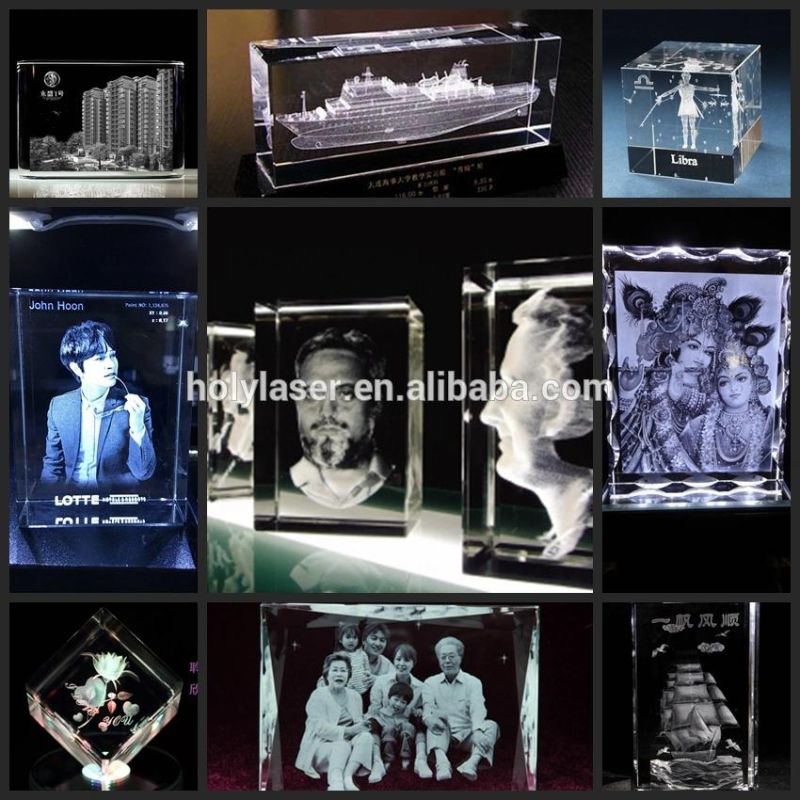

Samples showing:
3D Crystal Laser Engraving Machine for Business

Applicable:
Our HSGP-3KC series is a high resolution laser engraving machine, is really a fine processing machine with advantages of high fidelity and high stability, which is definitely suitable for fine model engraving processing centers, gift shops, craft shops, photo printing shops, wedding photography, souvenirs, personalized gifts shops, etc.

Suitable material:
Our machine suitable for engraving inside of the crystal cube, common glass. Transparent acrylic, and also can marking on surface of metal and hard plastic.

Product feature:
1.This machine can engrave on both 2D and 3D, (depends on your design).
2.Fast speed: only about 2 minutes can engrave a 50*50*80mm size crystal.
3.Good quality guaranty:
Laser source parts imported from Germany,
Laser Q switch imported from England,
Laser transport cable wire imported from France.
4. Strong team: Even our Engineers can speak English, strong support for service and training to customers.
5. Free maintenance.

Our Services:
1.We will train you the technology at our factory for free.
2.Our engineers could serve you 24 hours online.
3.We will send you the video show you how to use the machine step by step.
4.24 months guarantee for whole machine.
5.Machine has been adjusted before delivery.

Packaging & Shipping:
3D Crystal Laser Engraving Machine for Business

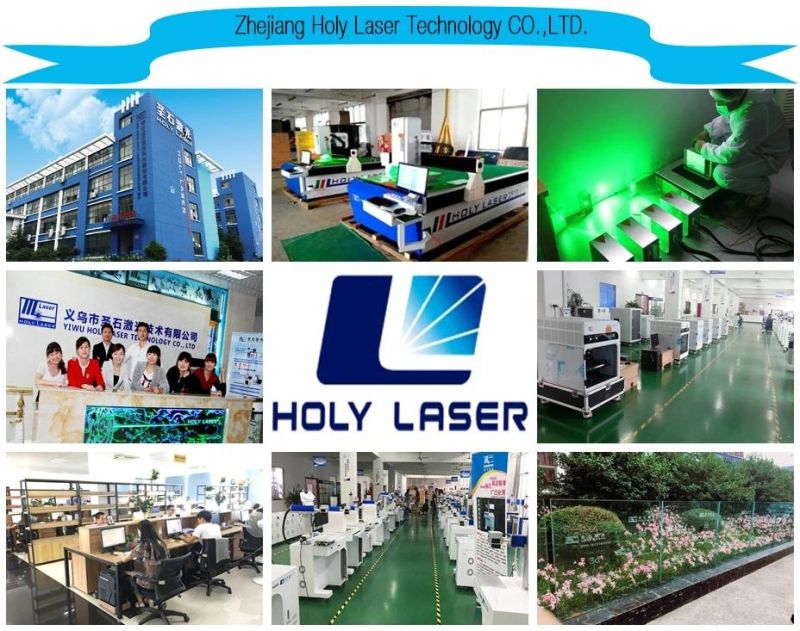

Company Information:
ZheJiang Holy Laser technology Co.LTD has worked hard to become the global leader in manufacturing of laser equipment. All our products has passed the CE, FCC, SGS, TUV and FDA special for American market. 2012, company has obtained 6 patents certificate for computer software technology. Holy laser has been in the laser business since established. We strive to update our technology in the direction of green, environment-friendly and energy saving. review the past Holy Laser won market recognition step by step.looking for ward the future, Holy Laser will continue to dedicate our company mission and ethnic spirit with you to open a new chapter in history.
