Basic Info.

Model NO. 50-160mm PVC Pipe 20-63mm Transport Package wood Trademark xjg Origin Zhangjiagang HS Code 8477800000

Product Description

50-160mm PVC Pipe extruder machine /PVC Pipe Extrusion Machines

Performance &Advantages:

1. GF series plastic pipe production line is mainly used in manufacture of the plastic PVC pipes with tube diameters and wall thickness, which are used for water supply and drainage in the field of agriculture and construction.

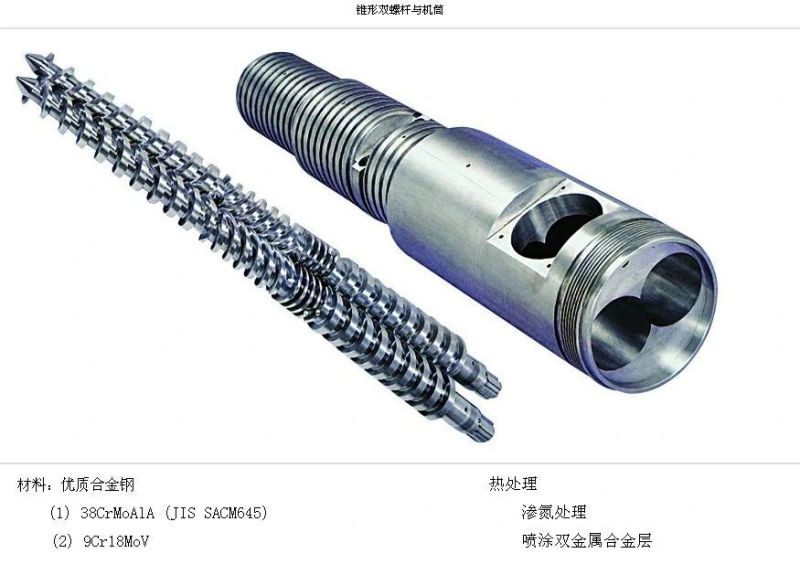

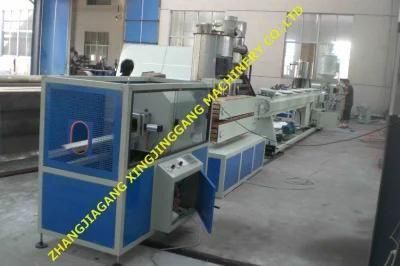

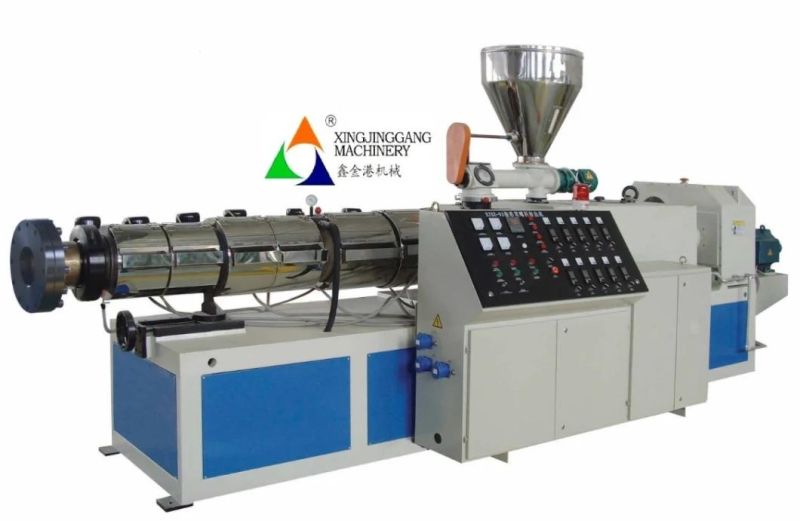

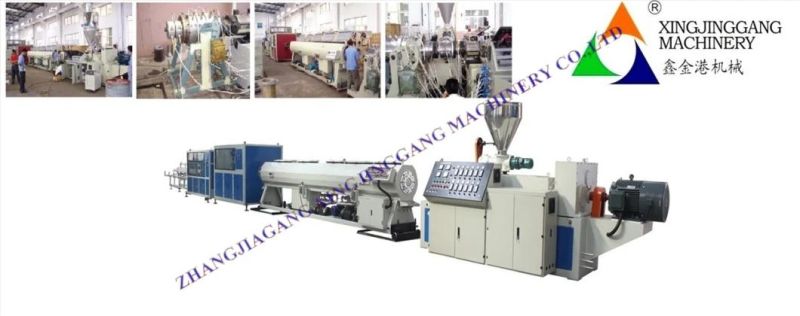

2. This /PVC Pipe Extrusion line is composed of conical twin-screw extruder, vacuum calibration table, haul-off, cutter, stacker etc.

3. The extruder and the haul-off adopt the quality AC frequency conversion control device.

4. The vacuum pump and motor adopt the famous brand.

5. The haul-off have two-claw, three-claw, four-claw, six-claw.

6. It may choose the saw blade cutting type or the planet cutting production efficiency.

7. Our company may equipped the special device for the manufacture of the inner wall spiral coil and core layer blister according to the client's requirement.

Pipe range(mm)	20-63	20-63(dual)	75-160	110-315	315-630
Extruder model	SJZ51/105	SJZ65/132	SJZ65/132	SJZ80/156	SJZ92/188
Motor power	18.5kw	37kw	37kw	55kw	110kw
Capacity	120kg /h	250kg /h	250kg /h	360kg /h	800kg /h
Lineal speed	10m /min	10m /min	6m /min	3m /min	1.2m /min
