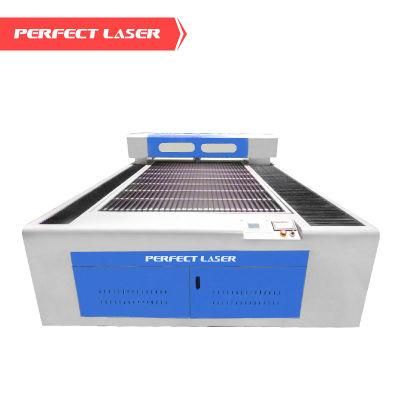

1300*2500mm Mixed CO2 Laser Engraving and Cutting Machine for Sale

• After-sales Service：Online Support
• Warranty：3years
• Application：Environmental Equipment, Textile Machinery, Food Machinery, Shoemaking Industry, Woodwork Industry, Advertising Industry
• Cooling System：Water Cooling
• Technical Class：Pulse Laser
• Applicable Material：Nonmetal

=== Base Info ===

• Model NO.：PEDK-130250M
• Structure Type：Gantry Type
• Laser Classification：Glass Laser Tube
• Laser Technology：Laser Control Fault Cutting
• Engraving Machine Type：Laser Engraving Machine
• Power：150W, 180W, 220W, 260W, 300W

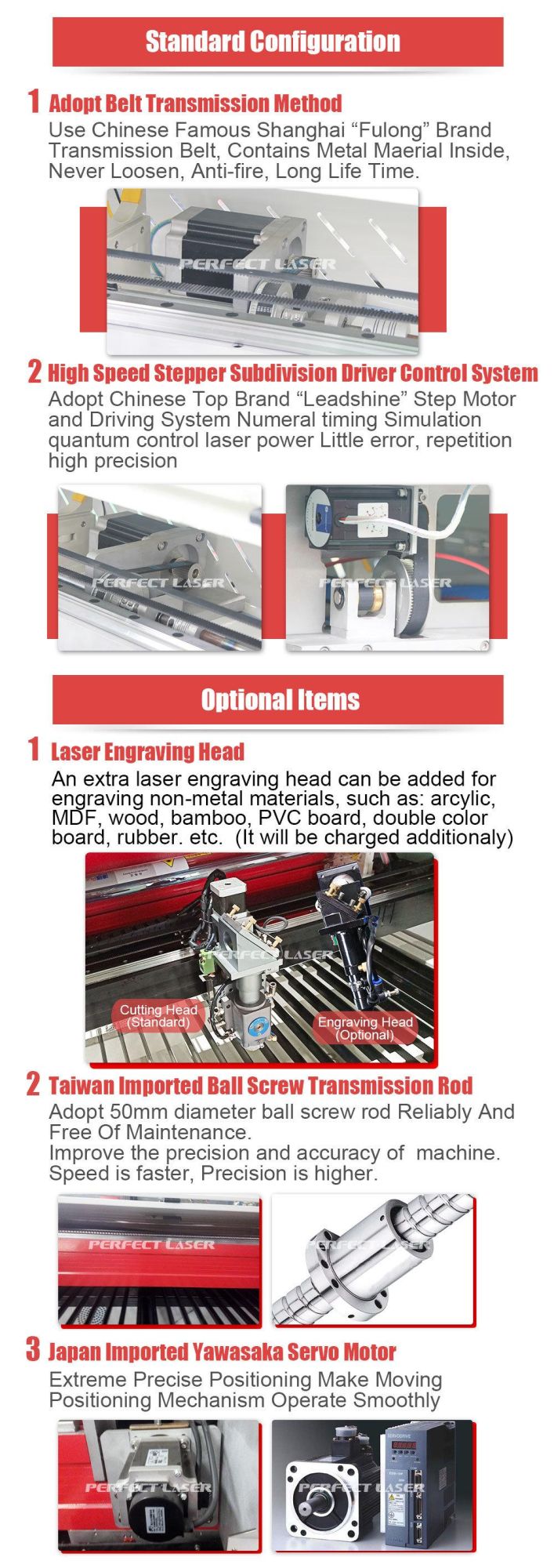

• Transmission Method：Belt Transmission
• Laser Type：CO2 Sealed Laser Tube, 10.6um
• Driving System：Leadshine Step Motor
• Working Table：Thicken Strip Working Table
• Laser Output Control：(0-100% Set by Software )
• Highest Scanning Precision：4000dpi
• Positioning Accuracy：±0.02mm,M
• Positioning Speed：20m,Min
• Control Software：Perfect Laser Professional Mixed Laser Cutting Mac
• Cooling Type：260W-300W Machine Use Cw-6000
• Transport Package：Sea-Worthy Packing or Air-Worthy Packing
• Specification：1300*2500mm
• Trademark：Perfect Laser
• Origin：China
• HS Code：845610
• Production Capacity：5000 Sets , Month

=== Description ===

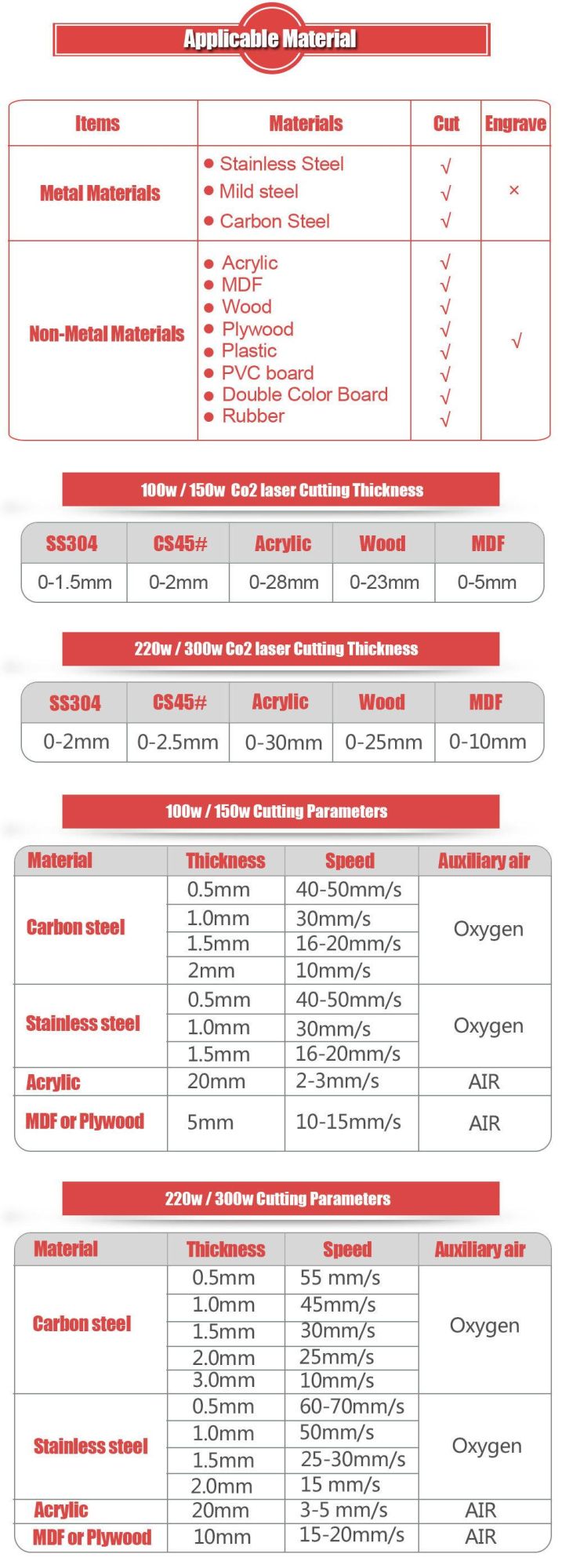

MetalStainless steel, Carbon Steel, Mild SteelAdvertisement
materialAcrylic engraving and cutting, plastic engraving and cutting, PVC board engraving and cutting, rubber plate engraving, seal engraving, organic glass engraving, Plexiglas engraving, marble engraving, granite engraving, Gum engraving, EVA materials engraving, paper engraving, and cutting.Wood material:Wood engraving and cutting, MDF engraving, plywood cutting, bamboo engraving.Garment material:Leather engraving and cutting, textile engraving, fabric engraving, cloth engraving, Shoe engraving, jeans engraving, carpet engraving, and cutting, toy cutting, woolen cutting, denim engraving, and cutting.


Advantages:

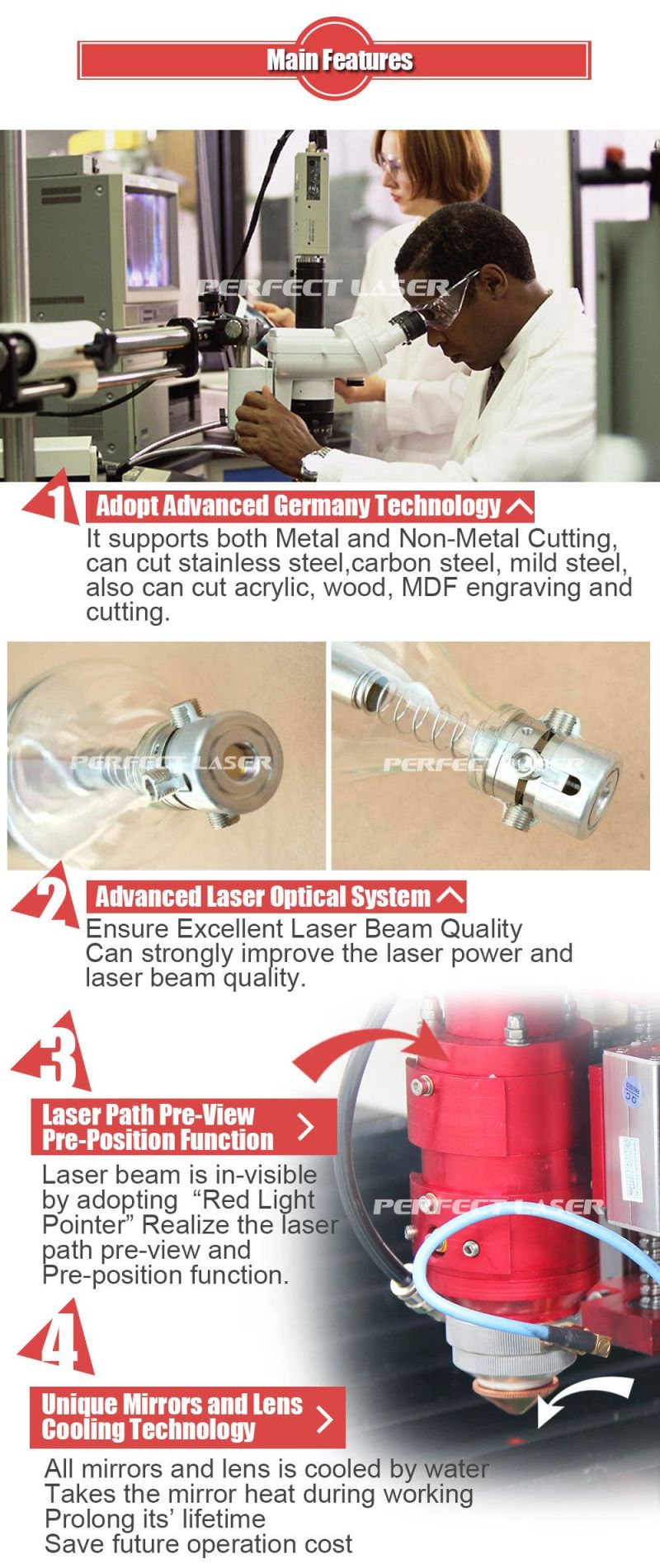

1) Max Cutting: It supports both Metal and Non-Metal Cutting for stainless steel, carbon steel, mild steel, and acrylic, wood, MDF engraving, and cutting.
2) Adopt 160w - 300w Laser Tube, high power, 10000 hours long life span.
3) Adopt Japan Imported Servo Motor and Ball Screw Transmission Rod, with fast speed and high precision.

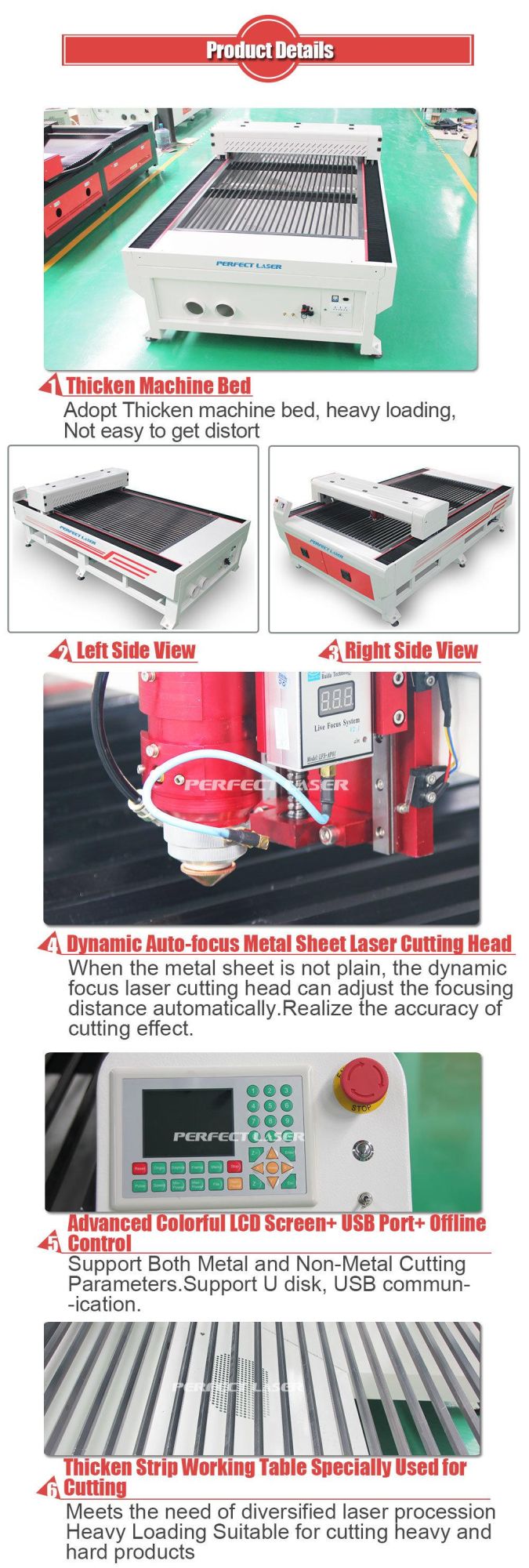

4) Dynamic Auto-Focusing Laser Cutting Head: When the metal sheet is not plain, the dynamic focus laser cutting head can adjust the focusing distance automatically.
5) Advanced LCD Touch Screen+ USB port+ DSP Offline Control, which can not only work without a computer but also connect to U disk, USB communication.
6) LCD Control System owns 128M Big Memory, which can store files in the machine for engraving and cutting, compatible with AutoCAD, CorelDraw, Photoshop, and some other kinds of graph disposal software.

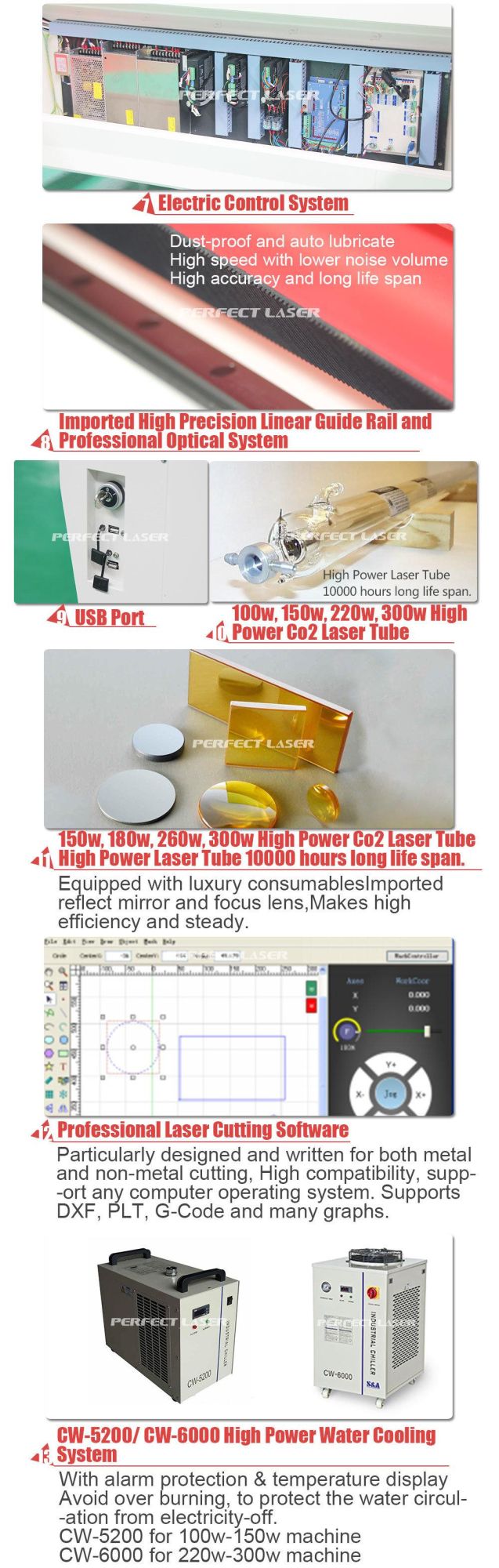

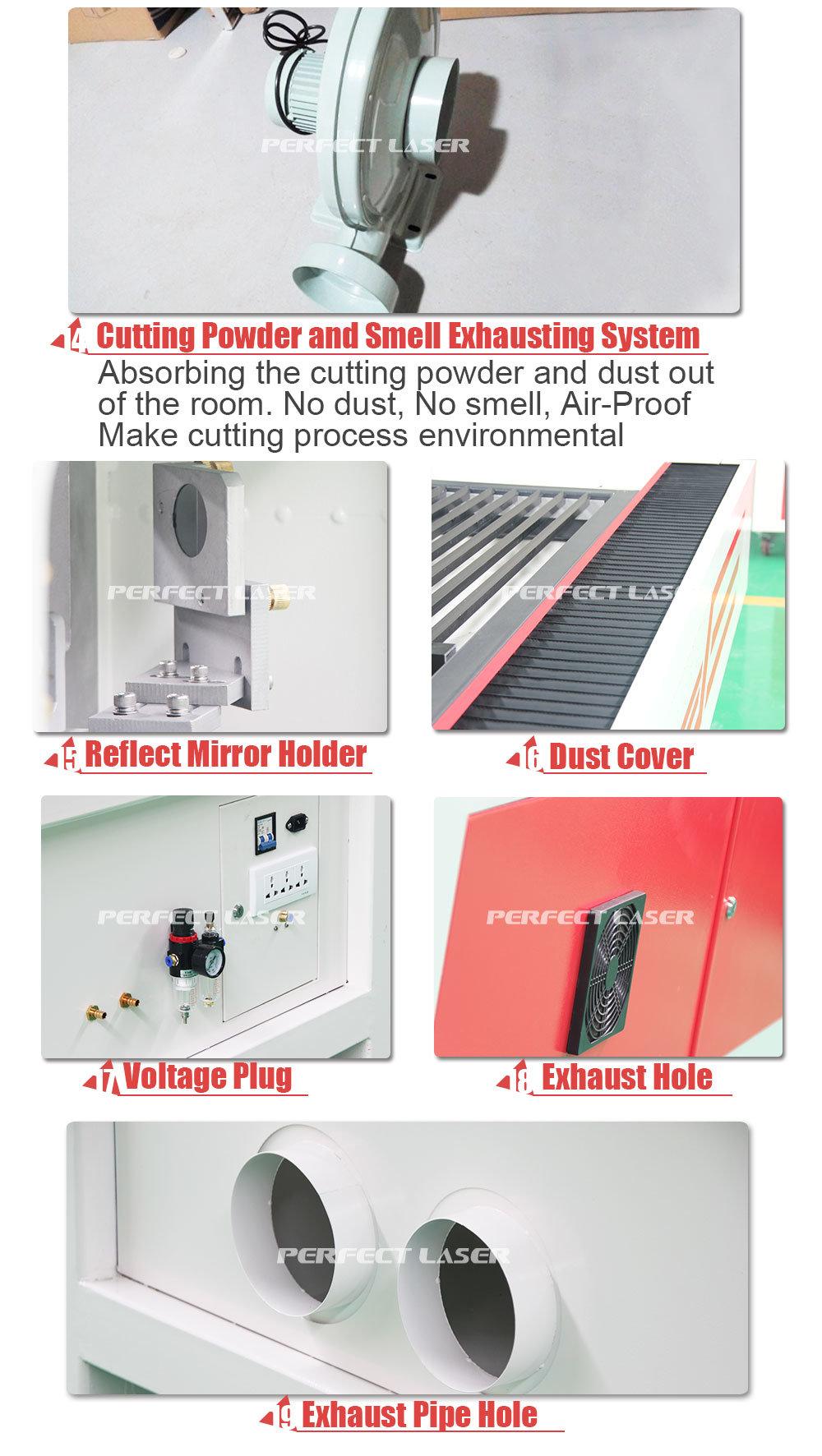

7) Imported high precision linear guide rail and professional optical system, dustproof and lubricate, which improve the engraving quality and prolong machine lifetime.
8) Professional Strip work table, which meets the needs of diversified laser procession;
9) Water Cooling System with Alarm Protection, adopt CW-6000 Water Chiller with temperature display, which can avoid over burning, to protect the water circulation from electricity-off.
10) Equipped with luxury Consumables, Imported Focus Lens, and reflect mirror, makes high efficiency and steady.
11) High-speed stepper subdivision driver control, numeral timing, simulation quantum control laser power, little error, repetition high precision, engrave 1×1mm little English character perfect.
12) Red Light Pointer realizes the exact position without laser.
13) Matched Professional software is particularly designed and written for engraving and cutting, with high compatibility, supports any computer operating system.

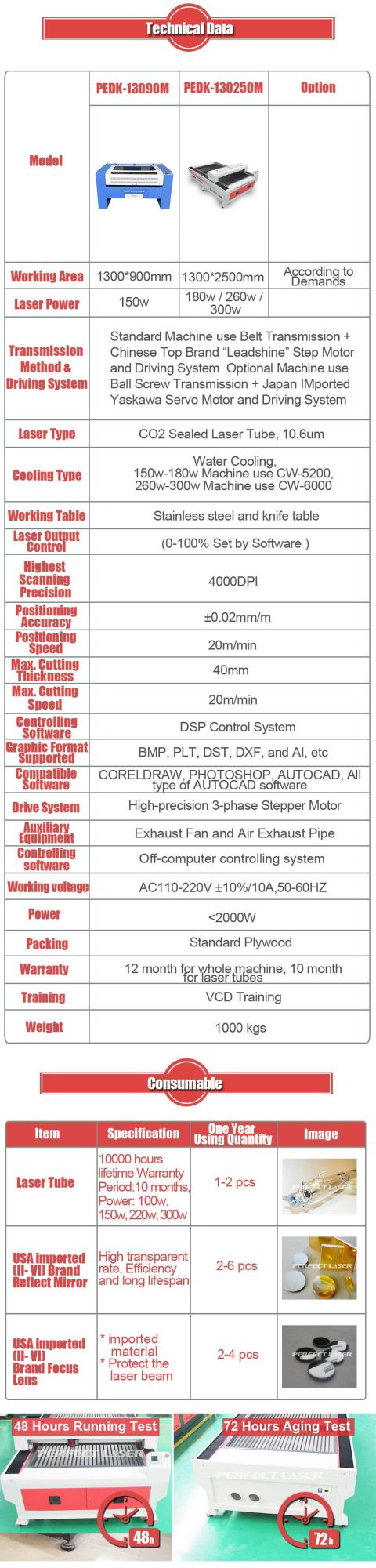

Technical Data:ModelPEDK-130250MWorking Area1300*2500mmLaser Power150W, 180W. 260w, 300w
Life Span: >10000 hoursCutting Materials:Metal & Non-MetalsCutting Speed1-10000mm/minEngraving Speed1-60000mm/minLaser TypeHermetic and Detached Co2 Laser TubeRepeat Location Accuracy± 0.0125mmLaser Power Controlling1-100% Manual Adjustment & Software ControllingVoltage220V(±10%) 50HzCooling ModeWater Cooling and Protect SystemCutting PlatformProfessional Thickening Strip Work TableControlling ModeCNC Professional Control SystemSupport Graphics FormatsBMP, HPGL, JPEG, GIF, TIFF, PCX, TAG, CDR, DWG, DXF Compatible HPG Order To Support DXF, WMF, BMP, DXTPower Controlling ModePerfect Laser Professional Laser Energy Combining Movement Control SystemControl SoftwareOriginal Perfect Laser Engraving & Cutting SoftwareTraining:Video TrainingGuarantee Period:12 Months

Please advise us the following information, then we can recommend you the most suitable model, right now, don't hesitate to contact -China Perfect Laser!

1. The exact material you want to cut? (Stainless steel, carbon steel, mild steel, acrylic, wood etc.)

2. The cutting depth on the above materials?

3. The working area you demand? (max dimension of material, width*length, 1300(900mm, 1600*1000mm, 1300*2500mm...)

Need more information please feel free to contact us-Perfect Laser!---Right Now!



Company Information:
Perfect laser Co. Ltd. (China) was founded in 1995, located in the core area of "China Optic Valley" - Wuhan city. Occupied with 3000 m2 ground, including R&D building and production area. It has more than 180 employees, most of them are with a bachelor degree or even a doctorate degree. Executed by reliable quality and reasonable price, our products get favorable sales success and outstanding reputation not domestically in China but also popular in more than 180 countries such as the USA, Italy, Korea, Singapore, Poland, Turkey, Sweden, Saudi Arabia to worldwide.
