Multi-Component High Pressure Elstomer Pouring Machine electric Type

Anhui Easton Trade Co., Ltd. / 2022-07-04

Multi-Component High Pressure Elstomer Pouring Machine electric Type

=== Base Info ===

=== Description ===

Basic Info.

Model NO. CPU30J-D Certification CE, ISO9001:2008 Transport Package Plywood Box Specification 2500*1500*2500mm Trademark ZCE Origin China HS Code 8477800000 Production Capacity 50/Month

Product Description

Product Description

Application: Applicable to the manufacture of casting polyurethane elastomer products whose cross-linking agent is MOCA or BDO etc, such as all kinds of rubber roller, high load sold core wheel, mine sleve plate, hydraulic seal ring, photovoltalc guide pulley and other highly wear-resistant materials in metallurgy, printing and dyeing.textile, mining and paper industry.

Features:
1.Independent PLC control system in the branch temperature controller o each group.With special electric heating system, oven, piping and valves which can be adjusted separately; multi-point temperature control device is used to ensure that the raw materialto maintain a constant temperature throughout the cycle process; temperature errors ≤ ±2 ºC.
2.The mixing device is equpped with stalic pressure balance device (patented technology), which removes flow error and improve measuring accuracy, meanwhle the stabllity is better; varlable cross-section straight tooth conical mixing head is used 1o ensure no visible bubbles in products.
3. Equipped with the color paste control system and the color paste directly goes into the mixing device; dtterent colors can be switched at any time; the mixing is uniform and the metering is accurate.
4. Adopt the imported PCL cortoller to monitor the entire device control system; it will automalically make judgment of abnormity, diagnosis and alarm, abnormal factors display, PLC module control, casting, automatic cleaning and air impact; stable performance and strong operabllty.

Working Condition

Component NameMixing RatioTemperature(ºC)Viscosity(CPS)
A Prepolymer100Room Temperrature-110100-3000
B MDI Semi-Prepolymer60-150Room Temperrature-110100-3000
C 14 Butanediol or BDO4-15Room Temperrature-130100-3000
Catalyst0.3-3Room Temperrature50-2000
Color Paste0.5-3Room Temperrature50-2000

Main Parameters

ITEM/MODELCPU30J-D1CPU30J-D2CPU30J-D3CPU30J-D4
Total Discharge Amount(g/min)250-25001000-50003000-100005000-15000
A Tank Capacity (L)160160250250
B Tank Capacity (L)160160250250
C Tank Capacity (L)30308080
Pouring Head Stirring Speed(r/min)3000-50003000-50003000-50003000-5000
Outline Size (L*W*H)(mm)1790*2940*24501790*2940*24501790*3040*24501790*3040*2450
Total Power (KW)35384040
Weight (kg)2680268028502850

Product Photos

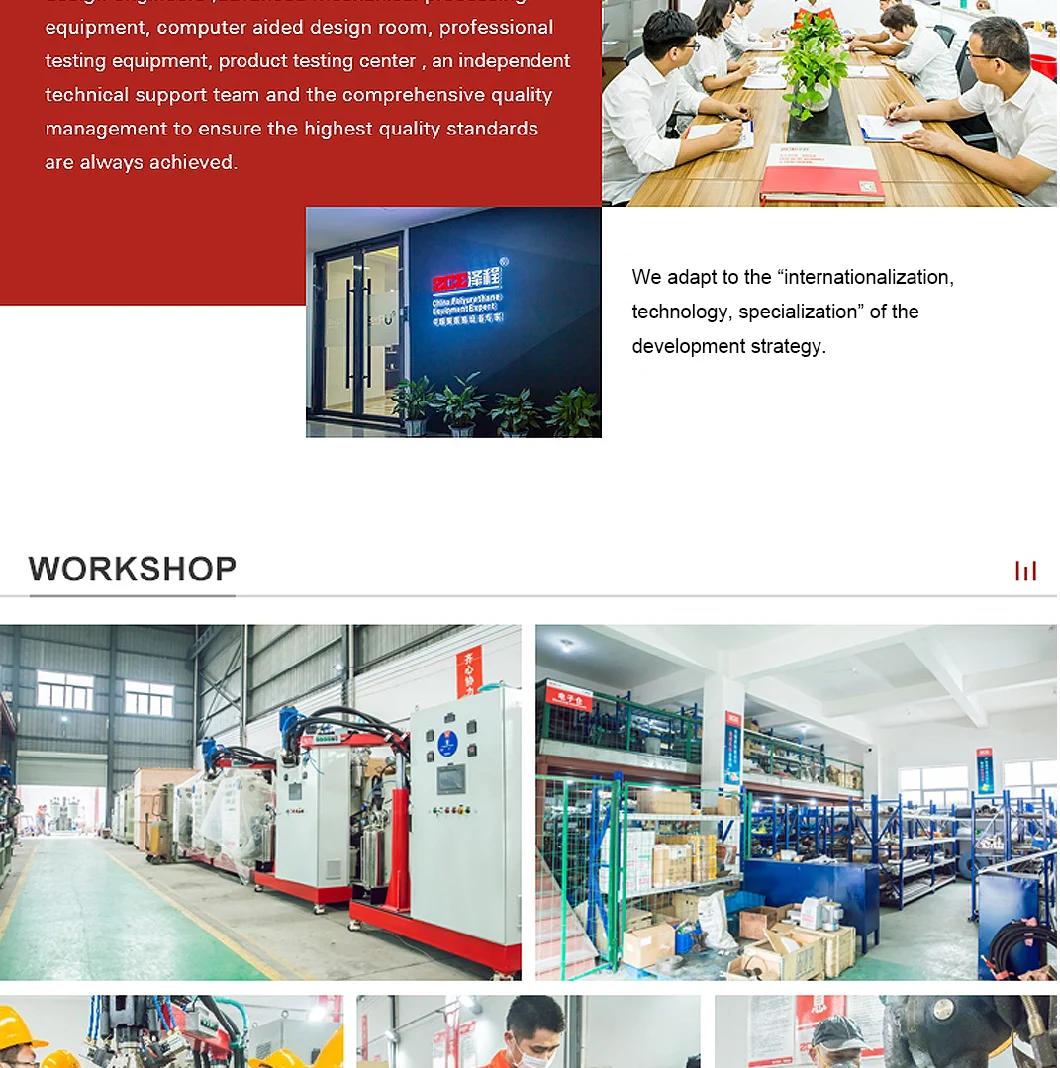

Company Information
