Ghana Middle Flour Plant Maize Mill Price

• Type：Flour Mill
• Application：Flour, Maize Corn
• Voltage：380V, 50Hz
• Appearance：Horizontal
• Press Materials：Corn
• Press Series：Fifth

=== Base Info ===

• Model NO.：HDF80T maize mill
• Condition：New
• Customized：Customized
• Transport Package：40′ Container Suitable for Ghana Middle Flour Plan
• Specification：32*14*8m
• Trademark：Hongdefa
• Origin：Hebei, China
• HS Code：84378000
• Production Capacity：100 Sets Maize Mill Machine,Equipment,Line,Plant

=== Description ===

Basic Info.

Model NO. HDF80T maize mill Condition New Customized Customized Transport Package 40′ Container Suitable for Ghana Middle Flour Plan Specification 32*14*8m Trademark Hongdefa Origin Hebei, China HS Code 84378000 Production Capacity 100 Sets Maize Mill Machine/Equipment/Line/Plant

Product Description

Ghana middle flour plant maize mill price



What is the specifications of Ghana middle flour plant maize mill?

1. Input maize --cleaner--maize moisture dampener --degerminator--roller mill--plansifter--super maize meal/special maize meal/maize grits,corn flour--packing

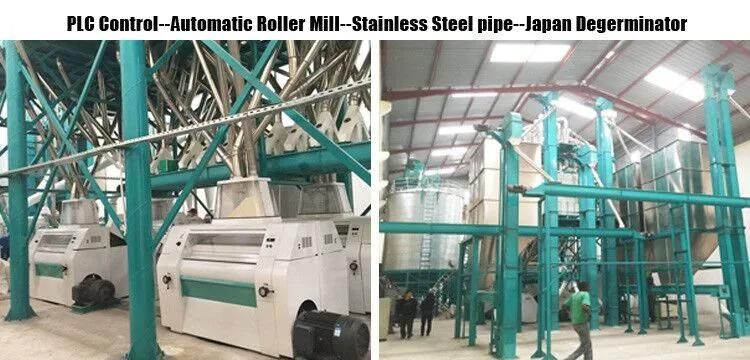

2.The control system: Control panel control or PLC control
3.Pipes in milling section are stainless steel
4.auto-roller mill and plansifter
5.Japan Degerminator technology
6.European Condition dampener

Main features of Ghana middle flour plant maize mill

1. Automatic complte line including cleaning, degerminating, milling, packing and controlling systems.
2. Complete function including clean corn, peel corn, and grind corn into corn flour and corn grits.
3. Clean corn to remove stone, metal, sand and all sorts of impurities.
4. Peel corn to remove corn skin, remove corn germ, remove black corn hilum. After cleaning and peeling, it prepares best corn material for further processing into corn flour or grits.
5. One line array up, low maintenance cost.



What is the final products of Ghana middle flour plant maize mill?

Our maize milling machines can produce super fine flour, super white corn meal, roller meal, breakfast meal, maize grits, fine maize flour, corn meal and bran.

You can make posho meal, ugali, sadza, fufu, etc.
pls let us know which final product you want, we will design the suitbale machine for it.





• This is our production of corn/maize flur, meal, grits flour for making posho, fufu, ugali, sadza, etc.



Main euqipments of Ghana middle flour plant maize mill

1. Cleaner of Ghana middle flour plant maize mill

The maize flow into the first sieve surface through feeding entrance. Inside this surface, large impurity on the upper sieve is discharged to the hopper.

The maize through first sieve surface to the second sieve surface for continual filter.

The small impurity is discharged on the soleplate straightly, the clean stock on the upper sieve surface come to the discharging hopper through the suction road.

2. Degerminator of Ghana middle flour plant maize mill

Dry degermination with low fat content. Combined with Buhler and Satake

Technology. Multi-faceted sieve tube design,the screen The high-quality stainless steel nitriding treatment

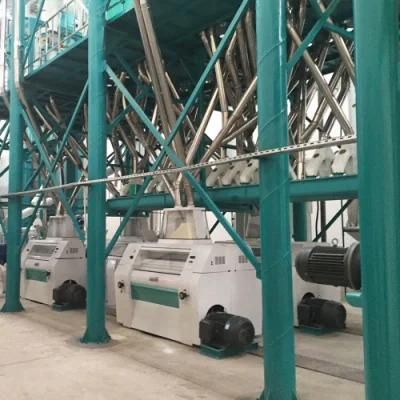

3. Roller mill of Ghana middle flour plant maize mill

1)The partitioned paneling and swing-out feed module guarantee ideal access to the feeding and grinding rolls. This makes residue-free cleaning possible.

2) a pulse generator automatically adjust the feed material at the entrance door

Roller: Two different alloys with a mixing ratio allow the perfect balance to be achieved between hardness and roughness.

4. Sifter of Ghana middle flour plant maize mill

1. Material: High-strength alloy steel
2. Using the new sieve box, the novel design patterns of sieve box increase the sieve area and capacity;
3. Vertical and horizontal clamping system, Sieve door and channel sealing strict, to ensure no flour fleeing and leakage;
4. The top of sieve is adopted adjustment clamping mechanism; simple, convenient, and easy operation;

5. Controlling system of Ghana middle flour plant maize mill

1)  Two Mode: Auto Mode & Manual Mode

2)  Data setting by English

3)  Real-time data display screen -- Process status monitoring screen

4)  Giving Alarm

5)  Showing Production Detailed Report

6. Auto-weight and packing machine of Ghana middle flour plant maize mill

Auto-Weight and packing system, one for 5-10kg;one for 10-25kg,one for 100kg.

The packing machine can be chosen by the client

Company Information

Shijiazhuang Hongdefa Machinery Co.,LTd is a professional manufacture of wheat flour mill and maize mill.

We provide high quality machine from 5 to 500 ton per day with different design according to our client needs, with European technology,South Africa maize process, China wheat process, roll out unique and innovative wheat flour mill and maize mill plant.

The head office of Shijiazhuang Hongdefa Machinery Co.,Ltd is located 4hours driving from Beijing.

Shijiazhuang Hongdefa Machinery have more than 30 years experience in milling market.



We have so many flour milling mahcines overseas, especially in Africa. Our engineers are experienced and professional. They are capable to guide local workers install the machine well. And they will responsible for commissioning and teaching local workers how to operate the machine.

Why buying the Ghana middle flour plant maize mill from our factory?

• 1. Client good feedback,first buy the small capacity of middle capacity,normally after 2years buy the bigger capacity.

Egypt client 2007buy the 60T/24h milling machine,2014 buy the 200T/24h milling machine
Brazil client 2009 buy the 80T/24h milling machine,2014 buy the 250T/24h milling machine
Zambia client 2013 buy the 50T/24h milling machine,2015 buy another 50T/24h milling machine

• 2.over sea service center available, 24h after service:
  Lusaka Zambia,Kinshasa RD congo,Addis Ababa Ethiopia,Multan Pakistan
  Durban South Africa,New Delhi India
• 3.Warranty 2years
• 4.Chinese profesional engineer guide installation and commissioning



Contact Information

Please contact us freely.We are 24 hours available.

Luna Du
Sales Manager


sjzafricachina.en.made-in-china.com

If you are interested in this Ghana middle flour plant maize mill, please contact us freely!

Thank you!
