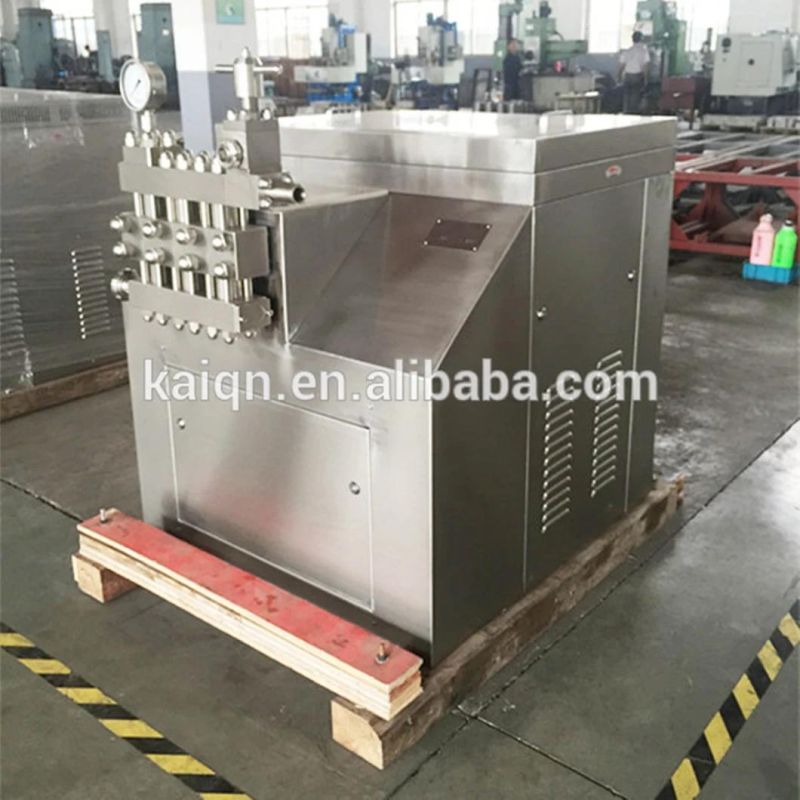

Small Homogenizer Industrial Homogenizer Types of Homogenizer Dairy Homogenizer

NINGBO HAISHU JUDIN PACKING PRODUCTS CO., LTD. / 2022-07-05

Small Homogenizer Industrial Homogenizer Types of Homogenizer Dairy Homogenizer

  • Process:Thermal Processing
  • Power Source:Electric
  • Certification:CE
  • Automatic Grade:Automatic
  • Application:Milk, Dairy, Milk, Juice, Beverage
  • Customized:Accept

=== Base Info ===

  • Model NO.:KQ-1000
  • Name:Small Homogenizer Industrial Homogenizer Types of
  • Material:Stainless Steel 304 ,316
  • Capacity:500L,H--10000L,H
  • Certificated:Ce Certificate
  • Pressure:250bar to 700bar
  • Homogenizer Life Time:More Than 10years
  • Motor Power:5.5-110kw.
  • Warranty:One Year
  • Homogenizer Spare Parts:Provided
  • Homogenizer Electricity:220V,380V,415V,440V
  • Packing:Wooden Box
  • OEM:Yes
  • MOQ:1set
  • Spare Parts:Available
  • Stage:Two Stage
  • Transport Package:Standard Wooden Box
  • Specification:CE
  • Trademark:KAIQUAN
  • Origin:Shanghai, China
  • HS Code:8479820090
  • Production Capacity:100 Units,Month

=== Description ===

Basic Info.

Model NO. KQ-1000 Name Small Homogenizer Industrial Homogenizer Types of Material Stainless Steel 304 /316 Capacity 500L/H--10000L/H Certificated Ce Certificate Pressure 250bar to 700bar Homogenizer Life Time More Than 10years Motor Power 5.5-110kw. Warranty One Year Homogenizer Spare Parts Provided Homogenizer Electricity 220V,380V,415V,440V Packing Wooden Box OEM Yes MOQ 1set Spare Parts Available Stage Two Stage Transport Package Standard Wooden Box Specification CE Trademark KAIQUAN Origin Shanghai, China HS Code 8479820090 Production Capacity 100 Units/Month

Product Description

Small Homogenizer industrial homogenizer types of homogenizer dairy homogenizer
Milk High Pressure Homogenizer, You Can Buy Various High QualityMilk High Pressure Homogenizer Products from us, the 250bar milk homogenizer
Small Homogenizer Industrial Homogenizer Types of Homogenizer Dairy Homogenizer

CE CERTIFICATED HOMOGENIZER FOR MILK, JUICE, DAIRY, ICECREAM, SOYBEAN MILK, HONEY
Soybean milk homogenizer, 40MPA homogenizer
Tea drinks homogenizer, juice homogenizer
Homogenizer pumps
High pressure homogenization is a standard industrial process for dairy products, to improve their stability and shelf life
Series is the kind of equipment which can homogenize the liquid material and make it become high-pressure spray. The high pressure homogenizer pump reciprocates the pump position, high press the liquid, fully mixed and refined the material.
The high pressure homogenizer can use to homogenize the dairy product material in high pressure, refine the fat globule, prevent or decrease the stratifying of the liquid material; Make the product much more nicety, to prove the quality of the product.
The high pressure homogenizer pump also the important equipment of the powder manufacture. (Such as pharmaceutical industry, chemical industry, etc. )Small Homogenizer Industrial Homogenizer Types of Homogenizer Dairy Homogenizer
             Model No.
Technical
parameter

KQ0.5-25

KQ1-25

KQ1.5-25

KQ2-25

KQ2.5-25
GJB3000-25
KQ3-25

KQ5-25
Rated pressure(MPa)25252525252525
Rated flow ( Liters/H )500100015002000250030005000
Medium temperature(C)≤85≤85≤85≤85≤85≤85≤85
Feeding pipe diameter(mm)25252525253240
Discharge pipe diameter(mm)15152020202025
Power of motor(Kw)5.57.5111518.52245

Volt and Electricity Flow220V,60HZ,3PH380V,50HZ380V,50HZ380V,50HZ220V,60HZ,3PH380V,50HZ380V,50HZ
Outline dimension (m)
Length * width * height
1.16×0.9×1.241.16×0.9×1.24

1.16×0.9×1.24

1.4×1.1×1.421.4×1.1×1.421.4×1.1×1.422.2×1.45×1.1

Weight(Tons)0.40.51.251.251.251.251.7

Small Homogenizer Industrial Homogenizer Types of Homogenizer Dairy Homogenizer
Small Homogenizer Industrial Homogenizer Types of Homogenizer Dairy Homogenizer
Small Homogenizer Industrial Homogenizer Types of Homogenizer Dairy Homogenizer
Small Homogenizer Industrial Homogenizer Types of Homogenizer Dairy Homogenizer
Small Homogenizer industrial homogenizer types of homogenizer dairy homogenizer
