Chsj-Mh2 Double Head ABA Film Blown Machine Co Exctrusion

=== Base Info ===

=== Description ===

Basic Info.

Model NO. CHSJ-MH2 Quality Guarantee 5 Years Transport Package to Be Packed in Wooden Box Specification 6.5*3*5.8 Trademark Chengheng Origin China HS Code 8477300000 Production Capacity 1000stes/Year

Product Description

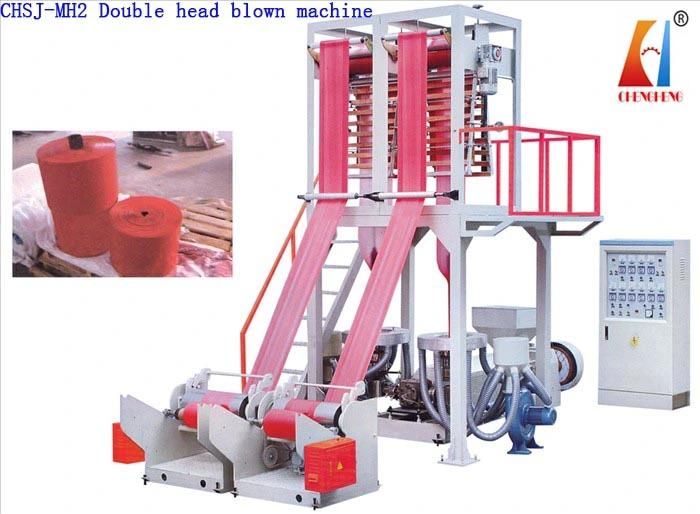

 CHSJ-MH2 double head ABA film blown machine





Model	MH2-ABA-55-50/700  / MH2-ABA-65-55/900
Film width (mm)	200-600mm   /250-800mm
Film thickness	0.006-0.15mm
max output	125kg/h /150kg/h According to different width,thickness of film, die size and raw material characteristics to change
Raw material	HDPE/LDPE/LLDPE
Diameter of screw	Φ55/50,30/1  /Φ65/55,30/1 SACM 645 ,bimetallic ,five years guarantee
Main motor	22kw/18.5kw    /30kw/22kw    100% Original three-phase variable frequency motor  Equipped with inverter control
Take up roller(mm)	700mm / 900mm
Weight	3800kg  /4200kg
Machine size	6.5*2.7*5  /6.5*3*5.8

Note:the above specifications,dimensions&design characteristics are subject to change without notice

Optional device:

Automatic Hopper Loader
Film Surface Treater
Rotary Die
Oscillating Take Up Unit
Two Stations Surface Winder
Chiller
Heat Slitting Device
Gravimetric Dosing Unit
IBC(Internal Bubble Cooling Computer Control System)
EPC(Edge Position Control)
Electronic Tension Control
Manual mechanics screen changer
Edge material recycling machine

Product feature

The whole machine is square structure

Traction inverter control, host frequency conversion control, (optional fan frequency control, winding frequency control) 100% inverter motor + frequency
converter control
Full enclosed overtemperature cooling device
Brand  Industrial electricity
 Lambdoidal board
Ceramic heater

OPTIONAL DEVICE:

* Automatic hopper loader
* Film surface treater
* Rotary die
* Oscillating take up unit
* Two stations surface winder
* Chiller
* Epc(edge position control)
* Electronic tension control
* Manual mechanics screen changer

PRODUCT FEATURE:
1.The whole machine is square structure.
2.Traction inverter control, host frequency conversion control, (optional fan frequency    control, winding frequency control) 100% inverter motor + frequency Converter control.
3.Full enclosed over temperature cooling device.
4.Brand  industrial electricity.
5.Lambdoidal board.
6:Ceramic heater.

HS CODE: 8477309000
