Basic Info.

Model NO. KQZ-200D Drilling Way Impactor Type Four-Wheel trailer Power 11kw Air Pressure 1.45-2.5MPa Air Consumption 15-27L/Min Transport Package Full Container Specification Weight 1800kg Trademark Match Origin Shandong, China Production Capacity 5sets/Week

Product Description

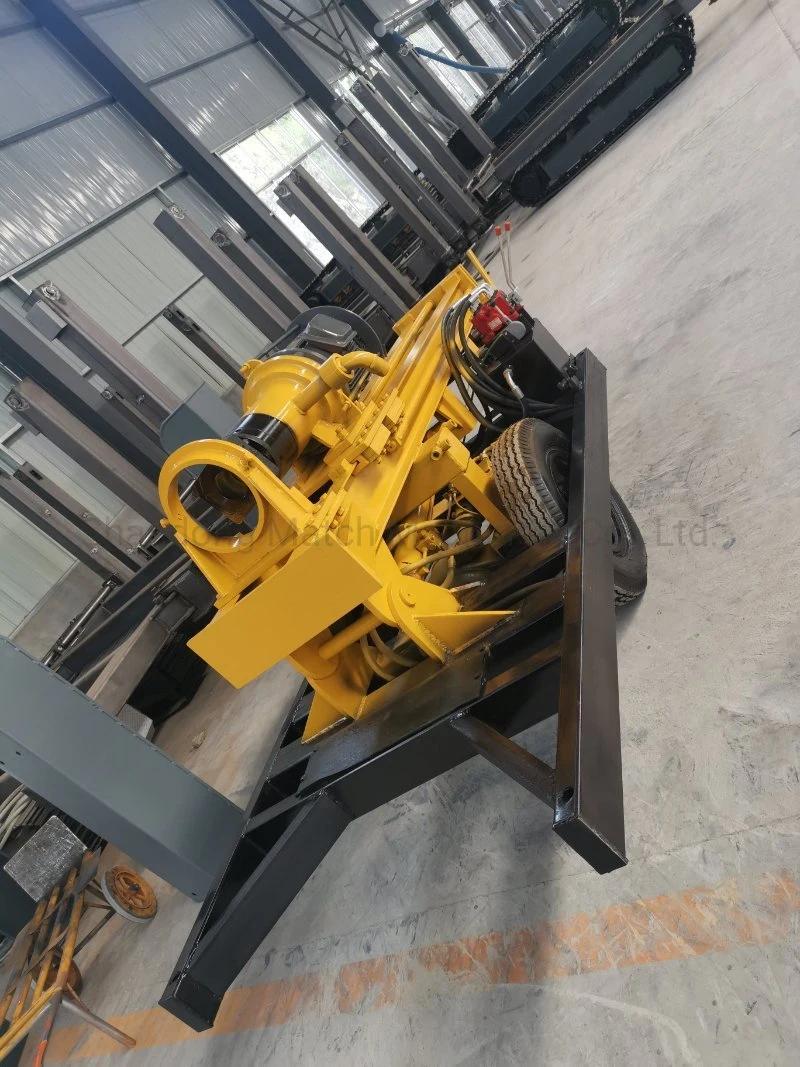

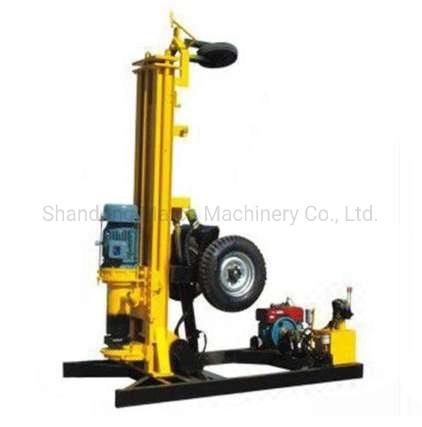

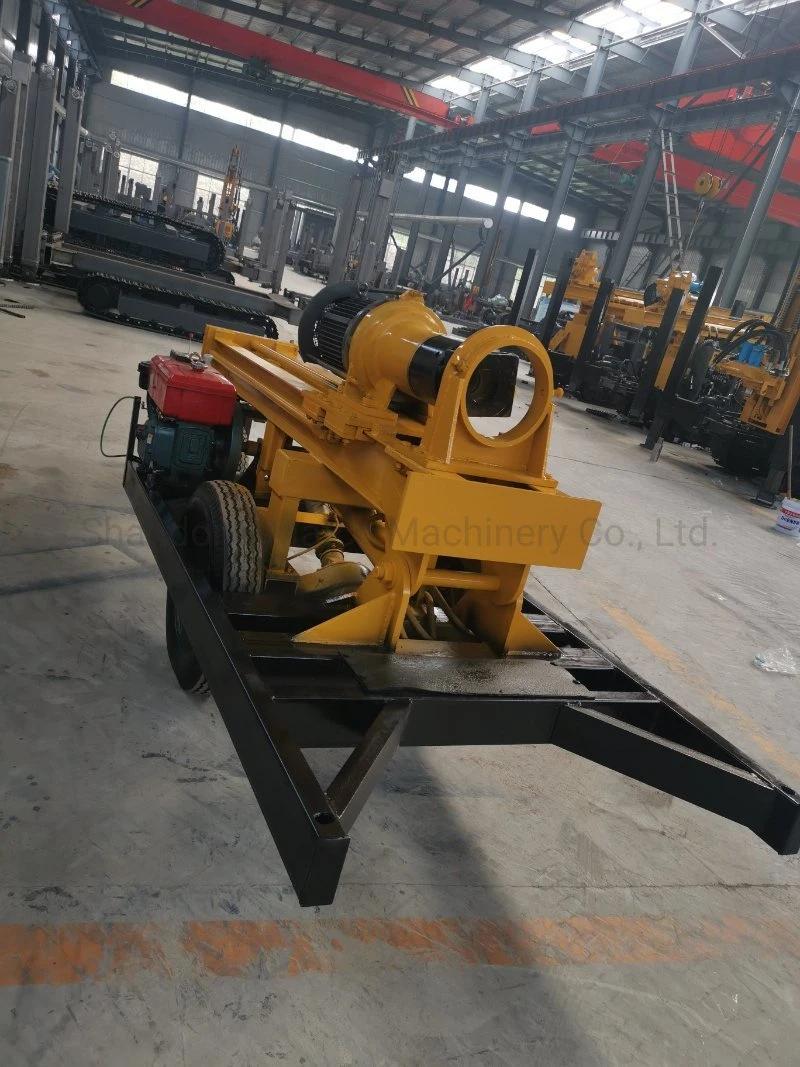

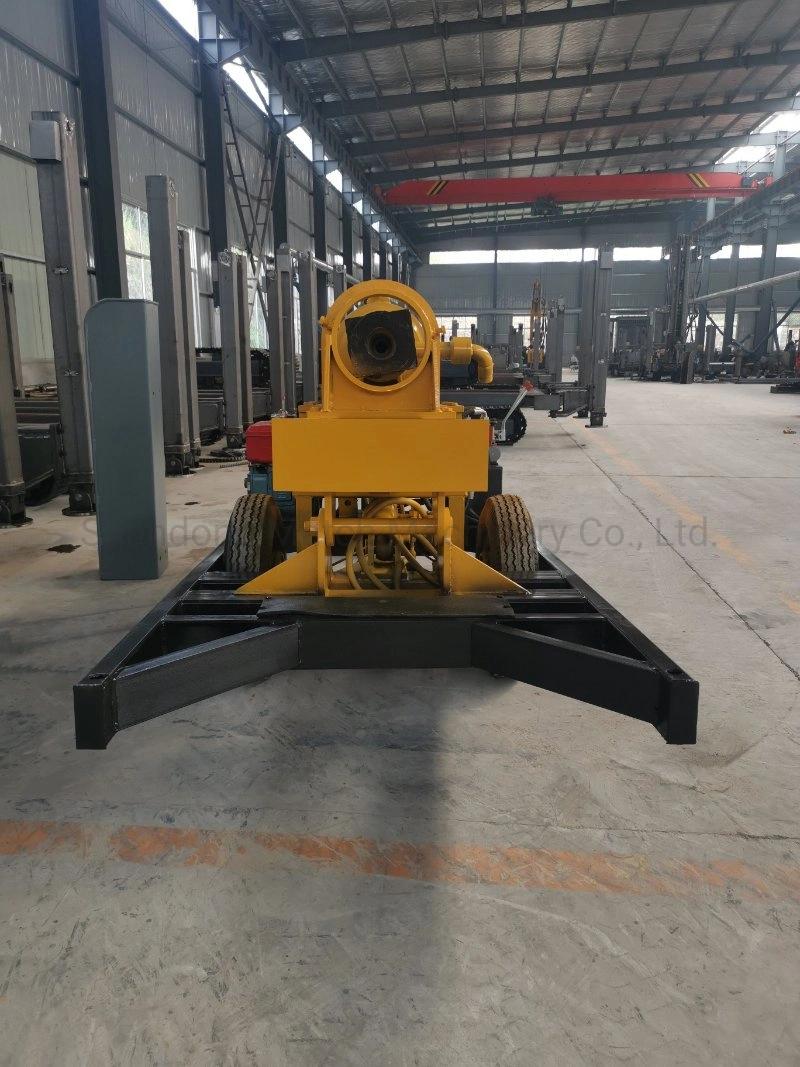

KQZ-200D pneumatic borehole driilling machine water well drilling rig

The hydraulic well drilling machine has the configuration standardization, compact structure, low failure rate characteristics, once launched namely get market recognition, application range from mining engineering construction has been extended to civil drilling, geothermal drilling and other fields,widely used for engineering, civil drilling, geothermal drilling,this series of products with the leading comprehensive won a good market reputation.

Features

1).Multi-purpose:suitable for drilling and engineering construction,widely used for engineering, civil drilling,geothermal drilling.

2).Good quality:it has the configuration standardization compact structure, low failure rate characteristics.

3).Applicable areas:it can work in any temperament,and mostly used in mountain,foothills areas.

4).Fast speed:drilling speed is 1m/3-7minutes,but other brand machine is more slowly than it.

5).Cost little:it can work with 2 people,save manpower cost,and its drilling speed is more quickly.

6).Motor:it can work with the motor for 11Kw,and with it you can configuration air compressor.

Product Parameters

Model	KQZ180D	KQZ200D
Hole diameter	100-219mm	80-219mm
Hole depth	150m	200m
Total weight	1000kg	1800kg
Use pneumatic	0.8-2.1mpa	1.45-2.5mpa
Motor power	7.5kw	11kw
One-time launch length	1.8m	1.5m
Drill post back speed	0-62	52
Gas consumption	13-21m3/min	14.5-26 m3/min
Drilling direction	ground into 45-90 degrees	ground into 45-90 degrees
