Holylaser Fiber Laser Marking Machine Hsgq-50W 100W

• Laser Visibility：Visible
• Applicable Material：Metal
• Cooling System：Air Cooling
• Technical Class：Pulse Laser
• Laser Wavelength：Fiber Laser
• Laser Classification：Semiconductor Laser

=== Base Info ===

• Model NO.：HSGQ-50W
• Type：Optical Fiber Laser Marking Machine
• Marking Method：Scanning Marking
• Waelength：1064
• Output Power：10W 20W 30W
• Marking Area：70*70 110*110 140*140 200*200
• Marking Depth：0.2mm
• Marking Speed：7000mm,S
• Min.Line Width：0.001mm
• Min.Character Size：0.15mm
• Cooling Way：Air Cooling
• Location：Red Location
• Power Supply：AC110V AC220V
• Transport Package：Wood Case
• Specification：CE, FDA, SGS, TUV
• Trademark：Holylaser
• Origin：China
• HS Code：8456100090
• Production Capacity：500 Sets,Year

=== Description ===

Basic Info.

Model NO. HSGQ-50W Type Optical Fiber Laser Marking Machine Marking Method Scanning Marking Waelength 1064 Output Power 10W 20W 30W Marking Area 70*70 110*110 140*140 200*200 Marking Depth 0.2mm Marking Speed 7000mm/S Min.Line Width 0.001mm Min.Character Size 0.15mm Cooling Way Air Cooling Location Red Location Power Supply AC110V AC220V Transport Package Wood Case Specification CE, FDA, SGS, TUV Trademark Holylaser Origin China HS Code 8456100090 Production Capacity 500 Sets/Year

Product Description

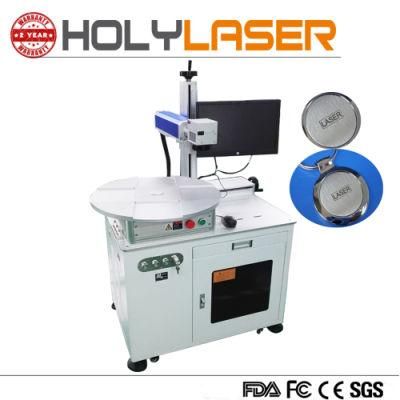

Holylaser fiber laser marking machine HSGQ-50W 100W

Application,

HSGQ-series used for marking on metal and some non-metal materials, with great resolution and high defination. Can mark logo, letter, series number, 2d code ,etc,Cutting also.


Samples Display



Suitable Materials,

Metal: Steel, s.s, silver, golden, aluminum, iron, etc.

Non-metal: hard plastic.

It would be much appreciate that you could provide some materials, we would like text on it, and send you the video and samples. For different materials, professional test would be good.



Company Info,

Zhejiang Holylaser Technology Co., Ltd, located in Zhejiang provience,  supported by government, updating the technology skills by Zhejiang University, will be listed in stock market.

We are the leading of laser equipments with 17 years good reputation all over the world,  our main products are 3D laser engraving machine, fiber laser marking machine, co2 marking machine, large size glass engraving machine. All products with CE , FDA, FCC, SGS, TUV approved.

Our machine have already exported to Germany, Italy, Spain,Portugal , Russia,  Franch, Holland,  Turkey, Croatia, Saudi Arabia,the USA , Canada , Mexico,  the Philippines, Japan, Korea, India, Singapore,etc.

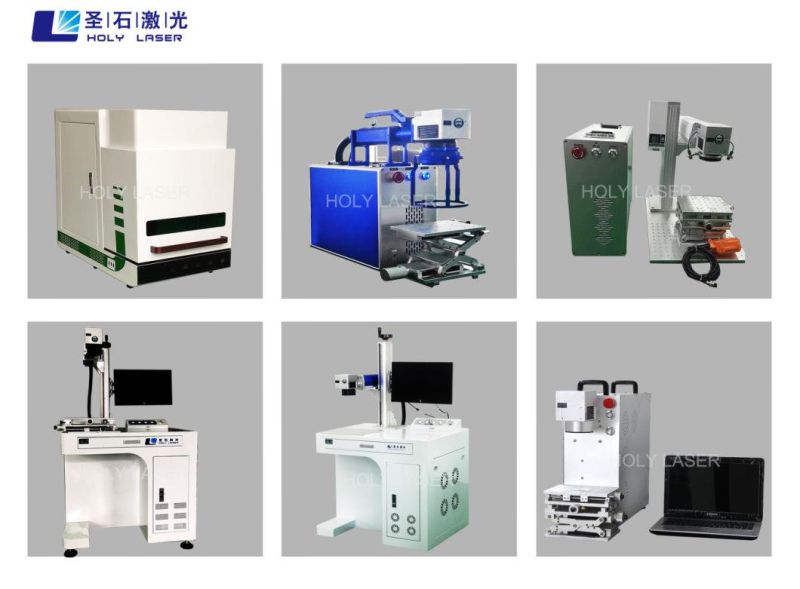

Model Display

Cause since 2000 , we manufacture fiber laser, we have experience in design model for customers, here are some of the model show. such as design protecting house , flying marking model.



Our Service,

1. 2 years warranty for whole machine,

2. all lifetime technical support,

3. 1-3 days training, our machine is easy to operate.

4. design file as your need,

5. optional language of software.



Trade Terms:

1, Payment: By L/C or T/T or Western Union etc, and you can contact us.

2, Delivery time: 7-10 working days.

2, MOQ: 1set




Technical Parameter


Laser / laser wavelength	1064 nm
Location	Red Location
Marking speed	7000mm/s
Cutting function	Yes (depend on the materials)
Emergence Button	Yes
Working Area	70/110/140/220/300mm (optional)
Foot switch	Yes
Continuous working time	24 hours
Cooling way	air cooling
Lifetime	more than 100000hours
Power	220V or 110 V (+/- 10%), 50Hz or 60 Hz
Suitable materials	metal, and non-metal
Working environment	temperature10-28° C, humidity
Operation system	Windows XP, Windows 7
Software language	English,
After packing weight	150 KG

FAQ


Q1, Is there any parts easily broken?

A1, Absolutely not, our machine is maintainess free.


Q2, How long the machine can be used?

A2, The laser lifetime more than 10000 hour, about 10 years.


Q3, If unluckily, some wrong happen, what should I do?

A3, Our afterservice will be online 24 hours, any problems you can contact us , we will checking the machine online, is the problems is small, we will teach you how to deal it, if the some parts broken, we will repair it for you.


It would be much appreacite that you would add my skype /  whatsapp, we could talk about more details about machine, also you can send me email, Thx in advance.

 We are waiting for your kindly inquiry.
