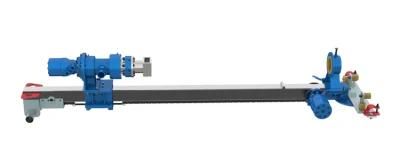

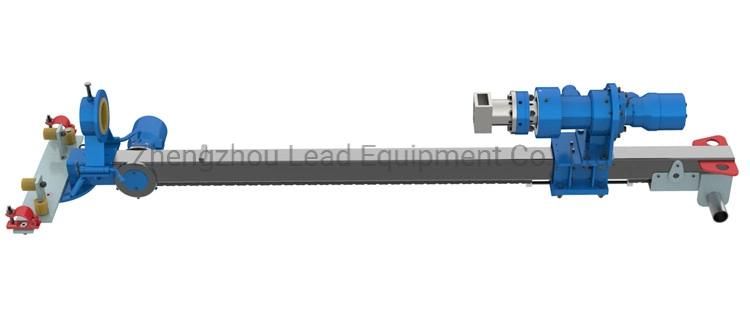

portable hydraulic chain feed drilling machine used for Core Drilling

=== Base Info ===

=== Description ===
Overview Product Description

Detailed Photos

Super portable, Super lightweight

Hydraulic portable chain feed drilling machine is widely used for the below project:

• Product Parameters



  Model	LPD100H
  Hole Diameter	80~120mm
  Hole Depth	30m
  Feed Force	12KN
  Rotate Speed	90~120rpm
  Torque	1000NM
  Air Pressure	0.5~0.7Mpa
  Air consumption	7~8m3/min
  Single feeding distance	1m
  Drilling Direction	Any Angle
  Weight	86Kg (Only drill machine)

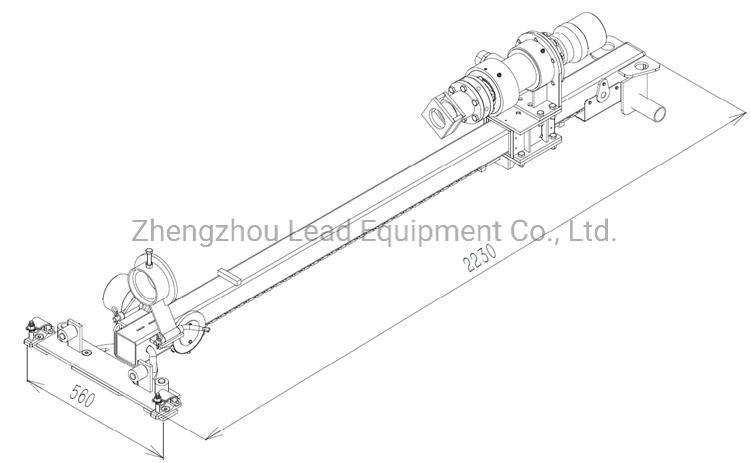

  Dimension	2230x560x415mm


  If you are looking for this product, please contact us and support customization!
