• Type：Dryer
• Voltage：380V
• Power：1.5KW
• Customized：Customized
• Name：Dehydrated Vegetable Fruits Processing Line
• Function：Multifunctional

=== Base Info ===

• Model：Five-Layer Steam Dryer
• Power(W)：28.4kw
• Heating Temperature：200 Degrees
• Weight：380kg
• Capacity：800kg,H
• Belt Length：4m,8m,12m,16m,20m
• Dimension(L*W*H)：9600*1700*3500mm
• Material：304 Stainless Steel
• Feature：High Efficiency
• Application Fields：Snack Food Factory, Commercial Catering, Flour Mil
• Warranty：1.5 Year
• Heat Source：Electricity, Steam, Gas
• After-Sales Service Provided：Video Technical Support, Engineers Available to Se
• Transport Package：Wooden Case
• Specification：3500*1200*1400
• Trademark：KeySong
• Origin：Shandong China
• HS Code：8438800000
• Production Capacity：30et,Month

=== Description ===

Basic Info.

Model Five-Layer Steam Dryer Power(W) 28.4kw Heating Temperature 200 Degrees Weight 380kg Capacity 800kg/H Belt Length 4m,8m,12m,16m,20m Dimension(L*W*H) 9600*1700*3500mm Material 304 Stainless Steel Feature High Efficiency Application Fields Snack Food Factory, Commercial Catering, Flour Mil Warranty 1.5 Year Heat Source Electricity, Steam, Gas After-Sales Service Provided Video Technical Support, Engineers Available to Se Transport Package Wooden Case Specification 3500*1200*1400 Trademark KeySong Origin Shandong China HS Code 8438800000 Production Capacity 30et/Month

Product Description

Food grade vegetable cutting washing dehydrating packing line fresh salad machine fruit&vegetable production



Summary

Pre-treatment production line for dehydrated vegetable is specially designed for pre-treatment of vegetables before drying. It is mainly composed of cleaning machine, sorting machine, cutting machine, blanching machine, cooling machine, drying machine, blending machine and etc. It can be used for cleaning, sterilization, washing, blanching, color protection, cooling, water filtration and blending of various vegetables. With features such as simple operation.

Reasonable structure, convenient maintenance, wide application, and free combination of temperature and speed adjustment etc, it is a special device of higher automatic degree. In addition to replacing heavy manual work, it also reduces production cost and improves production efficiency, receiving high favor from users.

Technological process

Drying processing line

washing--cutting--blanching--normal temperature cooling--dewatering--drying



Fruit And Vegetable Industrial Bubble Mango Washing Machine

Bubble washing machine has been widely used in food processing industry, which helps solve the washing problems of vegetables, fruits, seafood,etc. And it can help save time and manpower at the same time. The fruits or vegetables are soaked in the water and are subjected to thorough agitation by means of powerful blower to remove dust and such foreign particles. The water pressure sprays can be installed to rinse the products. The unique design of the machine completely eliminates human interference and provides full control for speed adjustment. The washing machine can also be equipped with other equipment as a part of the whole production line to meet the various requirements of our customers.



vegetable cutting machine

1. This commercial vegetable cutting machine is used to cut vegetables and fruits into slice, chips, julienne, cube, dice, etc. Such as, potatoes, carrots, eggplant, onion, bamboo shoots, celery, cabbage, spinach, etc.
2. The commercial vegetable cutting machine adopts high quality stainless steel materials, it's healthful and safety.
3. The cutter also adopts high quality stainless steel materials, it's with high hardness and toughness, very durable.
4. The hairbrush under conveyor belt, it can help the vegetables all drop out and prevent the vegetables block off.

Blanching machine

Cooking and blanching line is automatic machine designed by our company according to customer needs and material characteristics.

The machine includes automatic transmission system,prevent the floating system,overflow system,heating automatic control system,automatic temperature control system.
The machine can remove the odor and deactivation of enzymes after cooking and blanching.tighten the material internal organization structure,so that the material is not easy to loss of smell.

The machine is made by high-quality SUS304 stainless steel, cooking temperature and speed can be set according to the technological requirements. It has advantages of running smoothly, low noise, low flexibility, easy to maintain and not easy to deform, the water temperature is controlled by the temperature controller automatically, speed adopt frequency conversion.





Structure of Vegetable and fruit mesh belt dryer:

* Main frame

* Head & Tail

* Feed port and discharge port

* Stainless steel box

* Stainless mesh belt

* Transmission Part(motor,reduction box,coupling,transducer,shaft, chain wheel)

 * Dehumidification system(pipeline, fan)

 * Observation door( Clean up the dross, also can observe indoor circumstance)

Technical Parameter:

Model	Electric(gas/diesel) Consumption	Heating Temperature	Output	Dimension
Three-layer gas/diesel dryer	7-10L/h	200°C	150kg/h	6500*1600*2000mm
Five-layer steam dryer	28.4kw/h	200°C	800kg/h	9600*1700*3500mm
Seven-layer dryer	48kw/h	90°C	100kg/h	9000*2400*3000mm

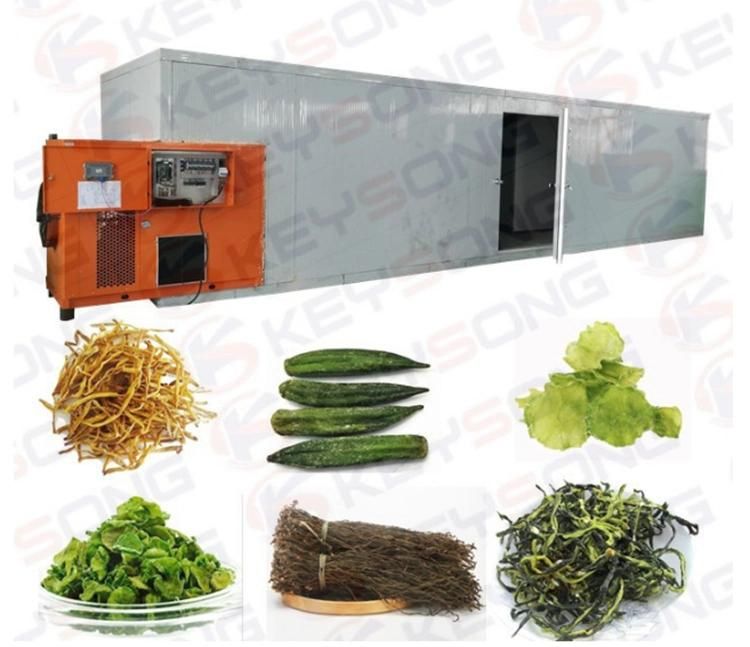

Dehydrated vegetable and fruits samples




Materials:

1.The machine body is made of standard SUS304,which is up to food degree.

2.The motor is good quality national standard copper core motor.

3. The electrical components are of good quality.

4. More than 10 years manufacturing experience ensure every machine is in good

performance.

Packaging and shipping:
  Every machine is packed with great care and tough material. It is packed with cling films first and then film bags. At last, it is packed with wooden case which is reinforced with the iron bar on the top and bottom.With this kind machine, all our laser machine can protect well during long trip by sea or by train.We can transport machine by boat or by training, according to your requirement.

Competitive Advantages:
1. Guaranty: One Year.
2. One set of consumable accessories will be provided with the machine.
3. Any question, you can mail/call us at any time. And our most experienced engineers are assigned to give consulting service, and always available for dispatching abroad.
4. All spare parts are always available for delivery.
5. Manual is in English.
6. Minimum order: 1 set
7. Prompt Delivery: 15-20 working days after receiving deposit
8. Installation: sending one technician to the customer's factory for installation and training.
9. Packaging: firstly packing with plastic inner side, then strengthening with wooden case outside.

Company Information:
  Keysong was founded in 2013. Specializing in producing food machines for more than 6 years. Since its inception, it is specializing in the manufacture, research, development, sales and after-sales of food extrusion machine, puffed food production line, fruit and vegetable washing and drying processing line.

Our History:
In 2013, Keysong was established, concentrating on manufacturing and selling extrusion snack production line at home and abroad.
In 2014, Keysong broke traditional breakfast cereal production technology, and invented new production process.
 In 2015, Keysong moved to a new workshop, which covers the area of 5000 square meters. In 2015, we have our agency in India, Nigeria, Thailand, Morocco and Algeria.
In 2016, Keysong cooperated with Shandong Liwei Microwave equipment, started researching on food microwave drying technology. In August, 2016, Keysong build a team, concentrating on researching on the technology of vegetables and fruits washing, cutting, drying and freezing. And has received great results till now.

Factory

Office

Customer

  About us & more details:

MOQ	1 set
Supply Ability	20 sets per Month
Shipping port	Qingdao port, Shandong, China
Packing details	Fumigation-free wooden case outside, stretch film inner
Relevant spare parts	free, delivery with processing line
Guarantee	Within 12 months
Oversea service	Provide installation and commissioning after machine arrived your factory
Payment terms	30% is paid by T/T as the down payment, 70% is paid by T/T or L/C before shipment.
Delivery time	30 days after receipt the deposit
Pre-shipment	When it finished, we will invite you to our company to inspect machines, when no problem, we will arrange the shipment

FAQ:
1. How about the documents after shipment?
After shipment, we'll send all original documents to you by DHL/TNT, including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.
2. How long is the delivery time?
For standard machines, it would be20-30 days; For non-standard machines and customized machines according to client's specific requirements, it would be 30-45 days.
3. Do You Arrange Shipment For The Machines?
Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you. For EXW price, clients need to arrange shipment by themselves or their agents.
4. How is the packing?
Water-proof plastic film package with foam protection in each corner Solid Seaworthy Wood Box Package with Steel Belt Save space as much as possible for container loading
